Description

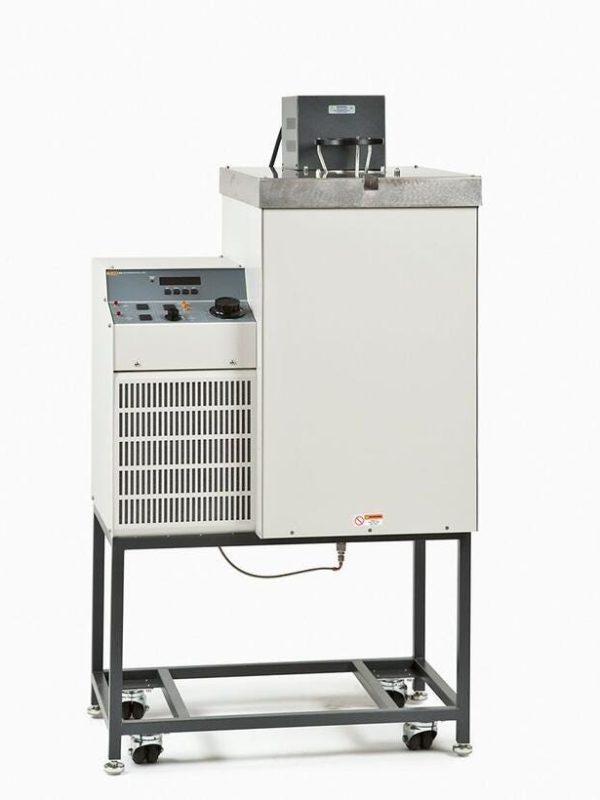

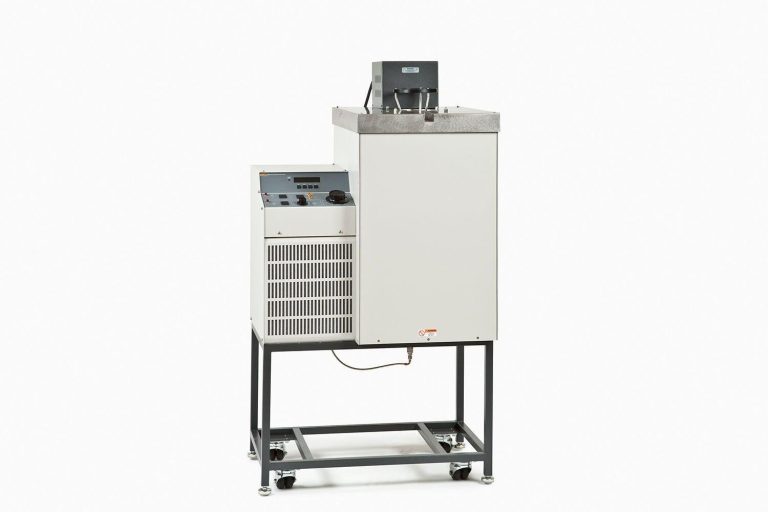

The Fluke 6054/6055/7007 Deep-Well Baths offer precise temperature control for a variety of applications. With a temperature range of –5 °C to 110 °C, these baths are ideal for calibration and testing of temperature sensors.

Featuring 304 stainless steel wetted parts, these baths provide durability and resistance to corrosion.

Fluke 6054/6055/7007 Key Features

The Fluke 6054/6055/7007 Deep-Well Baths boast a range of key features, including:

Temperature Range: –5 °C to 110 °C
Temperature Stability: ± 0.001 °C at 0 °C (water/ethanol), ± 0.001 °C at 25 °C (water), ± 0.003 °C at 100 °C (oil 5012)
Temperature Uniformity: ± 0.004 °C at 0 °C (ethanol), ± 0.007 °C at 100 °C (oil 5012)
Temperature Setting: Digital display with push-button data entry
Set-Point Resolution: 0.002 °C, high res. 0.00003 °C
Display Temperature Resolution: 0.01 °C
Digital Setting Accuracy: ± 1 °C
Digital Setting Repeatability: ± 0.005 °C
Heaters: 250 to 1000 W
Working Area: 178 mm dia. (7 in)
Depth: 24 in
Wetted Parts: 304 stainless steel
Power: 230 V ac (± 10 %), 50 or 60 Hz, 15 A (Specify frequency, contact Fluke Calibration if CE mark required.)
Volume: 42 liters (11.2 gal)
Size (D x W x H): 470 x 775 x 194 mm to working surface (18.5 x 30.5 x 47 in), 1397 mm (55 in) to top of stir motor, 914 mm (36 in) to control panel
Distance from Line of Sight to Top of Fluid: 9.5 mm (3/8 in)
Automation: Use the 1586A Super-DAQ to automate temperature sensor calibration. For IEEE-488, add the 2001-IEEE to the automation package
Weight: 70.8 kg (156 lb)

Who Needs the Fluke 6054/6055/7007?

The Fluke 6054/6055/7007 Deep-Well Baths are ideal for technicians, engineers, and buyers who require precise temperature control for calibration and testing of temperature sensors.

Fluke 6054/6055/7007 Applications

Temperature Sensor Calibration: Use the Fluke 6054/6055/7007 Deep-Well Baths for precise temperature control during calibration and testing of temperature sensors.
Material Testing: The Fluke 6054/6055/7007 Deep-Well Baths are suitable for material testing, where precise temperature control is required.
Research and Development: The Fluke 6054/6055/7007 Deep-Well Baths are ideal for research and development applications, where precise temperature control is necessary.
Quality Control: The Fluke 6054/6055/7007 Deep-Well Baths are suitable for quality control applications, where precise temperature control is required.
Education and Training: The Fluke 6054/6055/7007 Deep-Well Baths are ideal for educational institutions and training centers, where students can learn about precise temperature control.

Why Buy Fluke 6054/6055/7007 from mme-ae?

At mme-ae, we offer the Fluke 6054/6055/7007 Deep-Well Baths at competitive prices, with fast shipping and excellent customer service. Our team of experts is always available to assist you with any questions or concerns you may have.

Fluke 6054/6055/7007 Specifications

	7007	6054	6055
Range	–5 °C to 110 °C	50 °C to 300 °C	200 °C to 550 °C
Temperature Stability	± 0.001 °C at 0 °C (water/ethanol) ± 0.001 °C at 25 °C (water) ± 0.003 °C at 100 °C (oil 5012)	± 0.003 °C at 100 °C (oil 5012) ± 0.005 °C at 300 °C (oil 5017)	± 0.003 °C at 200 °C (salt) ± 0.01 °C at 550 °C (salt)
Temperature Uniformity	± 0.004 °C at 0 °C (ethanol) ± 0.007 °C at 100 °C (oil 5012)	± 0.007 °C at 100 °C (oil 5012) ± 0.015 °C at 300 °C (oil 5017)	± 0.005 °C at 200 °C (salt) ± 0.010 °C at 550 °C (salt)
Temperature Setting	Digital display with push-button data entry
Set-Point Resolution	0.002 °C, high res. 0.00003 °C	0.01 °C, high res. 0.00018 °C
Display Temperature Resolution	0.01 °C
Digital Setting Accuracy	± 1 °C
Digital Setting Repeatability	± 0.005 °C	± 0.01 °C
Heaters	250 to 1000 W	250 to 1000 W	260 to 2080 W
Working Area	178 mm dia. (7 in)	196 mm dia. (7.7 in)	107 mm dia. (4.2 in)
Depth	24 in	24 in	24 in
Wetted Parts	304 stainless steel
Power	230 V ac (± 10 %), 50 or 60 Hz, 15 A (Specify frequency, contact Fluke Calibration if CE mark required.)	230 V ac (± 10 %), 50/60 Hz, 15 A max	230 V ac (± 10 %), 50/60 Hz, 15 A
Volume	42 liters (11.2 gal)	50 liters (13.2 gal)	19.8 liters (5.2 gal, 43 kg [95 lb] of bath salt)
Size (D x W x H)	470 x 775 x 194 mm to working surface (18.5 x 30.5 x 47 in), 1397 mm (55 in) to top of stir motor, 914 mm (36 in) to control panel	572 x 762 x 1219 mm to working surface (22.5 x 30 x 48 in), 1422 mm (56 in) to top of stir motor box, 914 mm (36 in) to control panel	572 x 775 x 1219 mm to working surface (22.5 x 30.5 x 48 in), 1524 mm (60 in) to top of stir motor box, 914 mm (36 in) to control panel
Distance from Line of Sight to Top of Fluid	9.5 mm (3/8 in)	15.9 mm (5/8 in)
Automation	Use the 1586A Super-DAQ to automate temperature sensor calibration. For IEEE-488, add the 2001-IEEE to the automation package.
Weight	70.8 kg (156 lb)
