Fluke 62 MAX+/323/1AC IR, Clamp & Volt Kit

Q: What is in the Fluke 62 MAX+/323/1AC kit?

The Fluke 62 MAX+ infrared thermometer, the Fluke 323 true-rms clamp meter, the Fluke 1AC II non-contact voltage detector and a C115 soft case. The Fluke part number is 4296076.

Q: What current can the Fluke 323 in this kit measure?

The Fluke 323 measures up to 400 A AC with ±2 % ±5 digits accuracy from 45 to 65 Hz. It does not measure DC current.

Q: What temperature range does the 62 MAX+ cover?

-30 °C to 650 °C, with ±1.0 °C or ±1.0 % accuracy (whichever is greater), a 12:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.00.

Q: Can the 323 measure voltage and resistance?

Yes. It reads 600 V AC and 600 V DC, resistance up to 4000 Ω and has a continuity beeper that sounds at 70 Ω or less.

Q: What voltage does the 1AC II detect?

The 1AC II detects 90 to 1000 V AC without touching the conductor. Its VoltBeat self-test shows that it is working and it is rated CAT IV 1000 V.

Q: What are the safety ratings?

The 323 clamp meter is rated CAT III 600 V / CAT IV 300 V. The 1AC II voltage detector is rated CAT IV 1000 V.

Q: Is the 62 MAX+ suitable for dusty sites?

Yes. It is IP54 rated against dust and water and drop tested to 3 metres.

Q: Who is this kit for?

Electricians, HVAC and facility maintenance technicians who need to check for live voltage, measure load current and find hot spots on breakers, motors and connections with one set of tools.

Q: Can I buy the tools separately?

Yes. The Fluke 62 MAX+ is also sold on its own. For a digital multimeter with the same clamp, see the Fluke 117/323 or 116/323 kits.

Description

Fluke 62 MAX+/323/1AC Thermometer, Clamp Meter and Voltage Detector Kit

The Fluke 62 MAX+/323/1AC kit (Fluke P/N 4296076) puts three everyday tools in one soft case: the Fluke 62 MAX+ infrared thermometer, the Fluke 323 true-rms clamp meter and the Fluke 1AC II non-contact voltage detector. With it you can check that a circuit is live, measure load current up to 400 A AC and scan breakers, cables and motors for hot spots from a safe distance.

Key Features

62 MAX+: -30 °C to 650 °C, ±1.0 °C or ±1.0 %, dual lasers, 12:1
62 MAX+: IP54 dust and water resistant, 3 m drop tested
323: true-rms clamp, 400 A AC, 600 V AC/DC, resistance to 4000 Ω
323: continuity beeper, 30 mm jaw, CAT III 600 V / CAT IV 300 V
1AC II: non-contact detection of 90 to 1000 V AC, VoltBeat self-test, CAT IV 1000 V
All three tools stored in the Fluke C115 soft case

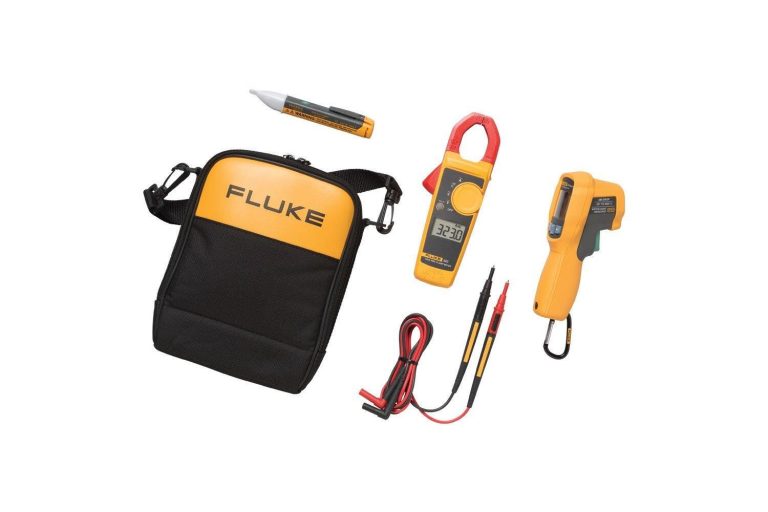

What’s in the Kit

Fluke 62 MAX+/323/1AC kit contents
Fluke 62 MAX+	Infrared thermometer, -30 °C to 650 °C, dual lasers, 12:1
Fluke 323	True-rms clamp meter, 400 A AC, 600 V AC/DC
Fluke 1AC II	VoltAlert non-contact voltage detector, 90 to 1000 V AC
Fluke C115	Soft carrying case
Fluke part number	4296076

Fluke 62 MAX+ Infrared Thermometer Specifications

Fluke 62 MAX+ specifications (Fluke data)
Temperature range	-30 °C to 650 °C (-22 °F to 1202 °F)
Accuracy	±1.0 °C or ±1.0 % of reading, whichever is greater (±2.0 °C from -10 °C to 0 °C; ±3.0 °C from -30 °C to -10 °C)
Response time	<300 ms
Spectral response	8 to 14 µm
Emissivity	0.10 to 1.00, adjustable
Distance to spot	12:1
Display resolution	0.1 °C
Laser	Dual lasers
Protection	IP54 dust and water resistant, 3 m drop tested
Power	1 × AA battery, about 8 hours with laser and backlight on
Weight	255 g

Fluke 323 Clamp Meter Specifications

Fluke 323 specifications (Fluke data)
AC current	400.0 A, ±2 % ±5 digits (45-65 Hz)
AC voltage	600.0 V, ±1.5 % ±5 digits
DC voltage	600.0 V, ±1.0 % ±5 digits
Resistance	400.0 Ω / 4000 Ω
Continuity	Beeper at ≤70 Ω
Measurement	True-rms on AC current and voltage
Jaw opening	30 mm
Safety rating	CAT III 600 V / CAT IV 300 V
Weight	265 g

Fluke 1AC II Voltage Detector Specifications

Fluke 1AC II specifications (Fluke data)
Detection range	90 to 1000 V AC
Indication	Red tip glows and beeper sounds when voltage is found
VoltBeat	Self-test shows the detector is working
Safety rating	CAT IV 1000 V

Typical Applications

Checking panels and outlets for live voltage before work starts
Measuring load current on feeders, motors and AC units
Finding hot breakers, loose lugs and overloaded cables
Checking supply and return air temperatures on HVAC systems
Daily facility maintenance rounds

Related Kits and Accessories

Fluke 62 MAX+ infrared thermometer (sold alone)
Fluke 62 MAX+/T+PRO/1AC kit with a T+PRO voltage and continuity tester
Fluke T5-600/62 MAX+/1AC II kit
Fluke 117/323 electricians combo kit and Fluke 116/323 HVAC combo kit
Fluke C115 soft meter case

Need a thermal image instead of a spot reading? See the Fluke TiS75+ thermal camera. Browse all infrared thermometers, clamp meters, voltage detectors and more Fluke products. Read our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke 62 MAX+/323/1AC Kit FAQ

What is in the Fluke 62 MAX+/323/1AC kit?

The Fluke 62 MAX+ infrared thermometer, the Fluke 323 true-rms clamp meter, the Fluke 1AC II non-contact voltage detector and a C115 soft case. The Fluke part number is 4296076.

What current can the Fluke 323 in this kit measure?

The Fluke 323 measures up to 400 A AC with ±2 % ±5 digits accuracy from 45 to 65 Hz. It does not measure DC current.

What temperature range does the 62 MAX+ cover?

-30 °C to 650 °C, with ±1.0 °C or ±1.0 % accuracy (whichever is greater), a 12:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.00.

Can the 323 measure voltage and resistance?

Yes. It reads 600 V AC and 600 V DC, resistance up to 4000 Ω and has a continuity beeper that sounds at 70 Ω or less.

What voltage does the 1AC II detect?

The 1AC II detects 90 to 1000 V AC without touching the conductor. Its VoltBeat self-test shows that it is working and it is rated CAT IV 1000 V.

What are the safety ratings?

The 323 clamp meter is rated CAT III 600 V / CAT IV 300 V. The 1AC II voltage detector is rated CAT IV 1000 V.

Is the 62 MAX+ suitable for dusty sites?

Yes. It is IP54 rated against dust and water and drop tested to 3 metres.

Who is this kit for?

Electricians, HVAC and facility maintenance technicians who need to check for live voltage, measure load current and find hot spots on breakers, motors and connections with one set of tools.
