Description

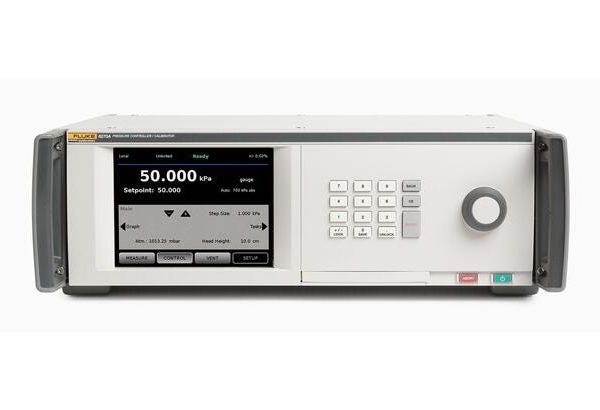

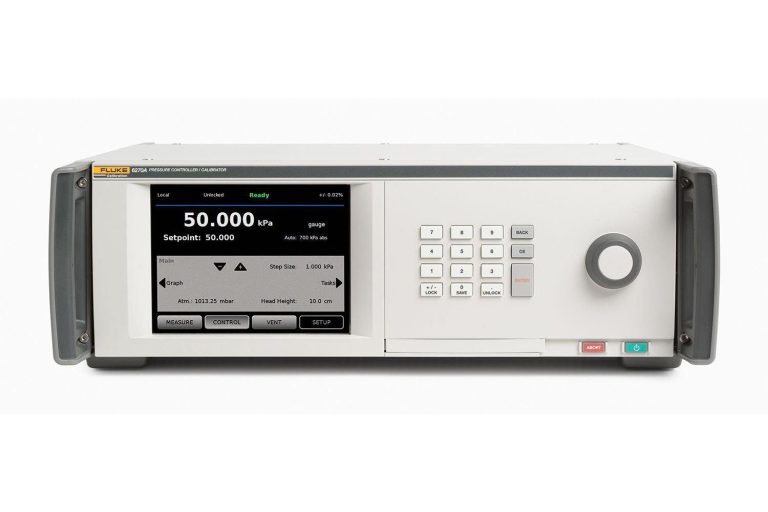

The Fluke 6270A Pressure Controller / Calibrator is a high-precision instrument designed for industrial and laboratory applications. With its advanced control precision and turndown options, it provides accurate and reliable control of pressure systems.

Available from MME, this instrument features a compact and rugged design, making it suitable for harsh environments. Its easy interface and communication options, including IEEE 488.2, Ethernet, RS232, and USB, ensure seamless integration with existing systems.

Fluke 6270A Key Features

The Fluke 6270A boasts a range of impressive features, including:

Control precision (dynamic mode): ± 0.005% range PM200-BG2.5K, ± 0.002% range PM500, and ± 0.001% range for all other ranges.
Control turndown: 1: 10:1 (typical) with a low control point of 1 kPa (0.15 psi) absolute.
Supply pressure requirements: Clean dry N2 or air – Industrial grade nitrogen, 99.5 %+ Particulate contamination: ≤ 1.25 micrometer (50 microinches).
Vibration: MIL-T-28800E.
Altitude (operation): < 2000 m.
Ingress protection: IEC 60529: IP20.
Safety: IEC 61010-1, Installation Category II, Pollution degree 2.
Weight: 13 kg (28.5 lbs).
Dimensions: Height: 147 mm (5.78 in), Width: 454 mm (17.79 in), Depth: 488 mm (19.2 in).

Who Needs the Fluke 6270A?

The Fluke 6270A is designed for technicians, engineers, and buyers who require high-precision pressure control and calibration in industrial and laboratory settings. Its advanced features and reliable performance make it an ideal choice for applications where accuracy and precision are paramount.

Fluke 6270A Applications

Use in industrial processes: The Fluke 6270A is suitable for use in various industrial processes, including oil and gas, chemical, and power generation.
Calibration of pressure instruments: The instrument’s high accuracy and reliability make it an ideal choice for calibration of pressure instruments.
Research and development: The Fluke 6270A is suitable for use in research and development applications where high-precision pressure control is required.
Quality control: The instrument’s advanced features and reliable performance make it an ideal choice for quality control applications.
Testing and validation: The Fluke 6270A is suitable for use in testing and validation applications where high-precision pressure control is required.
Other applications: The instrument’s versatility makes it suitable for use in other applications where high-precision pressure control is required.

Why Buy Fluke 6270A from mme-ae?

At mme-ae, we offer the Fluke 6270A as a high-quality pressure controller and calibrator designed for industrial and laboratory applications. With its advanced features and reliable performance, it provides accurate and reliable control of pressure systems. Our team of experts is available to provide support and assistance to ensure seamless integration with existing systems.

Fluke 6270A Specifications

General specifications
Power requirements	100 V ac to 240 V ac, 47 Hz to 63 Hz
Fuse	T2A 250 V ac
Max power consumption	100 W
Operating ambient temperature range	15 °C to 35 °C
Storage temperature	-20 °C to 70 °C
Relative humidity	Operating: <80 % to 30 °C, <70 % to 40 °C, <40 % to 50 °C
Relative humidity	Storage: <95 %, non-condensing. A power stabilization period of four days may be required after extended storage at high temperature and humidity.
Vibration	MIL-T-28800E
Altitude (operation)	<2000 m
Ingress protection	IEC 60529: IP20
Safety	IEC 61010-1, Installation Category II, Pollution degree 2
Weight (Chassis only)	13 kg (28.5 lbs)
Dimensions	Height: 147 mm (5.78 in)
	Width: 454 mm (17.79 in)
	Depth 488 mm (19.2 in)
Rack mount dimensions	3U-19 inch rack
Warm up time	15 minutes after power up or module installation, when items previously stored within Operating Ambient Temperature Range.
Calibration	ISO/IEC 17025 accreditation
Control specifications
Control precision (dynamic mode)	PM200-BG2.5K range ± 0.005% range PM500, ranges ≤ 20 kPa (80 inH20) ± 0.002% range All other ranges ± 0.001% range
Control turndown¹	10:1 (typical)
Low control point	1 kPa (0.15 psi) absolute
Supply pressure requirements
Clean dry N2 or air – Industrial grade nitrogen, 99.5 %+
Particulate contamination	≤ 1.25 micrometer (50 microinches)
Maximum moisture content	-50 °C dew point
Maximum hydrocarbon content	30 ppm
Vacuum supply requirements (when operating near or sub-atmospheric)
>50 liters per minute capacity with Auto Vent feature
Appropriate protections for High Pressure Gauge work system exhaust gas will pass through the Vacuum supply system.
Interface/communications
Primary remote interfaces	IEEE 488.2, Ethernet, RS232, USB
System connection	Supports interconnection of two or three systems
Switch test connection	Standard 4 mm jack: Nominal 24 v dc isolated drive Maximum 30 V dc w.r.t. chassis ground
Aux drivers	4 external solenoid drivers 24 V dc drive (maximum drive 6 W continuous per channel)
¹ Control turndown is defined as the relationship between the provided supply pressure and the appropriate supply pressure for the range. For example, a unit with a 7 MPa (1000 psi) and 700 kPa range (100 psi) with a supply pressure of 7.7 MPa (1100 psi) will provide control precision of 0.001% range because 7 MPa is 10 times greater than 700 kPa. A system with ranges of 20 MPa (3000 psi) and 700 kPa (100 psi) with supply pressure of 22 MPa (3300 psi) will have 0.001% range control precision on the 20 MPa range but only 0.003% control precision on the 700 kPa range. Control precision of 0.001% on the low range can be achieved by reducing the supply pressure.
