Description

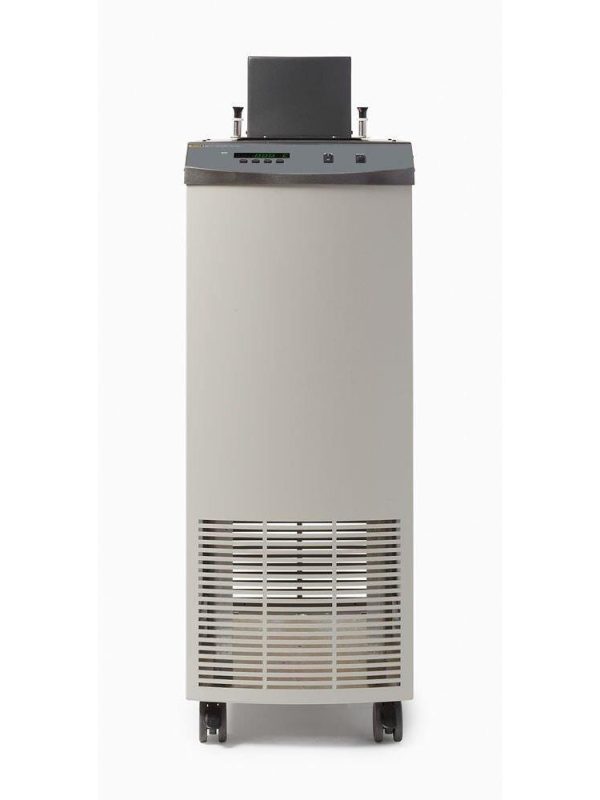

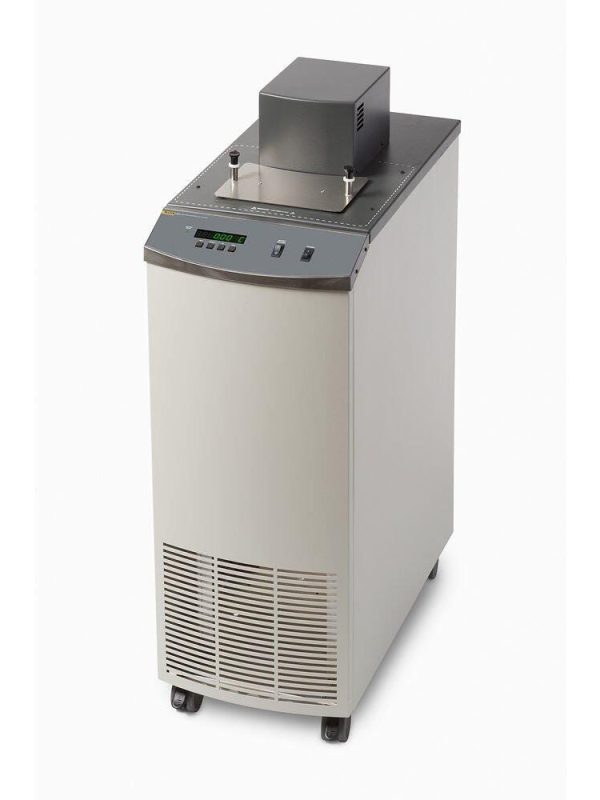

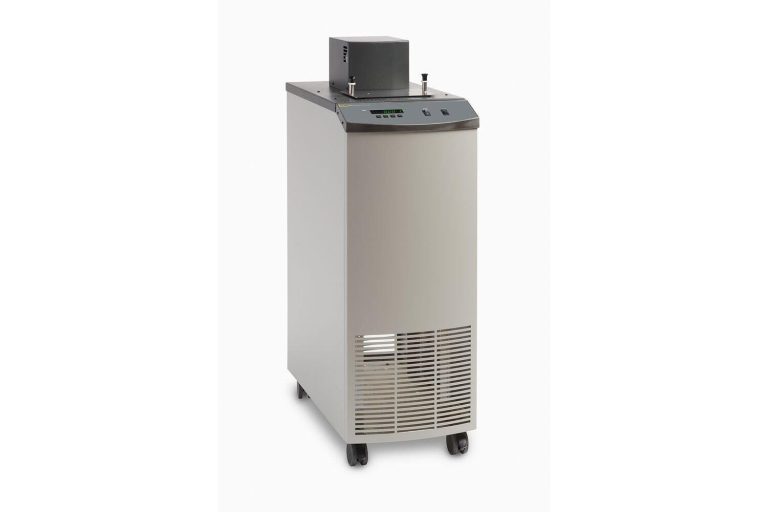

The Fluke 6331/7341/7381 Deep-Well Compact Baths offer precise temperature control for a variety of applications. With a range of 35 °C to 300 °C, –45 °C to 150 °C, and –80 °C to 110 °C, these baths are ideal for use in laboratories, research facilities, and industrial settings.

Each bath features a digital display with push-button data entry, allowing for easy temperature setting and control. The Fluke 6331/7341/7381 also boast high-resolution display resolution and digital setting accuracy of ±1°C.

Fluke 6331/7341/7381 Key Features

The Fluke 6331/7341/7381 Deep-Well Compact Baths offer a range of key features, including:

Range: 35 °C to 300 °C, –45 °C to 150 °C, –80 °C to 110 °C
Stability: ±0.007 °C, ±0.005°C, ±0.006°C
Uniformity: ±0.007 °C, ±0.007 °C, ±0.007 °C
Heating Time: 130 minutes, 120 minutes, 60 minutes
Cooling Time: 14 hours, 130 minutes, 210 minutes
Temperature Setting: Digital display with push-button data entry
Set-Point Resolution: 0.01°; 0.00018° in high-resolution mode
Display Resolution: 0.01°
Digital Setting Accuracy: ±1°C
Digital Setting Repeatability: ±0.01°C

Who Needs the Fluke 6331/7341/7381?

The Fluke 6331/7341/7381 Deep-Well Compact Baths are ideal for use in a variety of applications, including:

Research and development laboratories

Industrial settings

Quality control and assurance

Materials science and engineering

Chemical and pharmaceutical industries

Fluke 6331/7341/7381 Applications

Temperature calibration and control for precision instruments and equipment
Material testing and characterization for research and development
Quality control and assurance for industrial processes
Materials science and engineering research and development
Chemical and pharmaceutical industries research and development
Biotechnology and life sciences research and development

Why Buy Fluke 6331/7341/7381 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 6331/7341/7381 Deep-Well Compact Baths at competitive prices, with fast shipping and excellent customer service. Our experienced team is dedicated to helping you find the right solution for your temperature control needs.

Fluke 6331/7341/7381 Specifications

Specifications
Range	6331 35 °C to 300 °C 7341 –45 °C to 150 °C 7381 –80 °C to 110 °C
Stability	6331 ±0.007 °C at 100 °C (oil 5012) ±0.010 °C at 200 °C (oil 5017) ±0.015 °C at 300 °C (oil 5017) 7341 ±0.005°C at –45°C (ethanol) ±0.005°C at 25°C (water) ±0.007°C at 150°C (oil 5012) 7381 ±0.006°C at –80°C (ethanol) ±0.005°C at 0°C (ethanol) ±0.005°C at 100°C (oil 5012)
Uniformity	6331 ±0.007 °C at 100 °C (oil 5012) ±0.017 °C at 200 °C (oil 5017) ±0.025 °C at 300 °C (oil 5017) 7341 ±0.007 °C at –45 °C (ethanol) ±0.007 °C at 25 °C (water) ±0.010 °C at 150 °C (oil 5012) 7381 ±0.007 °C at –80 °C (ethanol) ±0.007 °C at 0 °C (ethanol) ±0.007 °C at 100 °C (oil 5012)
Heating Time†	6331 130 minutes, from 40 °C to 300 °C (oil 5017) 7341 120 minutes, from 25 °C to 150 °C (oil 5012) 7381 60 minutes, from 25 °C to 100 °C (oil 5012)
Cooling Time†	6331 14 hours, from 300 °C to 100 °C (oil 5017) 7341 130 minutes, from 25°C to –45°C (ethanol) 7381 210 minutes, from 25 °C to –80 °C (ethanol)
Stabilization Time	15–20 minutes
Temperature Setting	Digital display with push-button data entry
Set-Point Resolution	0.01°; 0.00018° in high-resolution mode
Display Resolution	0.01°
Digital Setting Accuracy	±1°C
Digital Setting Repeatability	±0.01°C
Access Opening	120 x 172 mm (4.7 x 6.8 in)
Depth	457 mm (18 in) without Liquid-in-Glass Thermometer Cal Kit 482 mm (19 in) with Liquid-in-Glass Thermometer Cal Kit
Wetted Parts	304 stainless steel
Power†	6331 115 VAC (±10 %), 50/60 Hz, 14.8 A or 230 VAC (±10 %), 50/60 Hz, 7.4 A, specify 7341 115 VAC (±10 %), 60 Hz, 16 A or 230 VAC (±10 %), 50 Hz, 8 A, specify 7381 230 VAC (±10 %), 50 or 60 Hz, specify, 10 A
Volume	15.9 liters (4.2 gal)
Size (HxWxD)	1067 x 356 x 788 mm (940 mm from floor to tank access opening) [42 x 14 x 31 in (37 in from floor to tank access opening)]
Weight	6331 41 kg (90 lb.) 7341 68 kg (150 lb.) 7381 91 kg (200 lb.)
Automation	Use the 1586A Super-DAQ to automate temperature sensor calibration
	†Rated at nominal 115 V (or optional 230 V)
