Description

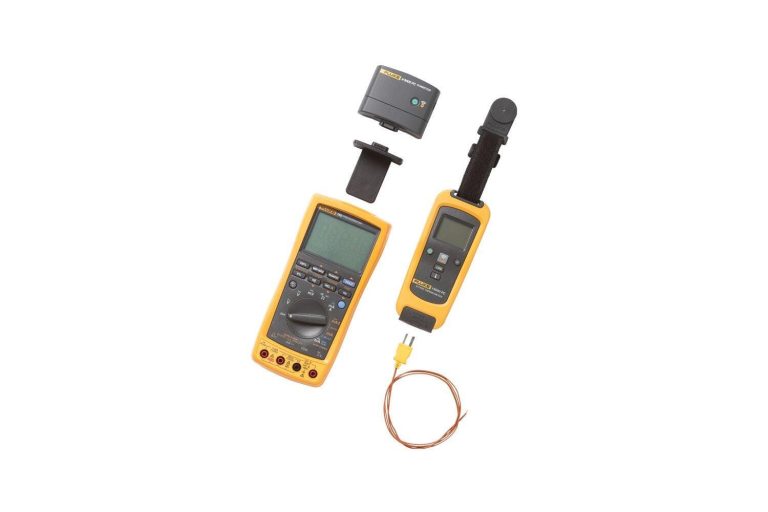

The Fluke 789 FC ProcessMeter and Temperature Kit is designed for industrial applications, providing accurate measurements and reliable performance. With its advanced features and durable construction, this kit is ideal for technicians and engineers who require precise measurements in harsh environments.

Whether you’re working in a factory, power plant, or other industrial setting, the Fluke 789 FC ProcessMeter and Temperature Kit is the perfect tool for the job.

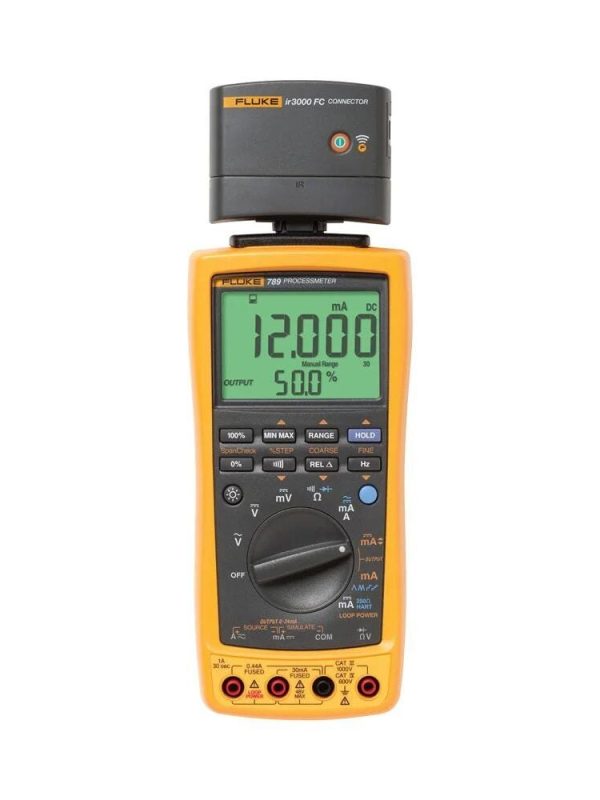

Fluke 789 FC ProcessMeter Key Features

The Fluke 789 FC ProcessMeter and Temperature Kit features a range of advanced measurement capabilities, including current measurement, voltage measurement, and resistance measurement.

Current measurement with 0.2% + 2 LSD (DC) accuracy
Range: 0-30 mA with 0.001 mA resolution
Current sourcing with 0.05% of span drive capability
Continuity beeps for resistance < 100 Ω
Voltage measurement with 0.1% Rdg + 1 LSD (V DC) accuracy
Resistance measurement up to 40 MΩ with 0.2% + 1 LSD accuracy
Diode test with 2.0 V shoes diode voltage drop

Who Needs the Fluke 789 FC ProcessMeter?

The Fluke 789 FC ProcessMeter and Temperature Kit is designed for technicians and engineers who require precise measurements in harsh environments. Whether you’re working in a factory, power plant, or other industrial setting, this kit is the perfect tool for the job.

With its advanced features and durable construction, the Fluke 789 FC ProcessMeter and Temperature Kit is ideal for a range of applications, including:

Fluke 789 FC ProcessMeter Applications

Process control and monitoring
Power plant and industrial applications
Factory and manufacturing settings
Research and development environments
Quality control and testing
Electrical and mechanical engineering
Automotive and aerospace industries

Why Buy the Fluke 789 FC ProcessMeter from mme-ae?

At mme-ae, we offer the Fluke 789 FC ProcessMeter and Temperature Kit at competitive prices, with fast shipping and excellent customer service. Our team of experts is always available to answer any questions you may have and provide support with your purchase.

Fluke 789 FC ProcessMeter Specifications

Specifications
Current measurement	Range	0-1 A AC or DC
	Resolution	1 mA
	Accuracy	0.2% + 2 LSD (DC)
	Range	0-30 mA
	Resolution	0.001 mA
	Accuracy	0.05% + 2 lSD
Current sourcing	Range	0-20 mA or 4-20 mA
	Resolution	0.05% of span
	Drive capability	24 V Compliance or 1200 Ω @ 20 mA
Frequency	to 19.999 kHz, 0.005% + 1 LSD
Continuity	Beeps for resistance < 100 Ω
Voltage measurement	Range	0-1000 V AC (true-rms) or DC
	Resolution	0.1 mV to 1.0 V
	Accuracy	0.1% Rdg + 1 LSD (V DC)
Resistance measurement	to 40 MΩ, 0.2% + 1 LSD
Diode test	2.0 V shoes diode voltage drop
Display current and % of span	Yes
Auto Step, Auto Ramp	Yes
Environmental Specifications
Operating temperature	-20°C to 55°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C
Temperature coefficient	0.05 x (specified accuracy) per °C (for temperatures 28°C)
Safety Specifications
Electrical safety	Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category	IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V
Maximum voltage	1000 V RMS
Mechanical and General Specifications
Size (H x W x L)	50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight	610 g (1.6 lbs)
Batteries	4 AA alkaline batteries
Warranty	3 years
Battery life	140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration	Random, 2 g, 5-500 Hz 1 meter drop test
