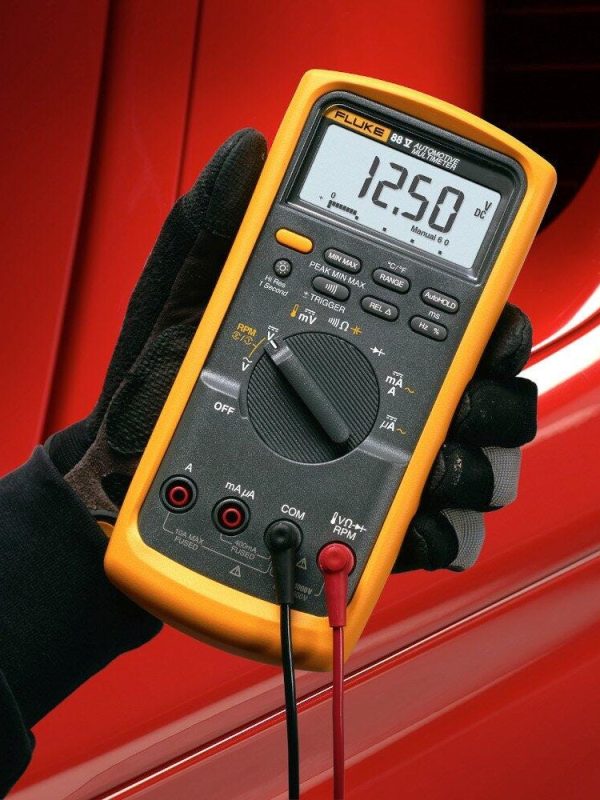

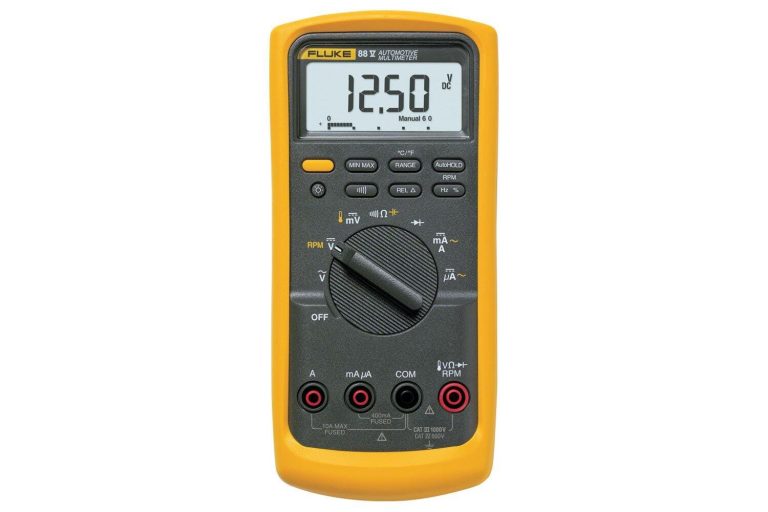

Fluke 88V Deluxe Automotive Multimeter
Short Description:
The Fluke 88V Deluxe Automotive Multimeter, troubleshooting features, and accuracy levels are needed to solve problems on conventional and hybrid vehicles.
Product purchase
Call for Best Price 00971(04) 447 6031 00971(04) 344 9868
19
People watching this product now!
Terms of sending goods ›
Description
fluke 88v automotive multimeter
The Fluke 88v multimeter has measurement functions, troubleshooting features, and accuracy levels needed to solve problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke.
In addition to standard multimeter features such as the ability to measure voltage, current, continuity, and resistance, the 88V can perform:
- Pulse width
- Duty cycle
- Min/Max/Average recording
- Diode tests
The pulse width function provides millisecond resolution for troubleshooting fuel injectors.
Automotive measurements
The fluke multimeter automotive 88V can take care of many automotive needs, getting into more of the digital multimeters measurement capabilities – it can measure voltage up to 1000 V AC and DC, current up to 10 A, 20 A for up to 30 seconds, and frequency to 200 kHz and % duty cycle.
Add those features to RPM measurements with optional inductive pickup and millisecond pulse width measurements for fuel injectors to name a few. The 88V comes packed with the functions you need:
- Temperature measurements with optional temperature probe
- The analog bar graph to track changing or unstable signals
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
- Peak Min/Max to record transients as fast as 250 μs
- 88V multimeter designed for the garage

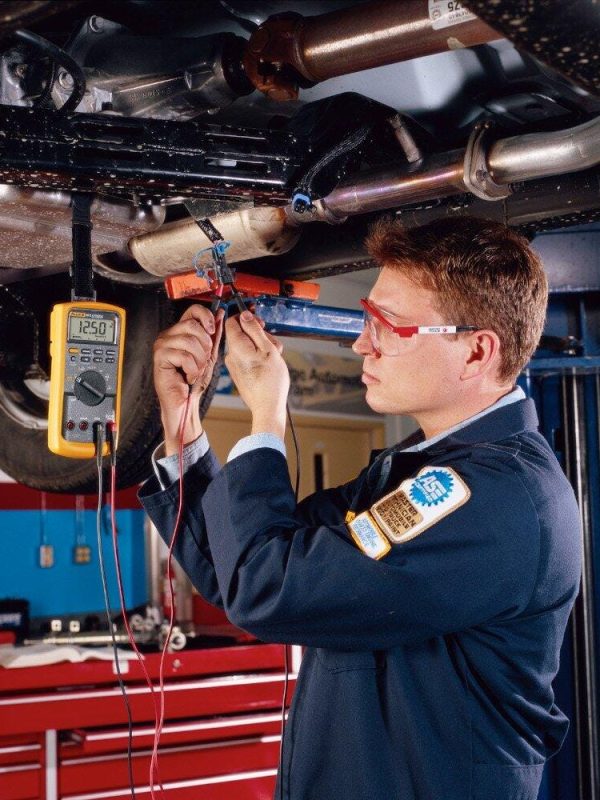

While working in a garage, the large display digits can help you focus on the vehicle while still being able to read the numbers. Plus, the two-level bright white backlight offers the additional visibility you may need.
An optional magnetic hanger lets you hang the meter from most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high-energy environments like those found on hybrid vehicles. The product is supported by a limited lifetime warranty.
Fluke Automotive Multimeter Similar Product
The Fluke 88V/A is an advanced multimeter for automotive use that shares many similarities with its predecessor, the Fluke 88V. Designed specifically for automotive professionals, the 88V/A offers a comprehensive set of features and capabilities to tackle a wide range of electrical and electronic troubleshooting tasks in vehicles.
Additional information
| Weight | 624 kg |
|---|---|
| Dimensions | 5.2 × 9.8 × 20.1 cm |
| AC voltage range/resolution/accuracy | |
| DC voltage range/resolution/Accuracy | |
| AC current range/resolution/Accuracy | |
| DC current range/resolution/Accuracy |
max A 10 A/0.001 mA/±(0.4%rdg+2dgt) |
| Conductance |
max C 60.00 nS/0.01 nS/±(1.0%rdg+10dgt) |
| Resistance Range/resolution/Accuracy |
max R 50 MΩ/0.1 Ω/±(0.4%rdg+1dgt) |
| Capacitance Range/resolution/Accuracy |
max C 9,999 µF/0.01 nF/±(1.0%rdg+2dgt) |
| Frequency range/resolution/Accuracy |
max F 200 KHz/0.01 Hz/±(0.005%rdg+1dgt) |
| Temperature range/resolution/ Accuracy |
-200.0°C – 1090°C |
| Dimensions |
5.2 x 9.8x 20.1 cm |
| Operating temperature |
-20°C – 55°C |
| Storage temperature |
-40°C – 60°C |
| Duty cycle |
√ |
| flashlight |
√ |
| Backlight |
√ |
Datasheet
Datasheet
Specifications
Specifications
Fluke 88V Technical Specifications
| DCV | |
|---|---|
| Maximum voltage | 1000 V |
| Accuracy | ±(0.1% + 1) |
| Best resolution | 0.01 mV |
| ACV | |
| Maximum voltage | 1000 V |
| Accuracy | ±(0.5% + 2) |
| AC bandwidth | 5 kHz |
| Best resolution | 0.01 mV |
| DC current | |
| Maximum amps | 10 A |
| Amps accuracy | ±(0.4% + 2) |
| Best resolution | 0.001 mA |
| AC current | |
| Maximum amps | 10 A |
| Amps accuracy | ±(1.2% + 2) |
| Best resolution | 0.001 mA |
| Resistance | |
| Maximum resistance | 50 MΩ |
| Accuracy | ±(0.4% + 1) |
| Best resolution | 0.1 Ω |
| Capacitance | |
| Maximum capacitance | 9,999 µF |
| Accuracy | ±(1% + 2) |
| Best resolution | 0.01 nF |
| Frequency | |
| Maximum frequency | 200 KHz |
| Accuracy | ±(0.005% + 1) |
| Best resolution | 0.01 Hz |
| Duty cycle | |
| Maximum duty cycle | 99.9% |
| Accuracy | within 2% per KHz + 0.1% |
| Best resolution | 0.1% |
| Temperature measurement | |
| Range | -200.0°C – 1090°C -328.0°F – 1994.0°F, 1.0% excluding probe |
| 80 BK temperature probe | -40°C – 260°C -40°F – 500°F, 2.2°C or 2% whichever is greater |
| Conductance | |
| Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) |
| Maximum resolution | 0.01 nS |
| Operating range | |
| Operating temperature | -20°C – 55°C |
| Storage temperature | -40°C – 60°C |
| Physical | |
| Dimensions | 5.2 x 9.8 x 20.1 cm (2.06 x 3.86 x 7.93 in) |
| Weight | 624 g (22 oz.) |
