Description

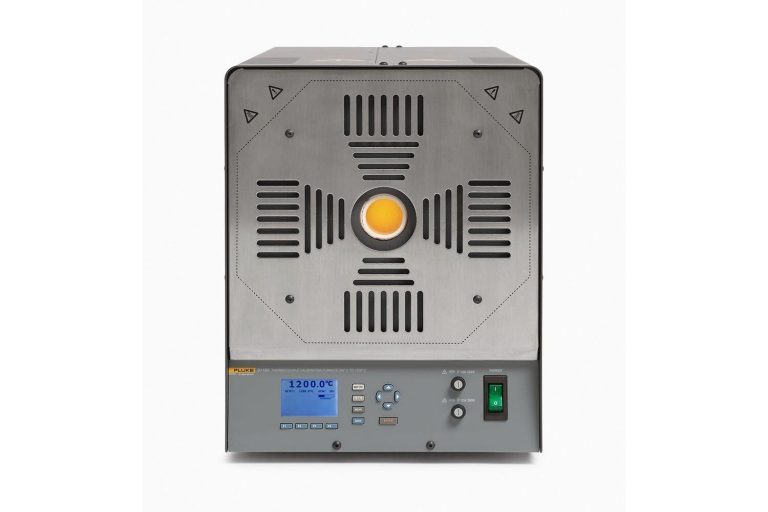

The Fluke 9118A Thermocouple Calibration Furnace is designed to provide precise temperature control for thermocouple calibration. With a wide temperature range of 300 °C to 1200 °C, this furnace is ideal for various applications.

Key features include a set-point accuracy of ± 5 °C, RS-232 and USB computer interface, and a monochrome LCD display with °C or °F user-selectable. The furnace also features 4000 watts at 230 V ac heater power and a 20 A, 250 V resettable circuit breaker.

Fluke 9118A Key Features

The Fluke 9118A offers a range of key features that make it an ideal choice for thermocouple calibration. These include:

Operating temperature: 5 °C to 40 °C.
Storage temperature: –20 °C to 70 °C.
Humidity: 80 % maximum for temperatures <31 °C, decreasing linearly to 50 % at 40 °C.
Altitude: <2,000 m (6,562 feet).
Power requirements: 230 V ac (±10 %), 50/60 Hz, 20 A.
Heater power: 4000 watts at 230 V ac.
Display: Monochrome LCD, °C or °F user-selectable.
Display resolution: 0.1 °C or °F.
Size: 400 mm x 337 mm x 700 mm (15.7 in x 13.3 in x 27.6 in).
Net weight: 29 kg (63.9 lb) without isothermal block.

Who Needs the Fluke 9118A?

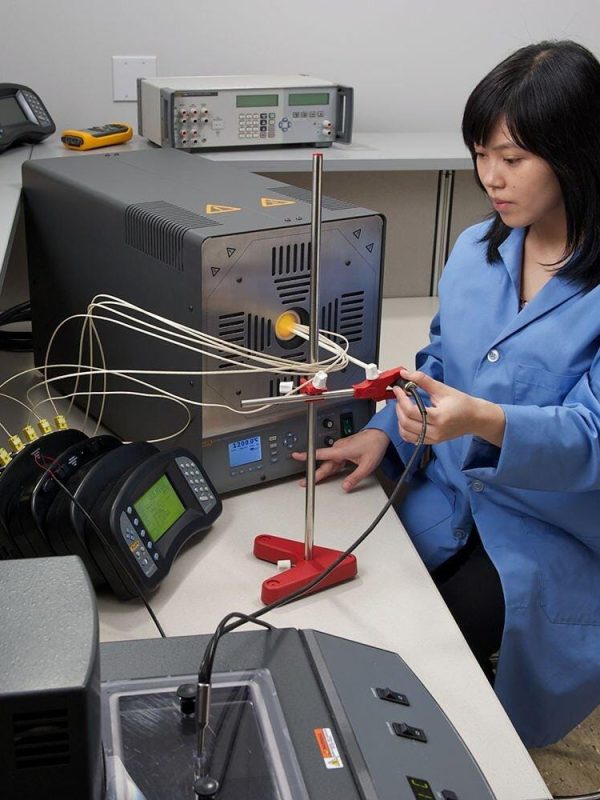

The Fluke 9118A Thermocouple Calibration Furnace is designed for technicians and engineers who require precise temperature control for thermocouple calibration. This furnace is ideal for various applications, including research and development, quality control, and manufacturing.

Fluke 9118A Applications

Use in research and development laboratories to calibrate thermocouples for various applications.
Use in quality control departments to ensure accurate temperature measurements.
Use in manufacturing facilities to calibrate thermocouples for process control.
Use in calibration laboratories to calibrate thermocouples for various applications.
Use in educational institutions to teach students about thermocouple calibration.

Why Buy Fluke 9118A from MME?

At MME, we offer the Fluke 9118A Thermocouple Calibration Furnace at competitive prices. Our team of experts is available to provide technical support and ensure that you receive the best possible service.

Fluke 9118A Specifications

General specifications
Operating conditions
Operating temperature	5 °C to 40 °C
Storage temperature	–20 °C to 70 °C
Humidity	80 % maximum for temperatures <31 °C, decreasing linearly to 50 % at 40 °C
Altitude	<2,000 m (6,562 feet)
Power requirements	230 V ac (±10 %), 50/60 Hz, 20 A
Heater power	4000 watts at 230 V ac
Over-current protection
System	20 A, 250 V resettable circuit breaker
Main heater fuse	F 12 A, 250 V
Zone heater fuse	F 12 A, 250 V
Computer interface	RS-232 and USB
Display	Monochrome LCD, °C or °F user-selectable
Display resolution	0.1 °C or °F
Size (H x W x L)	400 mm x 337 mm x 700 mm (15.7 in x 13.3 in x 27.6 in)
Net weight	29 kg (63.9 lb) without isothermal block

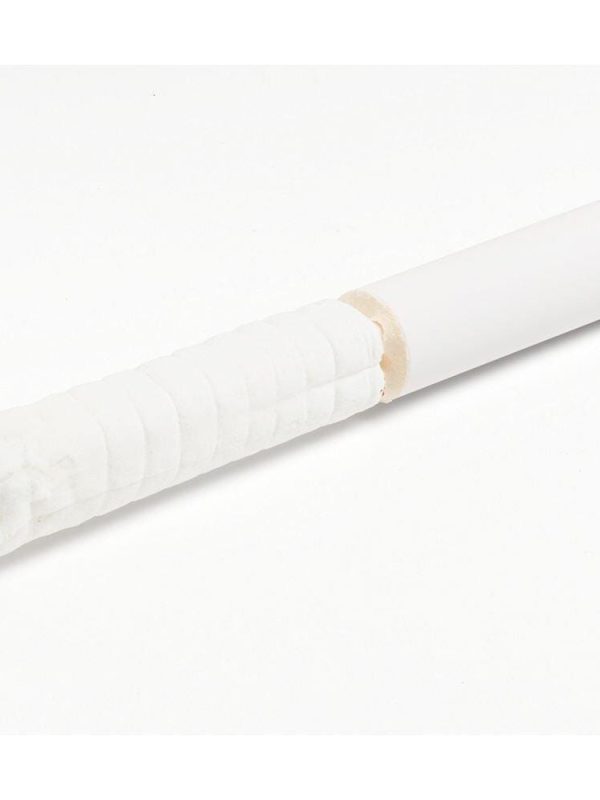

Isothermal block (optional)
Isothermal block construction	Alumina
Block outer diameter	37 mm (1.5 in)
Block length	380 mm (15.0 in)
Well diameter	(four wells total) 6.7 mm (0.26 in)
Well depth	365 mm (14.4 in)
Net weight	0.84 kg (1.9 lb) isothermal block only
Accuracy specifications
All accuracy specifications except temperature are for a period of 1 year after calibration, at 13 °C to 33 °C
The furnace can be used with or without an Isothermal Block installed. Unique calibration parameters are necessary for each configuration. Calibration does NOT come standard from the factory for each configuration. Ensure that the furnace has been properly calibrated for the desired mode of operation.
Furnace temperature range	300 °C to 1200 °C
Set-point accuracy	± 5 °C
