Description

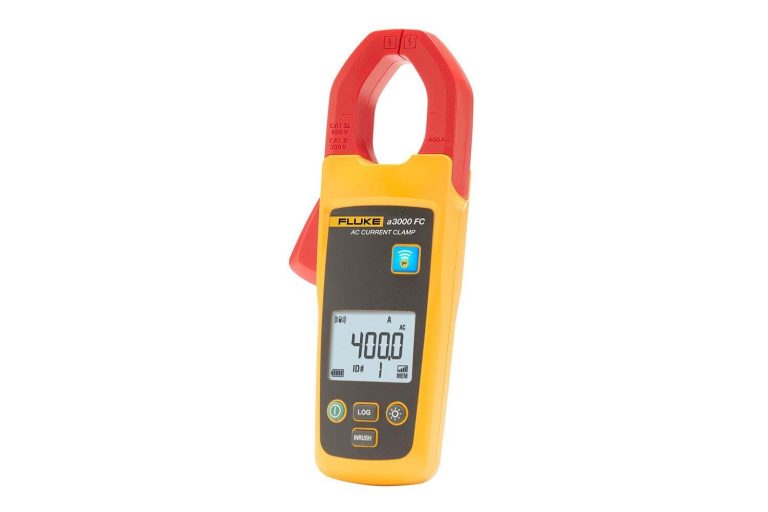

The Fluke a3000 FC Wireless AC Current Clamp Module is a versatile and reliable tool for measuring AC current in a variety of applications. With its wireless connectivity and long battery life, this module is perfect for technicians and engineers who need to measure current in hard-to-reach locations.

Whether you’re working on electrical panels, motors, or other equipment, the Fluke a3000 FC is a valuable addition to your toolkit.

Fluke a3000 FC Key Features

The Fluke a3000 FC Wireless AC Current Clamp Module offers a range of key features that make it an essential tool for any technician or engineer. These include:

0.5 A to 400.0 A measurement range
0.1 A resolution
2% ± 5 digits accuracy
400 hour battery life
65,000 reading memory
2.4 GHz RF communication

Who Needs the Fluke a3000 FC?

The Fluke a3000 FC Wireless AC Current Clamp Module is designed for technicians and engineers who need to measure AC current in a variety of applications. Whether you’re working on electrical panels, motors, or other equipment, this module is a valuable addition to your toolkit.

Fluke a3000 FC Applications

Electrical panel testing – Measure AC current in electrical panels to ensure they are functioning correctly.
Motor testing – Measure AC current in motors to diagnose issues and ensure they are running efficiently.
Equipment testing – Measure AC current in a variety of equipment, including generators, pumps, and compressors.
Power quality analysis – Measure AC current to analyze power quality and identify issues.
Electrical safety testing – Measure AC current to ensure electrical safety and compliance with regulations.

Why Buy Fluke a3000 FC from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke a3000 FC Wireless AC Current Clamp Module at a competitive price, with fast shipping and excellent customer service. Whether you’re a technician, engineer, or contractor, we have the tools and expertise you need to get the job done.

Fluke a3000 FC Specifications

Specifications
Range	0.5 A to 400.0 A
Resolution	0.1 A
Accuracy	400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz)
Inrush	Max displayed reading	999.9A
Crest factor (50 Hz/60 Hz)	3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2 % for C.F. > 2
LCD w/backlight	3½ digits
Log rate/interval	1 sec minimum/adjustable by PC
Battery type	2 AA, NEDA 15 A, IEC LR6
Battery life	400 hours
Memory	Record up to 65,000 readings
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
	Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Temperature coefficient	Add 0.1 x (specified accuracy) / °C ( 28°C)
Operating humidity	90% at 35°C 75% at 40°C 45% at 50°C
Altitude	Operating	2,000 m
	Storage	12,000 m
EMC	EN 61326-1:2006
Safety compliance	IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
Safety rating	CAT III 600 V
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating	IP30
Pollution Degree	2
Jaw opening	34 mm (1.33 in)
Size (HxWxD)	20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
Weight	.22 kg (8 oz)
Warranty	Three years
Note: Not compatible with Fluke CNX test tools
