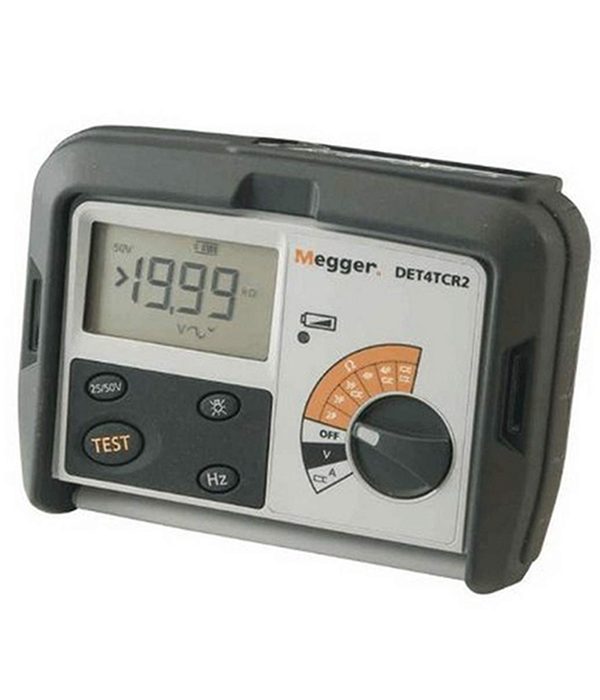

Megger DET4TR2 4-Terminal Ground Resistance & Soil Resistivity Tester

Megger DET4TR2 Overview

The Megger DET4TR2 runs on eight AA NiMH cells that recharge inside the instrument from the supplied AC/DC adaptor, so a crew can test all day and charge overnight. One rotary switch selects 2-, 3- or 4-pole tests without shorting links, and the tester reads earth resistance from 0.01 Ω to 20 kΩ.

Who the Megger DET4TR2 is for

The Megger DET4TR2 is aimed at installers, lightning-protection contractors and earthing designers who need fall-of-potential electrode tests and Wenner soil resistivity readings, but not clamp-based methods. Picking it over the DET4TD2 makes sense when a crew tests often enough that charging overnight is cheaper and simpler than buying alkaline cells.

Details from the DET4TD2 / DET4TR2 datasheet (V09) that shape a survey:

• P-stake, C-stake and noise checks run automatically, and the display flags a problem before you rely on the reading
• Stake resistance can reach 100 kΩ at the 50 V output, 50 kΩ at 25 V, and 5 kΩ when working at 0.01 Ω resolution
• Rejects up to 40 V peak-to-peak of ground noise and reads earth voltage from 0 to 100 V AC
• CAT IV 100 V between terminal pairs, as long as the test leads are rated to match, such as Megger leadset 1001-858
• Meets EN 61557 parts 1 and 5 and the KEMA K85B requirements

Browse all earth testers or the Megger brand page. For ART and stakeless clamp testing choose the Megger DET4TCR2 (rechargeable) or the Megger DET4TC2 (AA cells). If 4-pole soil work is never needed, the Megger DET3TD covers 2- and 3-pole electrode checks, and longer cable reels come in the Megger ETK earth test kits. All figures are in the Megger DET4TR2 datasheetPDF.

Megger DET4TR2 Key Features

Core functions of the Megger DET4TR2 on site:

• Eight AA NiMH cells recharge in place from the supplied external AC/DC adaptor
• Selector positions for 2-pole, 3-pole and 4-pole work, large enough to turn with gloves on
• 2% ±3 digits on every method, with 0.01 Ω resolution at the bottom of the 20 kΩ span
• Test signal of ±25 V or ±50 V at 128 Hz, with 4.5 mA or 0.45 mA test current
• Built-in voltmeter reads 0–100 V AC on the earth before a resistance test starts
• IP54 housing that works from −15 °C to +55 °C, so site dust and splashing water are not a problem

Megger DET4TR2 Applications

Typical DET4TR2 jobs are fall-of-potential checks on new earth rods before handover, periodic re-tests of lightning-protection and substation earths, and four-pole Wenner surveys that give an earthing designer the soil resistivity figure.

What comes with the Megger DET4TR2

Items in the standard Megger DET4TR2 kit:

• Megger DET4TR2 earth resistance tester
• Stake and wire kit (15 m, 10 m, 10 m and 3 m leads with test stakes) plus right-angle terminal adaptors for bare wires
• 8 × AA NiMH cells and the external AC/DC charger
• Hard carry case

Megger DET4TR2 vs DET4TD2

The DET4TR2 is the rechargeable model with built-in charger. If you prefer dry-cell operation, the Megger DET4TD2 is the identical instrument running on 8 × AA alkaline batteries.

Megger DET4TR2 FAQ

Questions crews ask before ordering a DET4TR2:

• Does the DET4TR2 do ART or stakeless tests? No. Both methods need the clamp-capable DET4TC2 or DET4TCR2.
• Which test frequency does it use? A fixed 128 Hz at ±25 V or ±50 V; the TC models add 94, 105 and 111 Hz to work around interference.
• How long does a charge last? Roughly 700 tests in a row, or around 3 hours of use, according to Megger’s DET4 series figures.
• Can I put alkaline AA cells in the DET4TR2? No. Megger’s user guide says not to replace the DET4TR2’s rechargeable cells with non-rechargeable cells or try to charge dry cells, because it can damage the instrument and cause injury. Use 8 × AA NiMH cells and only the Megger charger supplied; a full charge takes about 17 hours. If you want to run on alkaline cells, choose the DET4TD2.

Why buy the Megger DET4TR2 from MME in the UAE

MME (MOHAMMAD MAHDI Electronics Trading LLC) helps earthing contractors and utility teams decide whether the basic DET4TR2 is enough or whether clamp-based ART and stakeless testing justify a DET4TCR2. Ask us for a quotation, spare leads or extra stakes.
