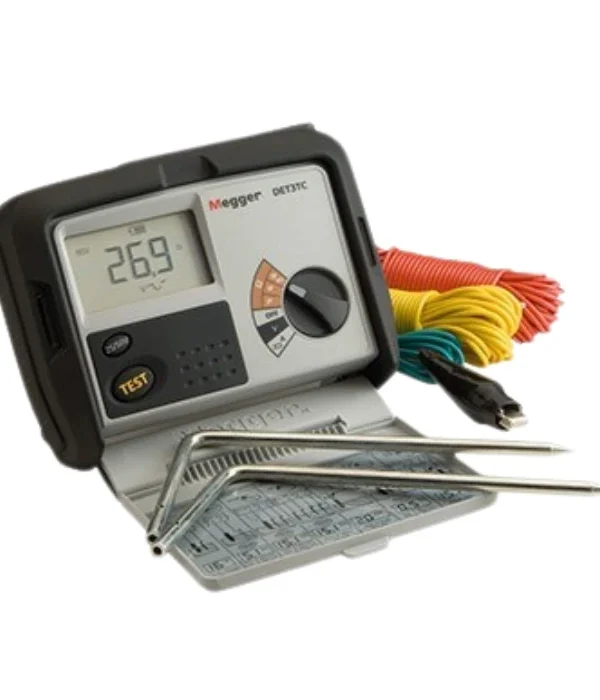

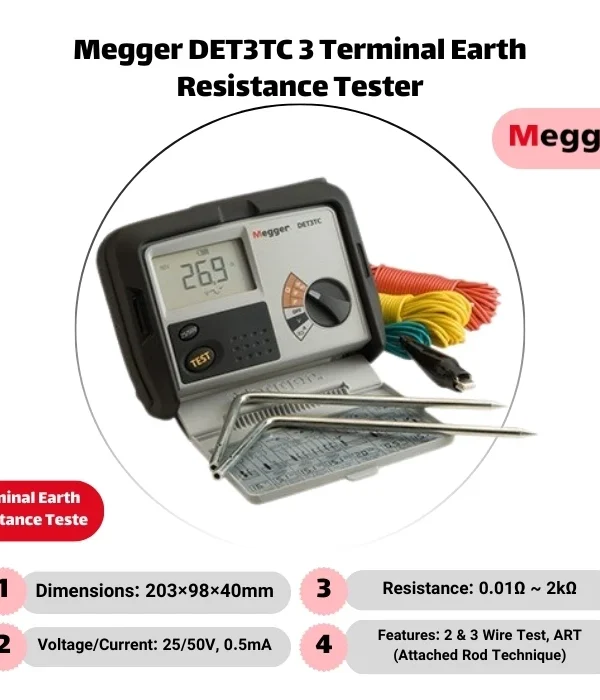

Megger Det3tc-3 Terminal Earth Resistance Tester

Megger DET3TC-3 TERMINAL EARTH RESISTANCE TESTER key features:

  • 2 and 3 point testing
  • ART (Attached Rod Technique) testing capability with DET3TC
  • Choice of digital or analog display
  • Warning indicators prevent test failure
  • IP54 rated

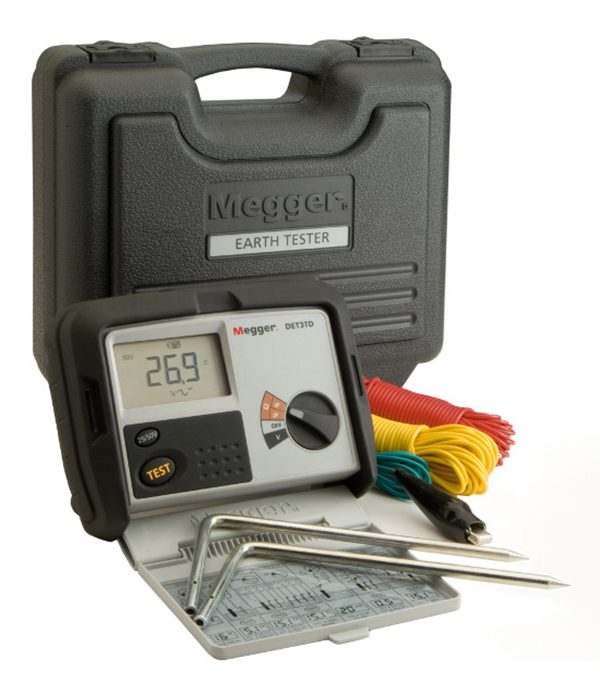

  • Complete with leads, stakes and rugged carry case
  • Simple one button operation
  • Calibration test certificate included
  • Optional earth testing kit (ETK) available
(1 customer review)
SKU: 3463

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 4,500 (excl.VAT)

15 People watching this product now!

Megger Det3tc 3 Terminal Earth Resistance Tester

The DET3TC from Megger allows you to do extensive earth testing methods such as 2 pole, 3 pole, no disconnect testing (ART), resistance, and voltage. When performing test procedures, the Megger DET3TC automatically evaluates and displays the status of connected C and P spikes, as well as performing automatic noise checking/compensating by rejecting noise from 40V peak to peak. When evaluating earth voltage, the gadget can perform tests from 0-100V AC with a 2% 2V accuracy.

This instrument requires the use of an optional clamp (available separately) to be fitted around the ground rod connection, eliminating the need to disconnect. A wide rotary dial makes it simple to select all test protocols, and a large test button is incorporated into the device for convenient and safe test initiation even when wearing gloves.

This earth tester isn’t just for indoors; the DET3TC has an IP54 classification, which means it can be used outside because it’s protected against dust and water jets. The DET3TC conforms to EN61010-1 CAT IV 100V, EN61557-1 and EN615557-5. For more information and to view other EARTH RESISTANCE TESTER models, such as the Megger DET3TD, please click on the appropriate link.

Megger DET3TC-3 specifications:

  • Ingress Protection:IP54
  • C Spike Check:Automatic
  • P Spike Check:Automatic
  • Noise Check:Automatic
  • Noise Rejection:40V Peak to Peak
  • 2-Wire Test:Yes
  • 3-Wire Test:Yes
  • No Disconnect Testing (ART):Yes, requires optional ICLAMP
  • Earth Current Range with ICLAMP :0.5mA to 19.9A
  • Earth Current Accuracy:5% ±3 digits
  • Resistance Range:0.01 to 2000Ω
  • Maximum Probe Resistance:Rp limit: 100kΩ (50V output voltage)
    Rc limit: 100kΩ (50V output voltage)
    Limits reduced to 50kΩ for 25V output voltage
    Limits reduced to 5kΩ for 0.01Ω resolution on 18Ω range
  • Earth Voltage Range:0 to 100V AC
  • Earth Voltage Accuracy:2% ± 2V
  • Battery Type:8 x AA Cells
  • Operating Temperature Range:-15 to 55°C
  • Storage Temperature Range:-40 to 70°C
  • Safety:IEC 61010-1 CAT IV 100V*
    EN 61557-1
    EN61557-5
5
1 review
1
0
0
0
0

1 review for Megger Det3tc-3 Terminal Earth Resistance Tester

Clear filters
  1. Samantha

    Perfect

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

Data Sheet

Data Sheet

specifications





Technical Specifications Table


Technical Specifications

Feature Details
Ingress Protection IP54
C Spike Check Automatic
P Spike Check Automatic
Noise Check Automatic
Noise Rejection 40V Peak to Peak
2-Wire Test Yes
3-Wire Test Yes
No Disconnect Testing (ART) Yes, requires optional ICLAMP
Earth Current Range with ICLAMP 0.5mA to 19.9A
Earth Current Accuracy 5% ±3 digits
Resistance Range 0.01 to 2000Ω
Maximum Probe Resistance Rp limit: 100kΩ (50V output voltage)
Rc limit: 100kΩ (50V output voltage)
Limits reduced to 50kΩ for 25V output voltage
Limits reduced to 5kΩ for 0.01Ω resolution on 18Ω range
Earth Voltage Range 0 to 100V AC
Earth Voltage Accuracy 2% ± 2V
Battery Type 8 x AA Cells
Operating Temperature Range -15 to 55°C
Storage Temperature Range -40 to 70°C
Safety IEC 61010-1 CAT IV 100V*
EN 61557-1
EN 61557-5
