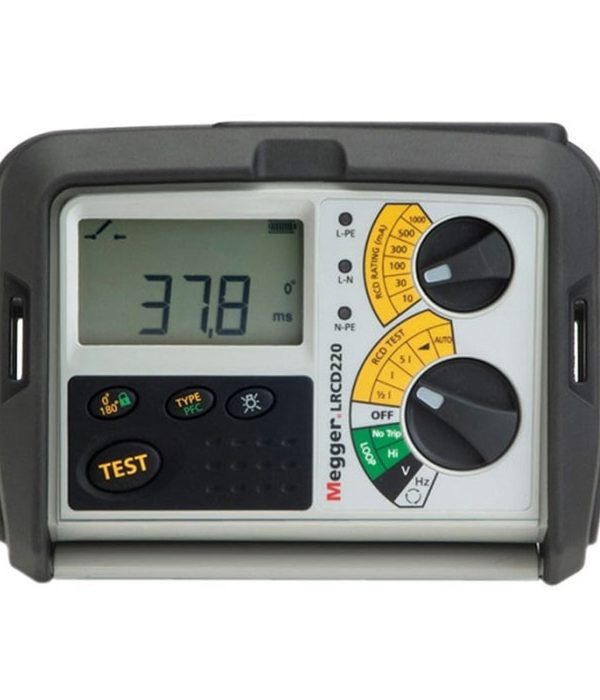

Megger LRCD220 Loop & RCD Tester
Brand:
Megger
SKU:
3523
The Megger LRCD220 is the top of the LRCD range, adding 2-wire fast loop testing, 1000 mA RCD testing, automatic RCD sequences, backlight and phase rotation. A full-feature loop and RCD tester to EN 61557.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Megger LRCD220 Loop & RCD Tester — Full-Feature Loop & RCD Testing
The Megger LRCD220 is the most capable model in the LRCD range, adding fast 2-wire loop testing, 1000 mA RCD testing, automatic RCD test sequences, a backlit display and phase-rotation indication to the LRCD210 platform. It delivers complete loop impedance and RCD verification to EN 61557 in one rugged handheld instrument for demanding residential, commercial and industrial work.
Key Features
- Two loop test modes — 3-wire no-trip loop testing plus a fast 2-wire high-current test, measuring 0.01 Ω to 2 kΩ to EN 61557.
- Phase-to-phase measurement — loop testing up to 415 V phase-to-phase and 100–280 V operation (supports 110 V supplies).
- Full RCD test suite — ½×I, 1×I and 5×I tests plus 20–110% ramp on 10, 30, 100, 300, 500 and 1000 mA RCDs.
- AC, A and S type RCDs — selectable RCD type with 0°/180° phase selection.
- Automatic RCD testing — auto test sequence with result recall and a test-lock function for repeatable, hands-free testing.
- Backlit display & phase rotation — backlit LCD for low-light work and built-in phase-rotation indication.
- Accurate trip-time measurement — ±1% ±1 ms trip-time accuracy with a selectable 25 V or 50 V touch-voltage limit.
- CAT III 300 V safety — rated to IEC 61010-1 CAT III 300 V (phase to earth) in an IP54 sealed case.
- Long battery life — up to 2000 consecutive tests from 8 × AA cells; 203 × 148 × 78 mm, 980 g.
Applications
The LRCD220 is ideal for commissioning, periodic inspection and testing, and fault-finding across single- and split-phase installations in domestic, commercial and industrial premises — especially where fast loop testing, 1000 mA RCD verification and automatic test sequences save time on site.
What’s in the Box
- Megger LRCD220 loop and RCD tester
- 3-wire test lead set — red, black and green (part no. 6231-592)
- Mains plug test lead (regional variant)
- 8 × AA alkaline batteries (fitted)
- User guide
Why Buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.
Download the Megger LRCD220 datasheet (PDF).
Specifications
Specifications
| SPECIFICATIONS – LRCD200 / LRCD210 / LRCD220 | |
|---|---|
| Voltage Measurement (LRCD200, 210, 220) | |
| Range | 0 V – 500 V |
| Accuracy | ±2% ±2 digits |
| Frequency Measurement (LRCD200, 210, 220) | |
| Range | 25 Hz – 450 Hz |
| Accuracy | 25.0–199.9 Hz: ±0.1 Hz 200–450 Hz: ±1 Hz |
| Phase Rotation Indicator (LRCD220 only) | |
| Description | Three-wire identification of phase rotation |
| Frequency | 45 Hz – 65 Hz |
| Loop Testing (to EN 61557-3) | |
| No Trip Loop Test (3-wire, Line to Earth) | |
| Supply | LRCD200/210: 200 V – 280 V, 45–65 Hz LRCD220: 100 V – 280 V, 45–65 Hz |
| Nominal Test Current | 15 mA |
| Loop Accuracy | 0.01–9.99 Ω: ±5% ±0.03 Ω 10.0–99.9 Ω: ±5% ±0.5 Ω 100–999 Ω: ±5% ±5 Ω 1.00–2.00 kΩ: ±5% ±30 Ω |
| High Current Line/Earth Loop Test (2-wire, LRCD220 only) | |
| Supply | 100 V – 480 V |
| Nominal Test Current | 15 mA – 2.4 A |
| Loop Accuracy | 0.01–9.99 Ω: ±5% ±0.03 Ω 10.0–99.9 Ω: ±5% ±0.5 Ω 100–999 Ω: ±5% ±5 Ω 1.00–2.00 kΩ: ±5% ±30 Ω |
| Line/Line (LRCD220 only) | |
| Supply | 100 V – 480 V, 45–65 Hz |
| Prospective Fault Current (PSCC) | |
| Description | Prospective fault current = Nominal supply voltage / Loop resistance Accuracy derived from loop test |
| Resolution | 1–199 A: 1 A resolution 0.20–1.99 kA: 10 A resolution 2.0–19.9 kA: 100 A resolution |
| RCD Testing (to EN61557-6) | |
| RCD Test Ranges | LRCD200/210: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA LRCD220: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA |
| Supply Voltage | LRCD200/210: 200–280 V, 45–65 Hz LRCD220: 100–280 V, 45–65 Hz |
| Test Current Accuracy | No Trip Test (½I): −8% to −2% Trip Test (I, 5I): +2% to +8% |
| Trip Time | ±1% ±1 ms |
| Fault (Touch) Voltage | |
| Displayed Range | 0–50 V |
| Error | +5% / +15% ±0.5 V |
| Temperature and Humidity | |
| Operating Range | −5°C to +40°C |
| Operating Humidity | 93% RH at +40°C max |
| Storage Range | −25°C to +70°C |
| Maximum Altitude | 2000 m |
| Environmental Protection | IP54 |
| Safety | |
| Standard | IEC 61010 |
| Category | Meets IEC61010-1 Cat III 300 V phase to earth |
| EN61557 Compliance | Part 1 – General Requirements Part 3 – Loop Resistance Part 6 – Residual Current Devices |
| Power Supply | |
| Battery | 8 × 1.5 V IEC LR6 type (AA alkaline) |
| Rechargeable | 8 × 1.2 V NiCd or NiMH cells |
| Battery Life | 2000 consecutive tests |
| Physical | |
| Weight | 980 g |
| Dimensions | 203 × 148 × 78 mm |
| E.M.C. | |
| Standard | In accordance with IEC61326-1 |
