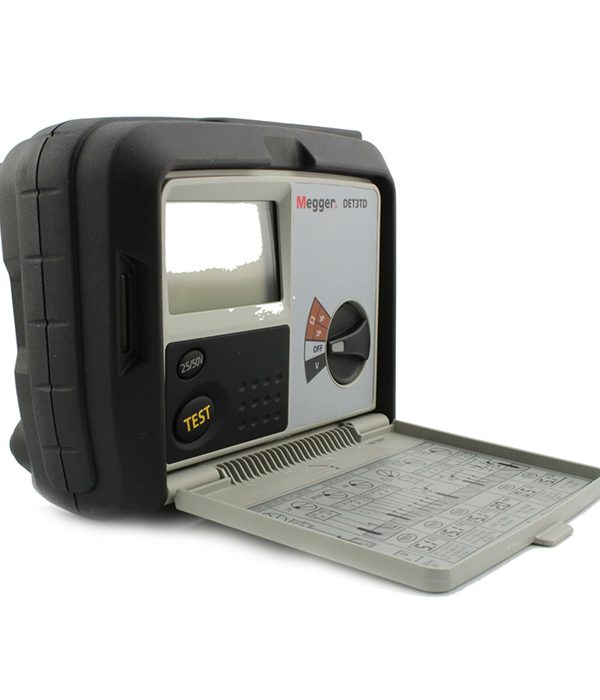

Megger DET3TD 3-Terminal Earth Resistance Tester

Megger DET3TD Overview

The Megger DET3TD is a robust, easy-to-use earth resistance tester designed for measuring the resistance of earth electrodes and grounding systems. It performs 2-pole and 3-pole (fall-of-potential) measurements across a range of 0.01 Ω to 2000 Ω, making it ideal for electrical installers, utilities and test engineers who need dependable earth-electrode results in the field.

Who the Megger DET3TD is for

The Megger DET3TD is for electricians, installers and facility engineers who need to confirm the resistance of single rods or small earth arrangements and run bond checks, without paying for 4-terminal soil resistivity or clamp-based methods. It keeps the same rugged case and one-button operation as Megger’s larger DET testers.

Figures from Megger’s DET3TD datasheet (V06) that affect real tests:

• Stake resistance limit of 100 kΩ at 50 V and 50 kΩ at 25 V, dropping to 5 kΩ on the 0.01 Ω resolution (18 Ω) range
• No shorting links for 2-pole tests, and a large selector that works with gloved hands
• Test current of 450 µA or 4.5 mA at 128 Hz, plus a 0–100 V AC earth voltmeter
• CAT IV 100 V, provided the leads carry the same rating (for example Megger 1001-858); EN 61557-5 compliant
• Operates from −15 °C to +55 °C; 203 × 148 × 78 mm and 1 kg

Compare more models in our earth resistance testers category or on the Megger brand page. To test rods without disconnecting them, look at the Megger DET3TC. For soil resistivity, ART and stakeless work, step up to the Megger DET4TC2 or its rechargeable sibling, the Megger DET4TCR2.

Megger DET3TD Key Features

What the Megger DET3TD offers for routine earth checks:

• Wide resistance range from 0.01 Ω to 2000 Ω with 2% ±3 digit accuracy
• Selectable 25 V or 50 V test output (factory set to 50 V) for sites where local rules call for the lower voltage
• 128 Hz test frequency with strong rejection of stray noise (40 V peak-to-peak)
• Earth voltage measurement 0–100 V a.c. to check for hazardous stray voltages before testing
• Rugged IP54 weatherproof case built for outdoor site use
• 8 × AA cells last about 3 hours or 700 consecutive tests, with automatic P-spike, C-spike and noise checks

Megger DET3TD Applications

The DET3TD is used for commissioning and maintenance testing of earth electrodes, lightning protection grounds, substation earths and equipment grounding systems. Its 2-pole and 3-pole methods suit both quick spot checks and full fall-of-potential surveys, giving electrical contractors and facilities teams a reliable way to verify that grounding meets installation requirements.

What comes with the Megger DET3TD

The DET3TD kit, as listed in Megger’s datasheet:

• Megger DET3TD earth resistance tester
• Stake and wire kit: two 200 mm test spikes with three leads of 15, 10 and 3 m (Megger replacement sets 6220-804 and 6220-805)
• 8 × AA batteries
• Hard-wearing polypropylene carry case

Megger DET3TD vs DET3TC

The DET3TD provides 2-pole and 3-pole earth resistance testing with earth voltage measurement. If you also need the Attached Rod Technique (ART) with a current clamp and earth current measurement for testing electrodes without disconnecting them, the Megger DET3TC adds those capabilities.

Megger DET3TD FAQ

Quick answers before you order a DET3TD:

• Can it test a rod without disconnecting it? No. The Attached Rod Technique needs the DET3TC with its optional current clamp.
• Does it measure soil resistivity? No. Soil resistivity surveys need a 4-terminal instrument such as the DET4 series.
• When should I pick 25 V? Only where local rules require it; the factory setting is 50 V, which tolerates higher stake resistance.
• Can I use it on bonding checks? Yes. Use the 2P (two-terminal) setting to measure the resistance between an electrode and a known good earth, such as metallic pipework or building steelwork. Megger notes that the a.c. test voltage may not suit continuity tests under some local regulations.
