20.00 mA to 60.0 A/0.01 mA/±(2.0%rdg.±0.05mA)

HIOKI CLAMP ON EARTH TESTER FT6381

HIOKI CLAMP ON EARTH TESTER FT6381 Key Features:

  • Earth resistance measurement for multi-grounded systems
  • Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution
  • Measure load current up to 60.0 A range
  • Clamp at the narrowest point
  • Data transfer to Android™ phones using Bluetooth® wireless technology
  • Real time data transfer, automatic report generation on Android™ phone
(1 customer review)
SKU:740

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

16People watching this product now!

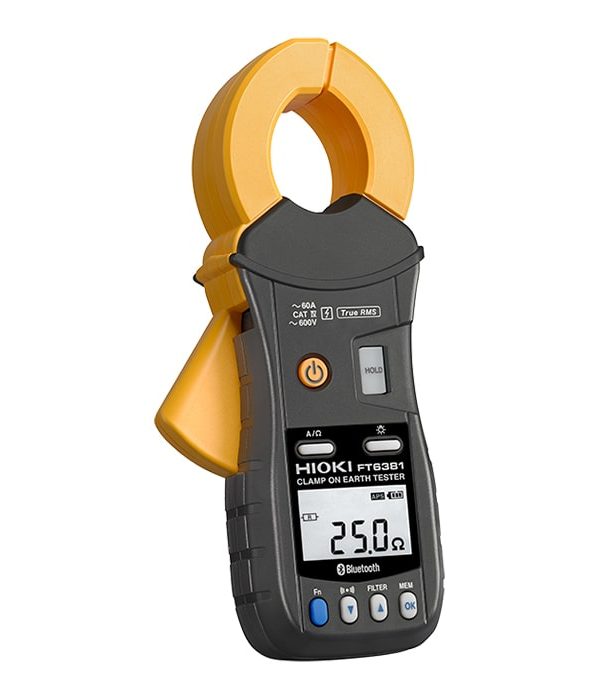

Hioki Clamp On Earth Tester FT6381

The Hioki FT6381 measures grounding resistance by simply clamping to ground wires that are several times grounded. No additional grounding rod is required, and the ground wire does not need to be cut off from the grounding rod. The small, low-profile sensor can be used to clamp ground wires with ease. It also has capabilities for measuring AC current, and it can detect leakage currents as low as a few mA and load currents as high as 60 A.

Hioki Clamp On Earth Tester FT6381 Specification:

  • Earthing resistance range: 0.20 Ω to 1600 Ω / Accuracy: ±1.5 % rdg
  • AC Current range: 20.00 mA to 60.0 A
  • Max. allowable input: AC 200 A for 2 minutes or shorter
  • Max. rated voltage to earth: 600 V AC CAT IV
  • Waterproof and dustproof: IP40
  • Power supply: LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use : 35 hr
  • Dimensions and mass: 73 mm (2.87 in)W × 218 mm (8.58 in)H × 43 mm (1.69 in)D, 620 g (21.9 oz)
5
1 review
1
0
0
0
0

1 review for HIOKI CLAMP ON EARTH TESTER FT6381

Clear filters
  1. Ashley

    It’s Great

Add a review

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Hioki

Datasheet

Mme-Pdfs-Image

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

20.00 mA to 60.0 A/0.01 mA/±(2.0%rdg.±0.05mA)

Earth Resistance Testers
Earth Ground Resistance (Range/Resolution/Accuracy)

0.20 Ω to 1600 Ω/0.01 Ω/±(1.5 %rdg.±0.02 Ω)

Electrical Specifications
Jaw Diameter

φ 32 mm (1.26 in)

Mechanical and General Specifications
Dimensions

73 mm (2.87 in)W × 218 mm (8.58 in)H × 43 mm (1.69 in)D

Weight

620 g

Power

LR6 (AA) alkaline battery ×2, Max. rated power

Accessories

Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2

Other features of the device

Max. rated voltage to earth:600 V AC CAT IV

More
Data Hold

Display-count

2000 count

Backlight
