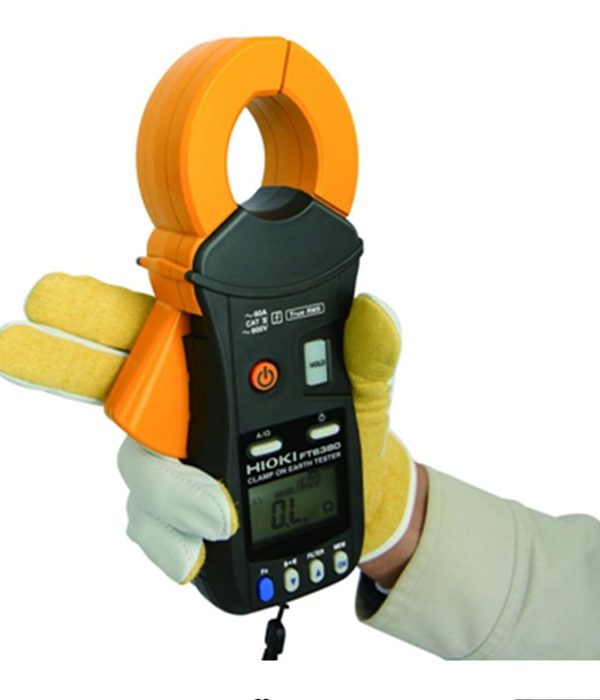

Hioki Ft6380-50 Clamp On Earth Tester
Short Description:
Hioki FT6380-50 Key Features:
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measure load current up to 60.0 A range

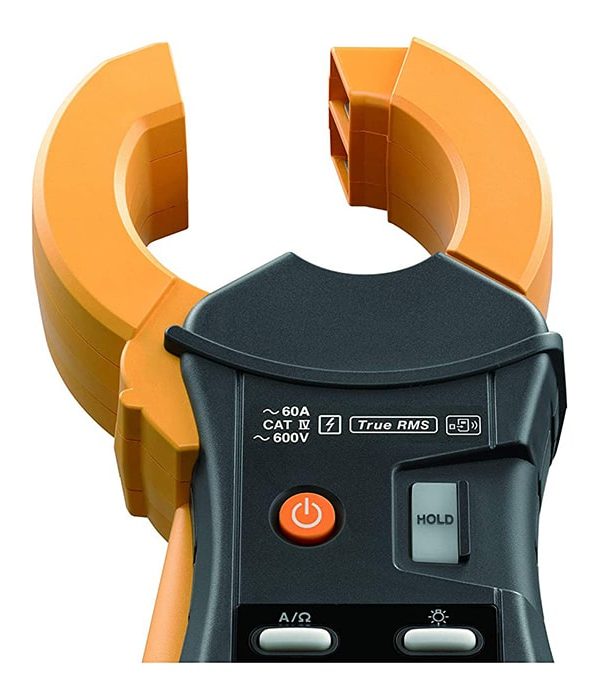

- Clamp at the narrowest point
Product purchase
Original price was: AED 4,500.AED 4,100Current price is: AED 4,100. (excl.VAT)
11
People watching this product now!
Terms of sending goods ›
Clamp-on Earth Tester Ft6380-50
The FT6380-50 is a game-changing tool for measuring grounding resistance that offers unparalleled simplicity. It works by clamping directly onto multiple grounded ground wires, eliminating the requirement for supplementary grounding rods or ground wire severance from the grounding rod. This design improvement considerably improves measurement efficiency and ease.
The sensor on the gadget is small and low-profile, delivering an easy-to-use experience. Its capability extends beyond grounding resistance testing to include AC measurements, with the ability to gauge currents across a wide range. This ranges from detecting minute leakage currents as low as a few mA to analyzing load currents of up to 60 A, making it a useful tool for a wide range of electrical applications.
CLAMP ON EARTH TESTER FT6380-50 Key Features:
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measure load current up to 60.0 A range
- Clamp at the narrowest point
CLAMP ON EARTH TESTER FT6380-50 Specification:
- Earthing resistance: 0.20 Ω to 1600 Ω / Accuracy: ±1.5 % rdg. ±0.02 Ω
- AC Current: 20.00 mA to 60.0 A / Accuracy: ±2.0 % rdg. ±0.05 mA
- Maximum input current: AC 200 A for 2 minutes or shorter
- Memory function: 2000 data
- Dust-proof and waterproof: IP40
- Power supply: LR6 alkaline battery × 2
- Dimensions and mass: 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz)
Datasheet
Specification
Technical Specifications
| Measurement Principle | Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value. |
|---|---|
| Earthing Resistance Range | 0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω, Accuracy: ±1.5 % rdg. ±0.02 Ω |
| AC Current Range | 20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA, Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less) |
| Maximum Input Current (Current Measurement) | 100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50 Hz/60 Hz, requires derating at frequency) |
| Maximum Rated Terminal-to-Ground Voltage | 600 VAC measurement category IV (anticipated transient overvoltage 8000 V) |
| Memory Function | 2000 data |
| Alarm Function | For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold. |
| Harmonic Levels | [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio *Harmonics can be displayed with our free app GENNECT Cross. |
| Other Functions | Data hold, Backlight, Filter, Auto power save, Wireless communication (without Z3210 installed) |
| Display | LCD, Max. 2,000 count Display refresh rate: Approx. 2 times/sec. |
| Dust-proof and Waterproof | IP40 (EN60529) With Jaws Closed |
| Power Supply | LR6 alkaline battery × 2 |
| Continuous Operating Time | Approx. 40 hours (25 Ω measurement, backlight off, without Z3210 installed) Approx. 35 hours (25 Ω measurement, backlight off, with Z3210 installed and using wireless communications) |
| Maximum Measurable Conductor Diameter | φ 32 mm (1.26 in) |
| Dimensions and Mass | 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D, 620 g (21.9 oz) |

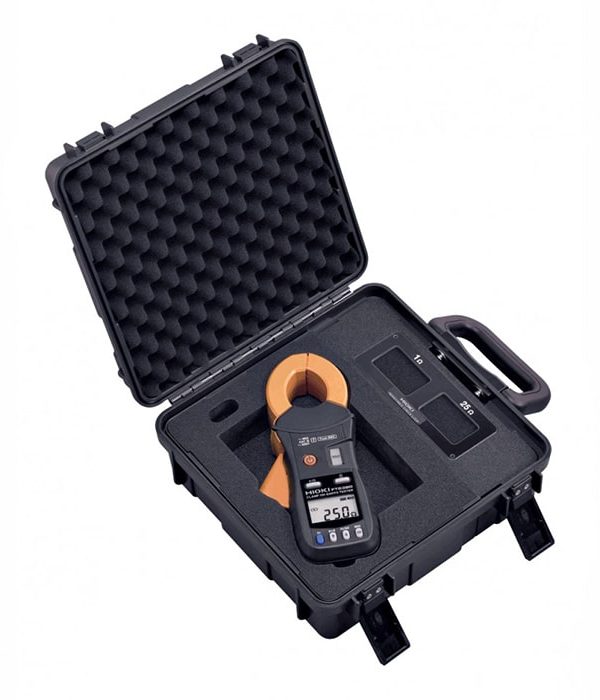

| Included Accessories | Carrying case, Resistance check loop (1 Ω±2%, 25Ω±1%), Strap, LR6 alkaline battery × 2, Instruction manual |
