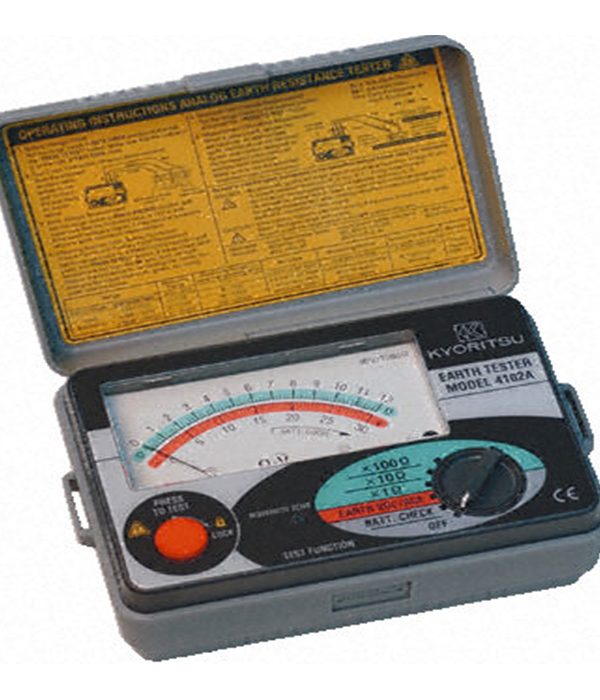

Kyoritsu KEW 4102A Analogue Earth Resistance Tester
Brand:
Kyoritsu
SKU:
3947
The Kyoritsu KEW 4102A is a rugged analogue earth (ground) resistance tester measuring earth resistance from 0 to 1200 Ohm by the fall-of-potential method, plus earth voltage to 30 V AC, IP54-rated and CAT III 300 V for reliable grounding-system verification.
- Secure Purchase
- Fast Delivery
- Genuine Guarantee
- Online Payment
Description
Overview
The Kyoritsu KEW 4102A is a rugged analogue earth (ground) resistance tester used to verify the integrity of earthing systems in electrical installations, substations and lightning-protection systems. Its needle display gives an intuitive, direct reading, and an IP54-rated, dust- and drip-proof housing makes it dependable outdoors and on site. This is the soft-case model of the 4102A series (the 4102A-H is the hard-case version).
The KEW 4102A measures earth resistance on three ranges — ×1 (0–12 Ω), ×10 (0–120 Ω) and ×100 (0–1200 Ω) — using the 3-pole (or 2-pole) fall-of-potential method with auxiliary spikes, and also measures earth voltage from 0 to 30 V AC. A low 2 mA test current lets measurements be made without tripping earth-leakage breakers. It is rated CAT III 300 V and powered by six AA batteries in a compact 600 g package.
Key Features
- Analogue earth (ground) resistance tester with direct-reading scale.
- Earth resistance ranges: ×1 (0–12 Ω), ×10 (0–120 Ω), ×100 (0–1200 Ω).
- 3-pole and 2-pole fall-of-potential measurement.
- Earth voltage measurement 0–30 V AC.
- Low 2 mA test current — measures without tripping ELCBs.
- Rugged IP54 housing; rated CAT III 300 V.
- Powered by six AA batteries; ~600 g (soft-case model).
Applications
- Earth-resistance testing of grounding electrodes and systems.
- Installation, substation and lightning-protection earthing verification.
- Earth-voltage checks before and during testing.
- Periodic inspection and maintenance of earthing systems.
What’s in the Box
- KEW 4102A earth resistance tester (soft case).
- Auxiliary earth spikes and test leads.
- Six AA (R6) batteries.
- Soft carrying case and instruction manual.
Kit contents may vary by order; contact MME to confirm your configuration.
Why buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Kyoritsu test and measurement equipment across the UAE and the wider Gulf region. We offer genuine Kyoritsu products, competitive pricing, expert application support and reliable after-sales service to keep your earthing tests running smoothly.
View the Kyoritsu KEW 4102A datasheetSpecifications
Specifications
| Specification | |||
|---|---|---|---|
| Earth Resistance Measurement | ×1Ω Range | ×10Ω Range | ×100Ω Range |
| Measuring Range | 0 to 12Ω | 0 to 120Ω | 0 to 1200Ω |
| Accuracy | ±3% of full scale | ||
| Earth Voltage Measurement | |||
| Measuring Range | 0 to 30V AC (50/60Hz) | ||
| Accuracy | ±3% of full scale | ||
| Overload Protection | Earth resistance: 276V AC/DC (10 seconds) Earth voltage: 276V AC/DC (10 seconds) |
||
| Applicable Standards | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-030 IEC 61557-1,5 IEC 60529 (IP54) |
||
| Power Source | R6 (AA) (1.5V) × 6 | ||
| Dimension | 105 (L) × 158 (W) × 70 (D) mm (including case lid) | ||
| Weight | Approx. 600g (including batteries and case lid) | ||
| Accessories | 7095A (Earth resistance test leads: Red 20m, Yellow 10m, Green 5m / 1set) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes [2 spikes / 1set]) 9121 (Shoulder strap) 9084 (Carrying case) R6 (AA) × 6 Instruction manual |
||
| Optional Accessories | 7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9164 (Carrying case [Hard]) |
||
