Description

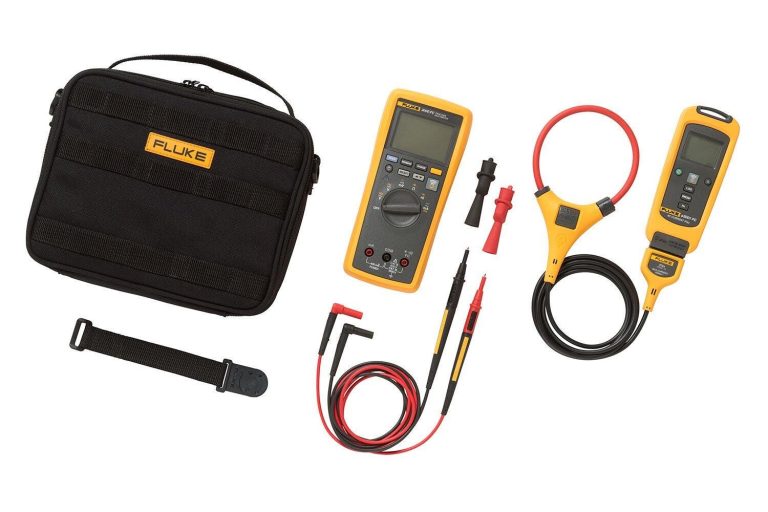

The Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is a versatile and accurate measurement tool for technicians and engineers. With its wireless design and iFlex AC current clamp, users can easily measure AC current up to 600 A and AC voltage up to 1000 V.

This kit also features DC voltage, continuity, resistance, diode test, and capacitance measurement capabilities, making it an ideal tool for a variety of applications.

Fluke a3001 Key Features

The Fluke a3001 FC Wireless iFlex AC Current Clamp Kit offers a range of key features, including:

Wireless AC current measurement up to 600 A
Measure AC voltage up to 1000 V
DC voltage, continuity, resistance, diode test, and capacitance measurement
iFlex AC current clamp for easy measurement
Fast fuse overload protection
MIN/MAX recording accuracy
99.99 Hz to 99.99 kHz frequency range

Who Needs the Fluke a3001?

The Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is designed for technicians and engineers who need a reliable and accurate measurement tool for a variety of applications, including electrical, industrial, and commercial settings.

Fluke a3001 Applications

Measure AC current in electrical panels, motors, and generators
Measure AC voltage in electrical panels, motors, and generators
Measure DC voltage in electronic circuits and devices
Measure continuity in electrical circuits and devices
Measure resistance in electrical circuits and devices
Measure diode test in electronic circuits and devices
Measure capacitance in electronic circuits and devices

Why Buy Fluke a3001 from mme-ae?

The Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is a high-quality measurement tool that is designed to provide accurate and reliable results. By purchasing this kit from mme-ae, you can trust that you are getting a genuine product that meets the highest standards of quality and performance.

Fluke a3001 Specifications

AC Voltage
Range¹ / resolution		600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
Accuracy^{2 3 4}	45 Hz to 500 Hz	1.0% + 3
	500 Hz to 1 kHz	2.0% + 3
1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
mV	Range / resolution	600.0 mV / 0.1 mV
	Accuracy	0.09% + 2
V	Range / resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
	Accuracy	0.09% + 2 0.15% + 2
)))	Range / resolution	600 Ω / 1 Ω
	Accuracy	Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω	Range / resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ
	Accuracy	0.5% + 2 0.5% + 1 1.5% + 3
Diode test	Range / resolution	2.000 V / 0.001 V
	Accuracy	1% + 2
µF	Range / resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF^{1 /}1 μF
	Accuracy	1.2% + 2 10% typical
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
AC and DC Current
mA AC (45 Hz to 1 kHz)	Range¹ / resolution	60.00 mA / 0.01 mA 400.0 mA³/ 0.1 mA
	Accuracy	1.5% + 3
mA DC²	Range¹ / resolution	60.00 mA / 0.01 mA 400.0 mA³/ 0.1 mA
	Accuracy	0.5% + 3
1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range / resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz
Accuracy¹	0.1% + 1
1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
	Overload protection	1100 Vrms
	Input impedance (nominal)	> 10 MΩ < 100 pF
	Common mode rejection ratio (1 kΩ unbalance)	> 120 dB at DC, 50 Hz or 60 Hz
	Normal mode rejection	> 60 dB at 50 Hz or 60 Hz
	Overload protection	1100 Vrms
	Input impedance (nominal)	> 10 MΩ < 100 pF
	Common mode rejection ratio (1 kΩ unbalance)	> 60 dB, DC to 60 Hz
	Normal mode rejection	> 60 dB at 50 Hz or 60 Hz
	Overload protection	1100 Vrms
	Input impedance (nominal)	> 10 MΩ < 100 pF
	Common mode rejection ratio (1 kΩ unbalance)	> 120 dB at DC, 50 Hz or 60 Hz
	Normal mode rejection	> 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage
	Overload protection	1100 Vrms
	Input impedance (nominal)	< 2.7 VDC
	Full scale voltage to 6 MΩ Full scale voltage 50 MΩ	< 0.7 VDC < 0.9 VDC
	Typical short circuit current	< 350 mA
	Overload protection	1100 Vrms
	Input impedance (nominal)	< 2.7 VDC
	Full scale voltage to 6 MΩ Full scale voltage 50 MΩ	2.000 VDC
	Typical short circuit current	< 1.1 mA
mA Function
Overload protection	Fused, 44/100 A, 1000 V FAST Fuse
Overload	600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording Accuracy
DC functions	±12 counts for changes > 350 mS in duration.
AC functions	±40 counts for changes > 900 mS in duration.
General Specifications
Maximum voltage between any terminal and earth ground	1000 VDC or AC rms
Ω fuse protection from A inputs	0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD)	Update rate	4/sec
	Volts, amps, ohms	6000 counts
	Frequency	10,000 counts
Capacitance	1,000 counts
Battery type	Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life	250 hours minimum
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
Obstructed, concrete wall, or steel electrical enclosure	Up to 3.5 m
Temperature	Operating	-10°C to 50°C
	Storage	-40°C to 60°C
Temperature coefficient	0.1 x (specified accuracy) / °C ( 28°C)
Relative humidity	0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
Altitude	Operating	2,000 m
	Storage	12,000 m
Electromagnetic compatibility EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance	ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010
Certifications	CSA, FCC, CE
Ingress Protection (IP) rating	IP54
Pollution Degree	2
Size (H x W x L)	4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight	340 g (12 oz)
Warranty	Three years
Not compatible with Fluke CNX test tools
