Testo 755-1 Current/voltage tester
3 Comments
Test the exact voltage with Testo 755-1 for reliable diagnostics. Perfect for electricians and home use.
Terms of sending goods ›
AED 525 (excl.VAT)
Order Via phone number
In stockDelivers in 2-3 business days.
Description

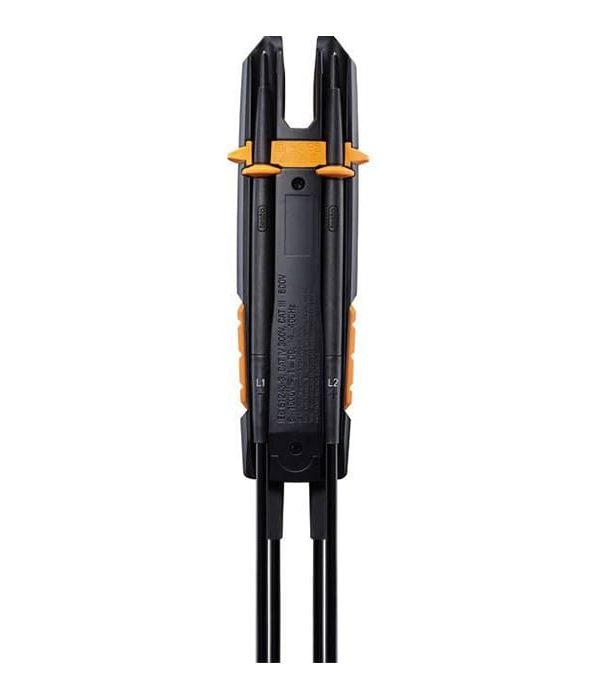

Testo 755-1 Current/voltage tester
Order-Nr. 0590 7551

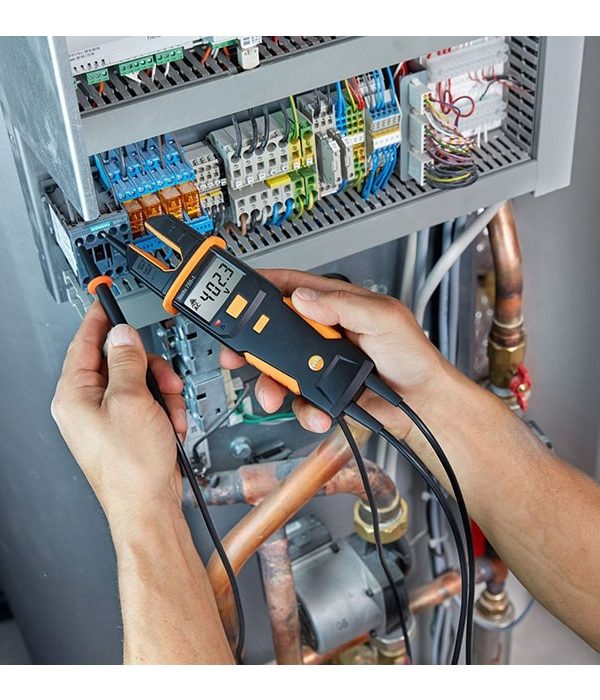

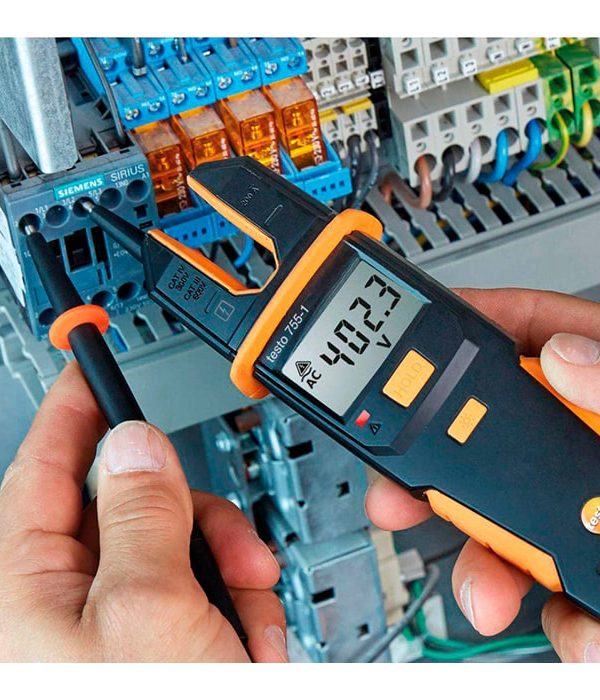

The first voltage tester with current measurement: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure the flow of current or current consumption, and carry out continuity tests using a single instrument.
In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.
The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.
The testo 755-1 current/voltage tester is a genuine allrounder that will make your day-to-day work easier.
testo 755-1 Current/voltage tester specification :
- Operating humidity : 0 to 75 %RH
- Weight: 320 g
- Dimensions : 199 x 62 x 40 mm
- Operating temperature: -10 to +50 °C
- Protection class: IP64
- Standards: EN 61243-3; EN 61010-1
- Battery type: 2 AAA micro batteries
- Storage temperature: -15 to +60 °C
- Overvoltage Category : CAT IV 600V; CAT III 1000V
- Measuring range Resistance: 30 to 100 kOhm
- Resolution Resistance: max. 1 Ohm
- Accuracy Resistance : ± (1.0 % of mv + 5 Digit)
- Measuring range AC current: 0.1 to 200 A
- Resolution AC current: max. 0.1 A
- Accuracy AC current : ± (3 % of mv + 3 Digit)
- Measuring range AC voltage: 6 to 600 V
- Resolution AC voltage: max. 0.1 V
- Accuracy AC voltage : ± (1.5 % of mv + 3 Digit)
- Measuring range DC voltage: 6 to 600 V
- Resolution DC voltage: max. 0.1 V
- Accuracy DC voltage : ± (1.5 % of mv + 3 Digit)
Similar Product
The Testo 755-1 has several similar products in terms of functionality and features that cater to professionals’ electrical testing needs. These similar products offer accurate measurements and reliable performance in various applications.
- Testo 755-2
Datasheet
Datasheet
specifications
specifications
| Specification | Value |
|---|---|
| Operating humidity | 0 to 75 %RH |
| Weight | 320 g |
| Dimensions | 199 x 62 x 40 mm |
| Operating temperature | -10 to +50 °C |
| Protection class | IP64 |
| Standards | EN 61243-3; EN 61010-1 |
| Battery type | 2 AAA micro batteries |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Measuring range Resistance | 30 to 100 kOhm |
| Resolution Resistance | max. 1 Ohm |
| Accuracy Resistance | ± (1.0 % of mv + 5 Digit) |
| Measuring range AC current | 0.1 to 200 A |
| Resolution AC current | max. 0.1 A |
| Accuracy AC current | ± (3 % of mv + 3 Digit) |
| Measuring range AC voltage | 6 to 600 V |
| Resolution AC voltage | max. 0.1 V |
| Accuracy AC voltage | ± (1.5 % of mv + 3 Digit) |
| Measuring range DC voltage | 6 to 600 V |
| Resolution DC voltage | max. 0.1 V |
| Accuracy DC voltage | ± (1.5 % of mv + 3 Digit) |
