Fluke AC89 Insulation Piercing Test Clip UAE

Description

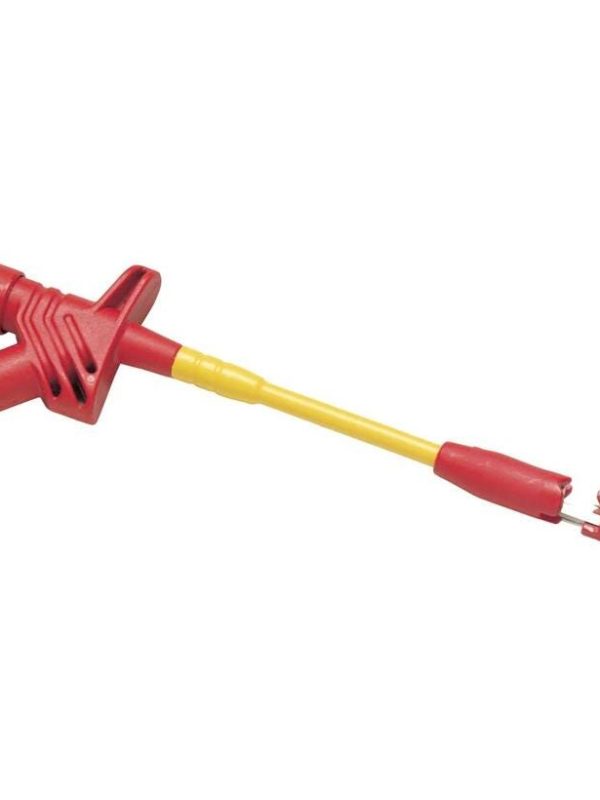

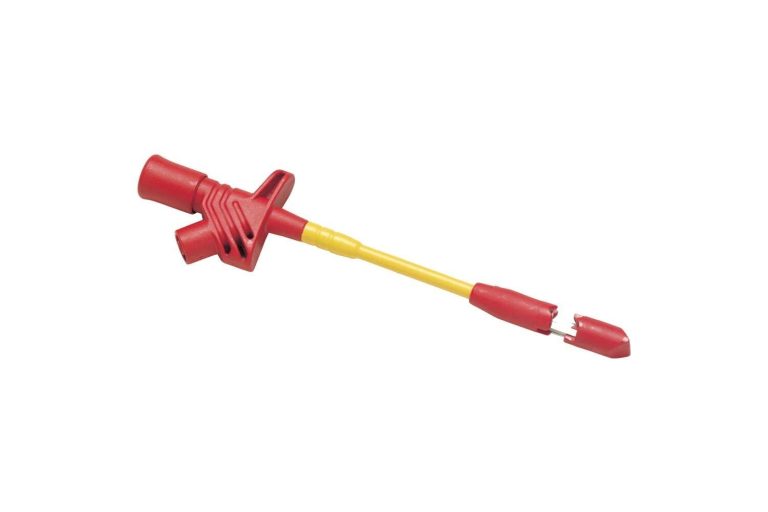

Fluke AC89 Heavy Duty Insulation Piercing Test Clip Overview

The Fluke AC89 is a heavy-duty insulation piercing test clip. It clamps onto an insulated wire from 0.25 mm to 1.5 mm and makes contact through the insulation, so you can measure without stripping or cutting the wire. Its extremely small piercing point helps preserve insulation integrity.

It is rated 30 V rms / 42.4 V peak / 60 V DC, 10 A, so it is made for low-voltage work: automotive and vehicle wiring, control and signal wiring, 24 V systems and low-voltage DC circuits. It fits Fluke multimeters, clamp meters and process calibrators.

Key Features

Pierces insulated wire from 0.25 mm to 1.5 mm
Extremely small piercing point to help keep insulation intact
Heavy-duty clip stays in place for hands-free readings
Rated 30 V rms, 42.4 V pk, 60 V DC, 10 A
Works with Fluke DMMs, clamp meters and calibrators
1-year Fluke warranty

Fluke AC89 Specifications

Fluke AC89 official specifications
Type	Single heavy-duty insulation piercing test clip (probe)
Wire size	Insulated wire 0.25 mm to 1.5 mm
Piercing point	Extremely small piercing point to help preserve insulation integrity
Voltage rating	30 V rms, 42.4 V peak, 60 V DC
Current rating	10 A
Part number	873448
UPC	0 95969 01228 7
Warranty	1 year

Compatible Fluke Instruments

Fluke lists the AC89 as compatible with these models:

Digital multimeters: Fluke 87V, 83V, 175, 177, 179, 179 IMSK, Fluke 287, Fluke 289, 106, 107
Clamp meters: 365, 373, 374 FC, 375 FC, 376 FC, 381, 902, 902 FC
Calibrators: 705, 707Ex, 709H, 710, 712, 787, Fluke 787B, Fluke 789

AC89 vs Other Fluke Clips

Fluke clip comparison
Fluke AC89	Insulation piercing clip for 0.25 to 1.5 mm insulated wire; 30 V rms / 60 V DC, 10 A
Fluke AC87	Flat right-angle bus bar clips, jaws up to 30 mm; CAT III 600 V, 5 A
Fluke AC175 / AC285	Alligator clip sets for general connections

For bus bars, see the Fluke AC87 bus bar clip set. For terminals and round conductors, see the Fluke AC175 alligator clips or Fluke AC285 SureGrip alligator clips. For a complete lead kit, see the Fluke TLK287 electronic master test lead set or Fluke TL71 premium test leads.

Typical Applications

Automotive, truck and fleet wiring diagnostics
24 V control circuits, PLC I/O and sensor wiring
Low-voltage DC systems and battery-powered equipment
Signal tracing in wiring harnesses without cutting wires

Safety Tip

The AC89 is rated only 30 V rms / 60 V DC. Never use it on mains voltage or any circuit above its rating. Always use the lowest rating of your meter, leads and accessories. Learn more in our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse more electrical test accessories or all Fluke products.

Fluke AC89 FAQ

What is the Fluke AC89 used for?

It is an insulation piercing test clip. It lets you take a reading from an insulated wire without stripping it, which is useful for tracing signals in wiring looms and low-voltage control circuits.

What wire sizes does the AC89 fit?

Fluke specifies insulated wire from 0.25 mm to 1.5 mm.

What is the voltage rating of the AC89?

30 V rms, 42.4 V peak or 60 V DC, at up to 10 A. Do not use it on mains or other circuits above these limits.

Does the AC89 damage the insulation?

It uses an extremely small piercing point to help keep the insulation intact. Check the wire after testing, and seal the point if the wire is used in a wet or harsh place.

Which Fluke meters work with the AC89?

Fluke lists many multimeters (87V, 83V, 175, 177, 179, 287, 289, 106, 107), clamp meters (365, 373, 374 FC, 375 FC, 376 FC, 381, 902, 902 FC) and calibrators (705, 707Ex, 709H, 710, 712, 787, 787B, 789).

Is the AC89 a single clip or a pair?

Fluke describes it as a single probe (clip). Order two if you need to pierce both conductors.

What is the warranty?

Fluke gives a 1-year warranty.
