Description

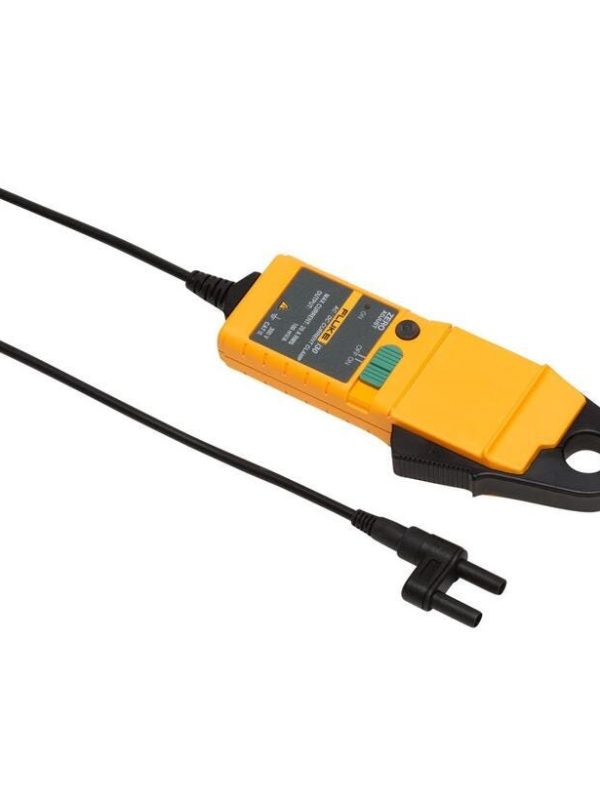

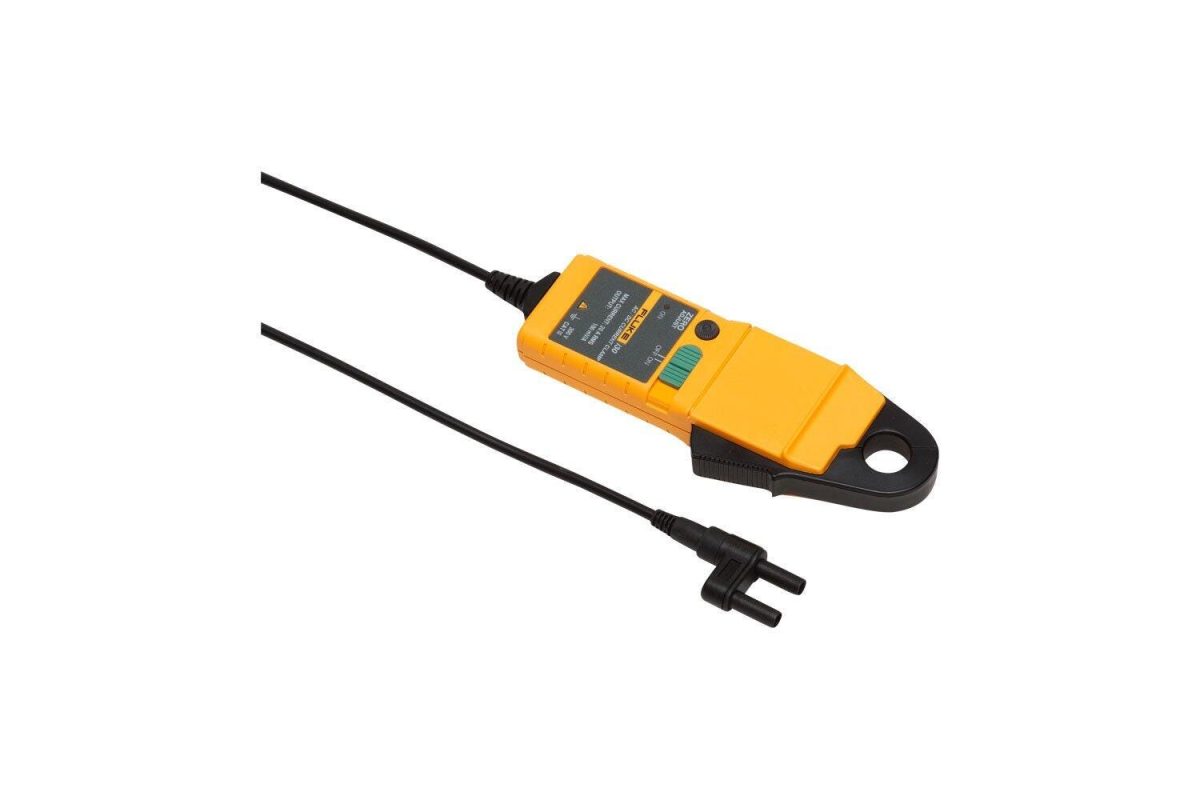

The Fluke i30 AC/DC Current Clamp is a versatile and accurate tool for measuring current in various applications. With its wide current range of 30 mA to 30 A DC and 30 mA to 20 A AC rms, this clamp meter is suitable for a range of tasks, from electrical maintenance to industrial applications.

Fluke i30 Key Features

The Fluke i30 features a high accuracy of ±1 % of reading ±2 mA DC and ±0.5 dB of reading ±2 mA AC, making it an ideal choice for precise current measurement. Additionally, the clamp meter has a long battery life of 30 hours with a 9 V Alkaline battery and a compact design with a 1.5 meters cable length.

Specified current range: 30 mA to 30 A DC, 30 mA to 20 A AC rms
Usable current range: 5 mA to 30 A DC, 30 mA to 20 A AC rms
Crest Factor: 1.4
Output sensitivity: 100 mV/A
Accuracy (at +25°C): DC ±1 % of reading ±2 mA, AC ± 0.5 dB of reading ±2 mA
Resolution: ±1 mA
Load impedance: > 10 k Ohms and ≤ 100pF
Conductor position sensitivity: ±1% relative to center reading
Frequency range: DC to 20 kHz (-0.5 dB)
Temperature coefficient: ±0.01% of reading/°C
Power supply: 9 V Alkaline, MN1604/PP3
Working voltage: 300 V AC rms or DC

Who Needs the Fluke i30?

The Fluke i30 is designed for technicians, engineers, and buyers who require accurate current measurement in various applications. Its compact design and long battery life make it an ideal choice for electrical maintenance, industrial applications, and more.

Fluke i30 Applications

Use for electrical maintenance and troubleshooting in industrial settings
Measure current in AC/DC applications, including motors, generators, and transformers
Test electrical systems and diagnose faults in power distribution networks
Measure current in residential and commercial buildings
Use in research and development applications, including testing and validation of electrical systems
Measure current in automotive and aerospace applications
Use in educational settings for teaching and training purposes

Why Buy Fluke i30 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke i30 AC/DC Current Clamp at competitive prices, ensuring that you get the best value for your money. Our team of experts is always available to provide support and guidance, ensuring that you get the most out of your purchase.

Fluke i30 Specifications

Electrical Specifications
Specified current range	30 mA to 30 A DC, 30 mA to 20 A AC rms
Usable current range	5 mA to 30 A DC, 30 mA to 20 A AC rms
Crest Factor	1.4 in
Output sensitivity	100 mV/A
Accuracy (at +25°C)	DC ±1 % of reading ±2 mA AC ± 0.5 dB of reading ±2 mA
Resolution	±1 mA
Load impedance	> 10 k Ohms and ≤ 100pF
Conductor position sensitivity	±1% relative to center reading
Frequency range	DC to 20 kHz (-0.5 dB)
Temperature coefficient	±0.01% of reading/°C
Power supply	9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section)	300 V AC rms or DC
General Specifications
Maximum conductor size	19 mm diameter
Output connection	4 mm safety connector
Output zero	Manual adjust via thumbwheel
Cable length	1.5 meters
Operating temperature range	0°C to +50°C
Storage temperature range (with battery removed)	-20°C to +85°C
Operating humidity	15% to 85% (non-condensing)
Weight	250 g
Safety	IEC 61010-1, Pollution Degree 2
	IEC 61010-2- 032: CAT III 300V
	Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc andfrequencies below 1 kHz.
EMC Compatibility	IEC 61326-1: Portable Electromagnetic Environment
