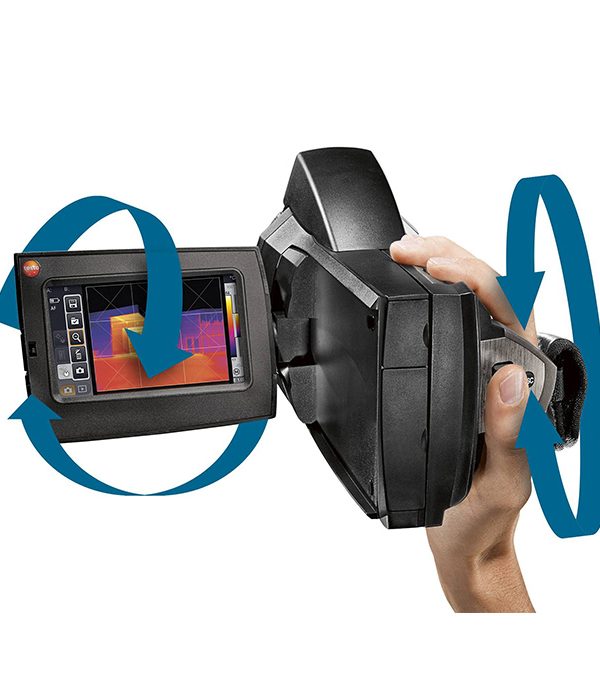

Testo 890 Thermal Imager X5

Testo 890 Thermal Imager X5 Key Features:

  • testo 890 professional thermal imager: resolution 640 × 480 pixels, upgradable to 1280 × 960 pixels with SuperResolution technology, thermal sensitivity < 40 mK
  • Two lenses are included in the kit: a super-telephoto lens and an additional lens (standard, 25° or telephoto lens) which you are free to choose
  • Sequence capturing in the instrument is a possible option, as humidity calculation, SiteRecognition, panorama image assistant, JPEG storage function, and other practical features
  • The kit contains essential accessories, which you will always have to hand: robust case and lens case, spare rechargeable battery, fast battery charger, SD card, lens protective glass, etc.



(1 customer review)
SKU:1561

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 74,050 (excl.VAT)

20People watching this product now!

Testo 890 Thermal Imager X5

Order-Nr.  0563 0890 X5

Testo 890 Thermal Imager X5 with a super-telephoto lens and one additional lens (free choice between standard, 25°, and telephoto lens) can be used for the following measuring tasks:

  • Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance
  • Pinpointing hotspots in solar parks (to locate defective cells)
  • Detecting irregularities in large industrial plants
  • Safe high-temperature measurement
  • Analysis of building shells at a glance
  • Detecting critical temperatures on circuit boards
  • Regular checks in electrical maintenance
  • Analysis of energy distribution systems
  • Carrying out detailed energy consultations

Testo 890 Thermal Imager X5 Specifications:

  • EU-/EG-guidelines: 2004/108/EG
  • Infrared resolution:640 x 480 pixels
  • Thermal sensitivity : ˂ 40 mK at +30 °C
  • Field of view : 42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele)
  • Minimum focus distance: 0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele)
  • Geometric resolution (IFOV): 1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele)
  • SuperResolution (Pixel) : 1280 x 960 pixels
  • SuperResolution (IFOV) : 0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele)
  • Image refresh rate: 33 Hz
  • Focus: auto/manual
  • Spectral range: 7.5 to 14 µm

Image output visual

  • Image size: 3.1 MP
  • Minimum focus distance: 0.5 m
  • Image presentation
  • Display type: 4.3″ LCD touchscreen with 480 x 272 pixels
  • Digital zoom: 1-; 3-fold
  • Display option: IR image / real image
  • Colors: 9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)
  • Video output: USB 2.0, Micro HDMI

Measurement

  • Measuring range : -30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)
  • High temperature measuring: +350 … +1200 °C (not in connection with the telephoto lens)
  • Accuracy : ±2 °C, ±2 % of m.v
  • Emissivity: 0.01; 1
  • Reflected temperature: manual
  • Transmission correction: Included
  • Accuracy high temperature: ±2 °C, ±2 % of m.v.
5
1 review
1
0
0
0
0

1 review for Testo 890 Thermal Imager X5

Clear filters
  1. Bentley

    Bought this unit for work

Add a review

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Testo

Testo Corporation Testo is a world leader in the design, development, and manufacture of portable test and measurement instrumentation and solutions. Backed by 60 years of measuring engineering experience, our mission is to provide the best quality, service, and value in the industry. In addition, Testo is recognized as the leading worldwide manufacturer of portable combustion efficiency analyzers and air emission analyzers. Testo has become a major supplier of HVAC, critical HVAC, refrigeration, airflow, and environmental monitoring instruments for markets as diverse as chemical, food service and production, pharmaceutical and biotechnology, and residential HVAC suppliers.

Data sheet

Data Sheet

Specifications
