Description

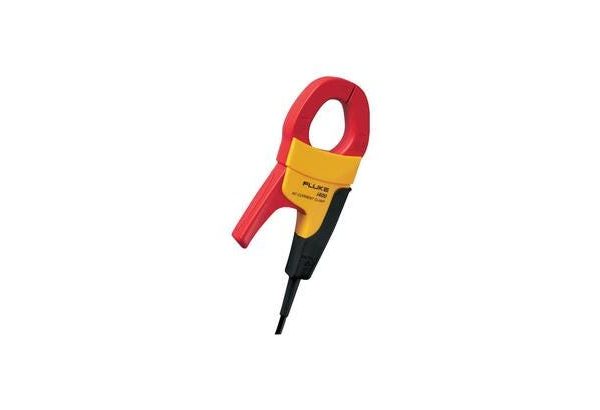

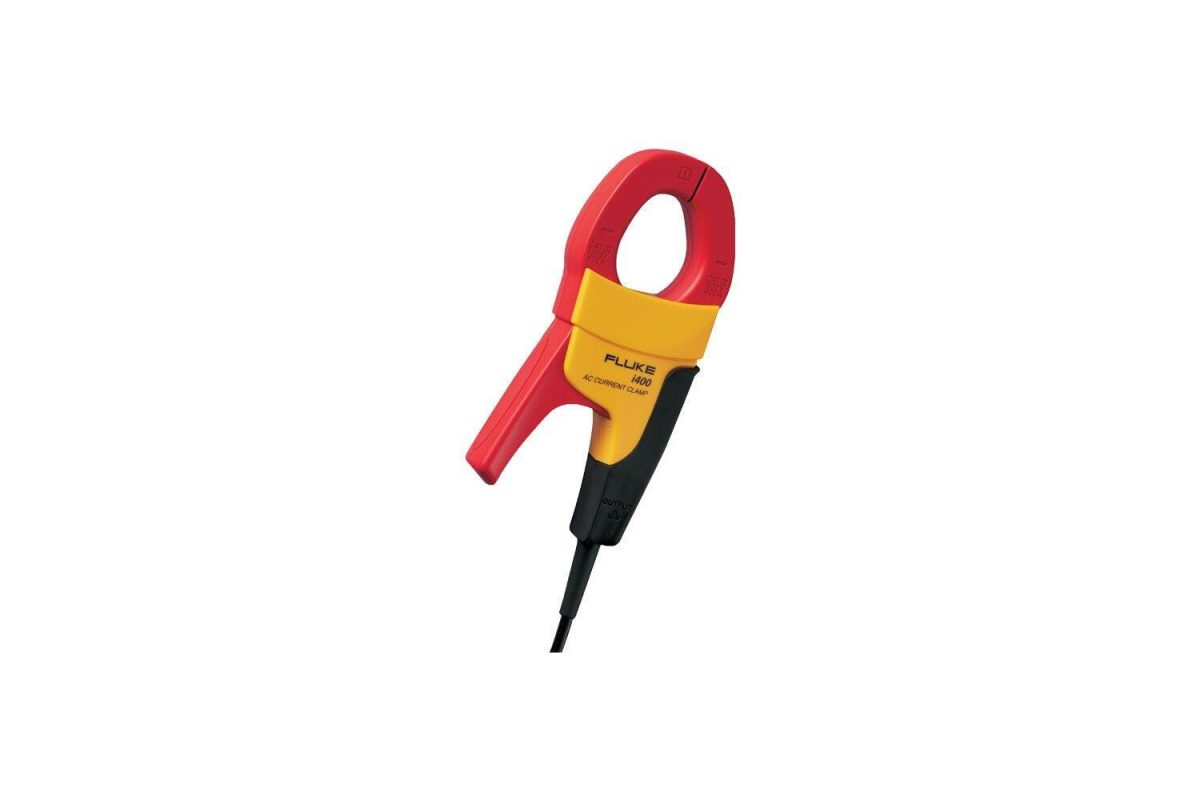

The Fluke i400 AC Current Clamp is designed for measuring AC currents in a variety of applications, from electrical maintenance to industrial settings. With a nominal current range of 400 A and a continuous current range of 1 A – 400 A, this clamp meter is ideal for measuring currents in large electrical systems.

Its basic accuracy of 2% + 0.06 A (45-400 Hz) ensures reliable measurements, while its useable frequency range of 5 Hz – 20 kHz allows for accurate measurements in a wide range of applications.

Fluke i400 Key Features

The Fluke i400 features a CAT IV 600 V, CAT III, 1000 V safety rating, making it suitable for use in a variety of electrical applications. Its output level of 1 mA/A and shrouded banana plugs ensure secure connections and accurate measurements.

Nominal current range: 400 A
Continuous current range: 1 A – 400 A
Maximum non-destructive current: 1000 A
Lowest measurable current: 1 A
Basic accuracy: 2% + 0.06 A (45-400 Hz)
Useable frequency: 5 Hz – 20 kHz
Output level(s): 1 mA/A

Who Needs the Fluke i400?

The Fluke i400 is designed for use by electrical technicians, engineers, and maintenance personnel who need to measure AC currents in a variety of applications. Its accuracy and reliability make it an ideal choice for use in industrial settings, electrical maintenance, and other applications where accurate current measurements are critical.

Fluke i400 Applications

Measure AC currents in electrical panels and distribution systems.
Diagnose electrical issues in industrial settings and electrical maintenance.
Measure currents in large electrical systems such as power plants and substations.
Use in electrical testing and measurement applications.
Measure currents in electrical motors and other electrical equipment.
Use in electrical safety inspections and testing.
Measure currents in electrical wiring and cabling.

Why Buy Fluke i400 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke i400 AC Current Clamp at competitive prices, along with expert technical support and fast shipping. Our experienced staff can help you find the right tool for your needs, and our online store makes it easy to purchase and have your order shipped quickly.

Fluke i400 Specifications

Specifications
Nominal current range	400 A
Continuous current range	1 A – 400 A
Maximum non-destructive current	1000 A
Lowest measurable current	1 A
Basic accuracy	2% + 0.06 A
	(45-400 Hz)
	(% reading + floorspec)
Useable frequency	5 Hz – 20 kHz
Output level(s)	1 mA/A
Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum voltage	1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical and General Specifications
Warranty	1 year
Maximum conductor diameter	32 mm (1.25 in)
Maximum conductor size (busbar)	750 MCM
Output cable length	1.5 m (59 in)
Shrouded banana plugs	Yes
