Fluke TiS75+ Thermal Camera 384x288

Description

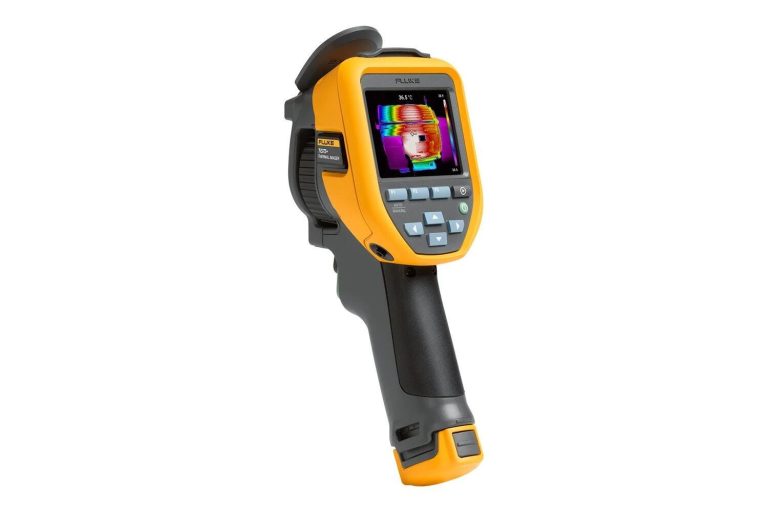

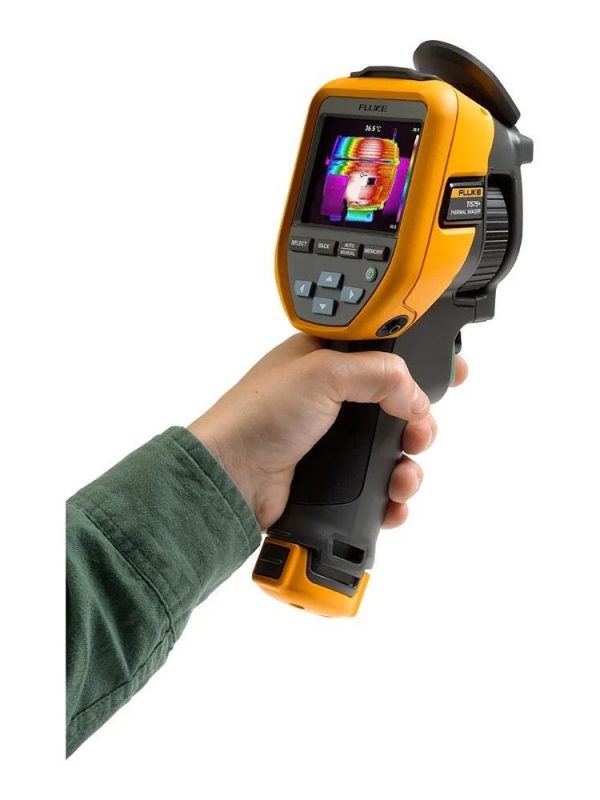

Fluke TiS75+ Thermal Camera

The Fluke TiS75+ is a 384 × 288 handheld thermal camera for electrical, mechanical and building inspections. It measures from -20 °C to 550 °C with 40 mK sensitivity, and combines a 3.5 in touchscreen, IR-Fusion, radiometric video and Fluke Connect Asset Tagging to help you build a proactive maintenance program.

Scan the QR code on an asset and the TiS75+ files each image to that asset, so you can compare temperatures over time and spot developing faults early. Manual focus, 5 spot markers and 5 measurement boxes give you control of every measurement.

Key Features

384 × 288 infrared resolution, 40 mK NETD, 42° × 30° field of view
Measures up to 550 °C, ±2 °C or 2 %
Touchscreen IR-Fusion with AutoBlend and picture-in-picture
IS3 and AVI video recording, up to 5 minutes
Asset Tagging and Fluke Connect wireless sharing
Dew-point calculation for building and moisture work
Two smart batteries and two-bay charger included
Rugged: 2 m drop, IP54, 0.885 kg

Fluke TiS75+ Specifications

Fluke TiS75+ specifications (Fluke)
Infrared resolution	384 × 288 (110,592 pixels)
Thermal sensitivity (NETD)	≤0.04 °C at 30 °C target (40 mK)
Field of view	42° × 30°
Spatial resolution (IFOV)	1.91 mRad
Focus	Manual
Frame rate	9 Hz or 27 Hz models
Temperature range	-20 °C to 550 °C (not calibrated below -10 °C)
Accuracy	±2 °C or 2 % (whichever is greater) at 25 °C ambient
Spectral band	~8 to 14 µm
Emissivity correction	Top-ten material list plus 0.01 to 1.00 numeric adjustment
IR-Fusion	AutoBlend 0 to 100 %, picture-in-picture
Visible camera	640 × 480
Display	3.5 in (8.9 cm) 640 × 480 touchscreen LCD
Palettes	6 (Grayscale, Ironbow, High Contrast, Amber, Hot Metal, Blue Red)
Measurement tools	Centre spot, 5 movable spot markers, 5 measurement boxes (min/max/avg), hot/cold and range colour alarms, dew-point calculation
Video	Standard and radiometric video up to 5 min (.avi and .is3)
Storage	~500 images internal; 4 GB micro SD (>1000 images) included
Image formats	JPEG/BMP or fully radiometric .is2
Annotation	Voice (60 s via Bluetooth headset), text, IR-PhotoNotes
Connectivity	WiFi, Bluetooth, USB; Fluke Connect app and Asset Tagging (QR code)
Battery	Two Li-ion smart batteries; ≥3.5 h each (without WiFi); ≤2.5 h charge; two-bay charger included
Operating temperature	-10 °C to 50 °C
Drop / protection	2 m drop; IP54
Size (H × W × L)	26.7 × 10.1 × 14.5 cm
Weight	0.885 kg with battery
Safety	IEC 61010-1, Pollution Degree 2
Warranty	2 years

TiS75+ vs TiS55+

TiS55+ vs TiS75+ (Fluke product specifications)
Feature	Fluke TiS55+	Fluke TiS75+
Infrared resolution	256 × 192	384 × 288
Field of view	28° × 20°	42° × 30°
NETD	40 mK	40 mK
Temperature range	-20 to 550 °C	-20 to 550 °C
Video	Not listed (.jpg / .is2 images)	.avi and .is3 video

Typical Applications

Electrical panels, switchgear, breakers and connections
Motors, bearings, pumps and other rotating equipment
HVAC, steam and process piping
Building envelopes, insulation gaps and moisture (with dew-point calculation)

Compare Other Fluke Thermal Cameras

For a lower price point, see the Fluke TiS20+ or TiS55+. Need more detail? See the Fluke TiS60+, Ti300+ or Ti480 PRO. For spot checks, add a Fluke 62 MAX+ infrared thermometer. Read our thermal camera buying guide, or browse all thermal cameras and more Fluke products.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke TiS75+ FAQ

What is the resolution of the Fluke TiS75+?

384 × 288 infrared pixels (110,592), with 40 mK thermal sensitivity and a 42° × 30° field of view.

What temperature range does the TiS75+ measure?

-20 °C to 550 °C (not calibrated below -10 °C), with accuracy of ±2 °C or 2 %, whichever is greater.

What is the difference between the TiS75+ and TiS55+?

Both share the same body, range and accuracy. The TiS75+ has higher 384 × 288 resolution (vs 256 × 192), a wider 42° × 30° field of view, AVI and IS3 video recording, and comes with two batteries and a two-bay charger.

Can the TiS75+ record video?

Yes. It records standard and radiometric video up to 5 minutes in .avi and .is3 formats.

What is Asset Tagging?

You scan a QR code on each asset, and the camera files the images to that asset in Fluke Connect, so you can compare inspections over time.

Which frame rate should I choose, 9 Hz or 27 Hz?

Apart from frame rate the specifications are the same. The 27 Hz version gives smoother images on moving targets. Ask us which version is available.

What is included with the Fluke TiS75+?

Imager, AC power supply with adapters, two-bay charger, two Li-ion batteries, USB cable, 4 GB micro SD card, and a hard case with soft bag and hand strap.
