Description

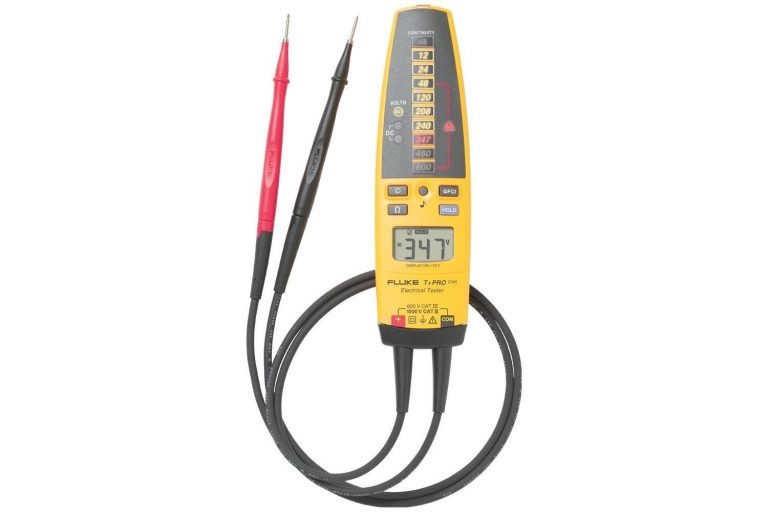

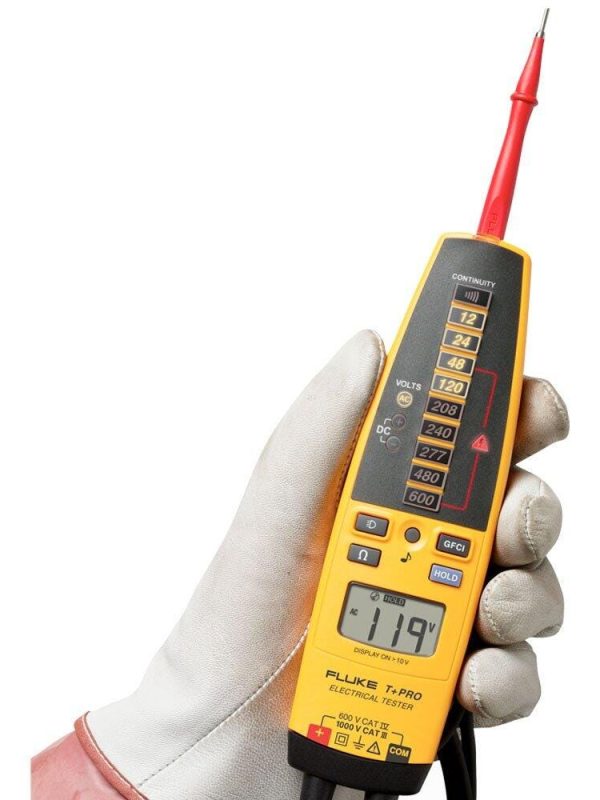

The Fluke T+Pro Electrical Tester is a reliable and accurate tool for technicians and engineers. With its compact and lightweight design, it’s easy to use and transport, making it perfect for electrical testing and troubleshooting on the go.

Measuring AC and DC voltage, resistance, and more, the Fluke T+Pro is a versatile and essential tool for any electrical professional.

Fluke T+Pro Key Features

The Fluke T+Pro Electrical Tester features a range of key specifications, including:

Temperature: Operating -30°C to 60°C (-22°F to 140°F), Storage -30°C to 60°C (-22°F to 140°F)
Relative Humidity: 90% 75%: 30°C to 40°C (86°F to 104°F), 45%: 40°C to 50°C (104°F to 122°F)
Altitude: Operating 10,000 m (approx. 32,808.4 ft), Storage 10,000 m (approx. 32,808.4 ft)
Battery Type/Life: AAA (2); 40 hours
Shock, Vibration: Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety: ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 – 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E 1 AC Bandwidth: 45 Hz to 66 Hz
Maximum Working Voltage: 1000 V AC/DC
Maximum Measurable Voltage: 600 V AC/DC
Duty Cycle: Indefinitely for voltages up to 240 V, For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off, For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage Hazard LED: LEDs turn on at voltages > 30 V AC/DC ±35% LED Voltage Indication Levels: 12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V LEDs: LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCDAccuracy: AC voltage DC voltage: ±(2% rdg + 2 digits) Resistance: ±(5% rdg + 3 digits)
LCDAccuracy: LCD Resolution: 0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V 0.01 kΩ for resistance measurement
GFCI Test Current: 100 V – 150 V @ 6 mA – 9 mA AC, 150 V – 240 V < 12 mA
Standard Input Test Current: < 5 mA
Size (H x W x L): 1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
Weight: 9.9 oz (0.28 kg)

Fluke T+Pro Specifications

Specifications
Temperature	Operating	-10°C to 55°C (14°F to 131°F)
	Storage	-30°C to 60°C (-22°F to 140°F)
Relative Humidity	90%	0°C to 30°C (32°F to 86°F)
	75%	30°C to 40°C (86°F to 104°F)
	45%	40°C to 50°C (104°F to 122°F)
Altitude	Operating	2,000 m (approx. 6,561.6 ft)
	Storage	10,000 m (approx. 32,808.4 ft)
Battery Type/Life	AAA (2); 40 hours
Shock, Vibration	Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 – 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E¹
AC Bandwidth	45 Hz to 66 Hz
Maximum Working Voltage	1000 V AC/DC
Maximum Measurable Voltage	600 V AC/DC
Duty Cycle	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage Hazard LED	LEDs turn on at voltages > 30 V AC/DC ±35%
LED Voltage Indication Levels	12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
LEDs	LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCD Accuracy	AC voltage	±(3% rdg + 2 digits)
	DC voltage	±(2% rdg + 2 digits)
	Resistance	±(5% rdg + 3 digits)
LCD Resolution	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
	0.01 kΩ for resistance measurement
GFCI Test Current	100 V – 150 V @ 6 mA – 9 mA AC, 150 V – 240 V < 12 mA
Standard Input Test Current	< 5 mA
Size (H x W x L)	1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
Weight	9.9 oz (0.28 kg)
1. When used properly per Article 110.9 Use of Equipment (A) Test Instruments and Equipment.
