Description

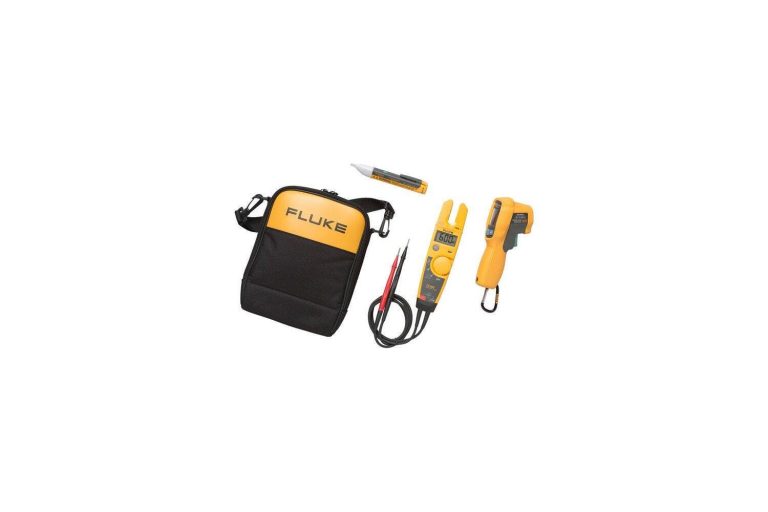

The Fluke T5-600/62MAX+/1AC II is a versatile and reliable electrical tester and voltage detector kit, designed to meet the needs of professionals in various industries. With its high-accuracy measurements and compact design, this kit is perfect for electrical contractors, maintenance personnel, and engineers who require precise temperature and electrical measurements.

Whether you’re working on residential, commercial, or industrial projects, the Fluke T5-600/62MAX+/1AC II has got you covered. Its CAT IV 600 V safety rating ensures safe and reliable measurements, while its ergonomic design makes it easy to handle and maneuver in tight spaces.

Fluke T5-600/62MAX+/1AC Key Features

The Fluke T5-600/62MAX+/1AC II features a range of key specifications, including:

Max wire size: 1/0 THHN cable
Current range AC rms: 0 to 100.0 A
Accuracy AC current (50/60 Hz): 3% ± 3 counts
Voltage range AC: 0 to 600 V
Accuracy AC voltage: 1.5% ± 2 counts
Resistance range: 0 to 1000 Ω
Continuity beeper threshold: On at 400 Ω
Volts indicator LED threshold: Guaranteed on by 30 V AC

Who Needs the Fluke T5-600/62MAX+/1AC?

The Fluke T5-600/62MAX+/1AC II is designed for professionals who require precise electrical and temperature measurements. This includes electrical contractors, maintenance personnel, engineers, and technicians who work on residential, commercial, or industrial projects.

Fluke T5-600/62MAX+/1AC Applications

Electrical panel testing: Measure voltage, current, and resistance in electrical panels
Wire testing: Test wire size and continuity with the Fluke T5-600/62MAX+/1AC II
Temperature measurement: Use the IR thermometer to measure temperature in various applications
Electrical troubleshooting: Identify electrical issues with the Fluke T5-600/62MAX+/1AC II
Industrial maintenance: Use the Fluke T5-600/62MAX+/1AC II for routine maintenance and testing
Residential electrical work: Measure voltage, current, and resistance in residential electrical systems

Why Buy Fluke T5-600/62MAX+/1AC from mme-ae?

At mme-ae, we offer the Fluke T5-600/62MAX+/1AC II at competitive prices, with a 2-year warranty and excellent customer support. Our team of experts is always available to assist you with any questions or concerns you may have.

Fluke T5-600/62MAX+/1AC Specifications

Specifications
Jaw opening	12.9 mm (0.5 in)
Max wire size	1/0 THHN cable
Current range AC rms	0 to 100.0 A
Accuracy AC current (50/60 Hz)	3% ± 3 counts
AC Response	Averaging
Voltage range AC	0 to 600 V
Accuracy AC voltage	1.5% ± 2 counts
Voltage range DC	0 to 600 V
Accuracy DC voltage	1% ± 1 count
Resistance range	0 to 1000 Ω
Continuity beeper threshold	On at 400 Ω
Volts indicator LED threshold	Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Humidity (without condensation)	0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)
Dust/water resistance	Yes
Operating altitude	2000 meters max
Temperature coefficient	0.1 x (specified accuracy)/°C ( 28°C)
Safety Specifications
Measurement Category	IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals	CSA, TUV
Maximum voltage	600 V between any terminal and earth ground
Mechanical and General Specifications
Size	30.5 x 51 x 203 mm
Weight	300 g
Warranty	Two-years
Battery life	200 hour zinc chloride, 400 hour alkaline
Battery type	2 x AA
Low battery indicator	Yes
Current sensor opening	12.9 mm
Calibration cycle	1 year
Test leads	Type	Heavy duty, flexible leads rated for 1000 V use. Field replaceable leads terminate in male shrouded banana plugs
	Probes	One red, one black. Detachable Slim-Reach™ probe tips
	Styles	TP1 Slim Reach™ test brobes
Safety Specifications
Safety	CAT IV 600 V, CAT III, 1000 V
Maximum voltage	1000 V AC rms from earth to ground, in compliance with EN61010
