Description

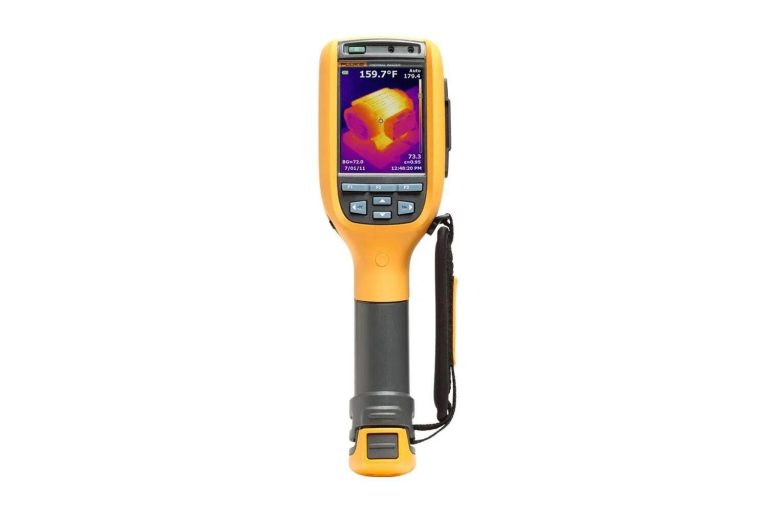

The Fluke Ti100 is a versatile, rugged, and lightweight infrared camera designed for general use. Its advanced features and user-friendly interface make it an ideal tool for technicians and engineers.

With its focus-free design and wireless connectivity, the Fluke Ti100 allows for easy and convenient use in a variety of applications.

Fluke Ti100 Key Features

The Fluke Ti100 boasts an impressive array of features, including:

IFOV (spatial resolution): 3.39 mRad
Detector resolution: 160×120 (19,200 pixels)
Field of view: 22.5 °H x 31 °V
Minimum focus distance: 122 cm (48 in)
Wireless connectivity: Fluke Connect app compatible with included wireless SD Card
Display: 3.5 inch diagonal (portrait format)
Thermal sensitivity (NETD): ≤ 0.10 °C at 30 °C target temp (100 mK)
Temperature measurement range: -20 °C to +250 °C (-4 °F to +482 °F)

Who Needs the Fluke Ti100?

The Fluke Ti100 is designed for technicians and engineers who require a reliable and accurate infrared camera for a variety of applications.

Its advanced features and user-friendly interface make it an ideal tool for anyone who needs to measure temperature, detect heat leaks, or inspect electrical systems.

Fluke Ti100 Applications

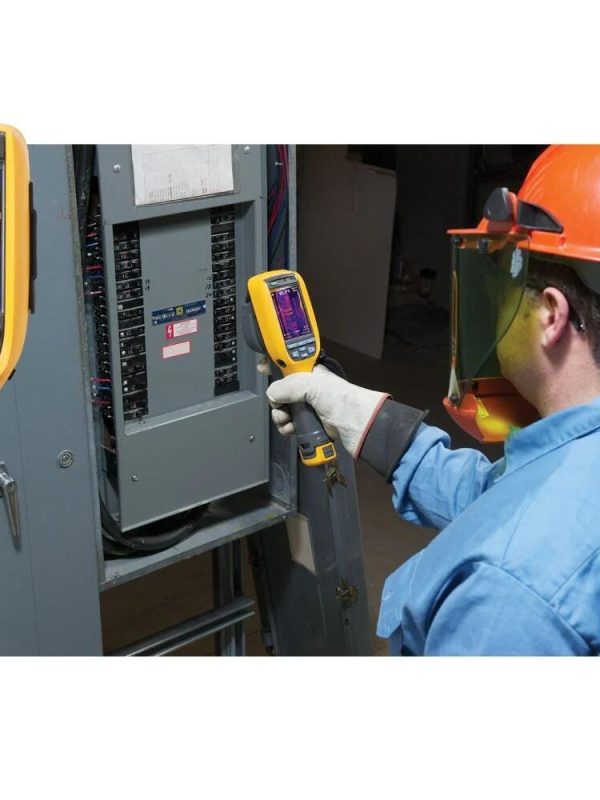

Electrical panel inspections
HVAC system diagnostics
Building envelope inspections
Industrial process monitoring
Automotive system testing
Research and development

Why Buy Fluke Ti100 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke Ti100 at a competitive price, along with exceptional customer service and support.

Our team of experts is always available to answer any questions you may have and provide guidance on the best use of the Fluke Ti100 for your specific needs.

Fluke Ti100 Specifications

Key Features
IFOV (spatial resolution)	3.39 mRad
Detector resolution	160×120 (19,200 pixels)
Field of view	22.5 °H x 31 °V
Minimum focus distance	122 cm (48 in)
Focus system	Focus free (fixed focus)
Wireless connectivity	Fluke Connect™ app compatible with included wireless SD Card¹
Display	3.5 inch diagonal (portrait format)
Design	Rugged, lightweight, ergonomic design for one-handed use
Thermal sensitivity (NETD)	≤ 0.10 °C at 30 °C target temp (100 mK)
Temperature measurement range	-20 °C to +250 °C (-4 °F to +482 °F)
Built-in digital camera (visible light)	None – IR only
Frame rate	9 Hz
Data Storage and Image Capture
Extensive memory options	Removable 4 Gb SD memory card and 8 Gb wireless SD card (where available); direct download via USB-to-PC connection
File formats image	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp, .jpg) files
SmartView® software	SmartView® software, Fluke Connect™¹, and SmartView® Mobile App—full analysis and reporting software
Battery
Batteries (field-replaceable, rechargeable)	One lithium ion smart battery pack with five-segment LED display to show charge level
AC battery charging system	In-imager charging. Optional two-bay battery charger or optional 12 V automotive charging adapter
Temperature Measurement
Accuracy	± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
General Specifications
Color palettes	4 standard: Ironbow, Blue-Red, Amber, Grayscale
Drop	Engineered to withstand 2 meter (6.5 feet) drop
Size (H x W x L)	28.4 cm x 8.6 cm x 13.5 cm (11.2 in x 3.4 in x 5.3 in)
Weight (battery included)	0.73 kg (1.6 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Notes
¹Fluke Connect™ not available in all countries
