Description

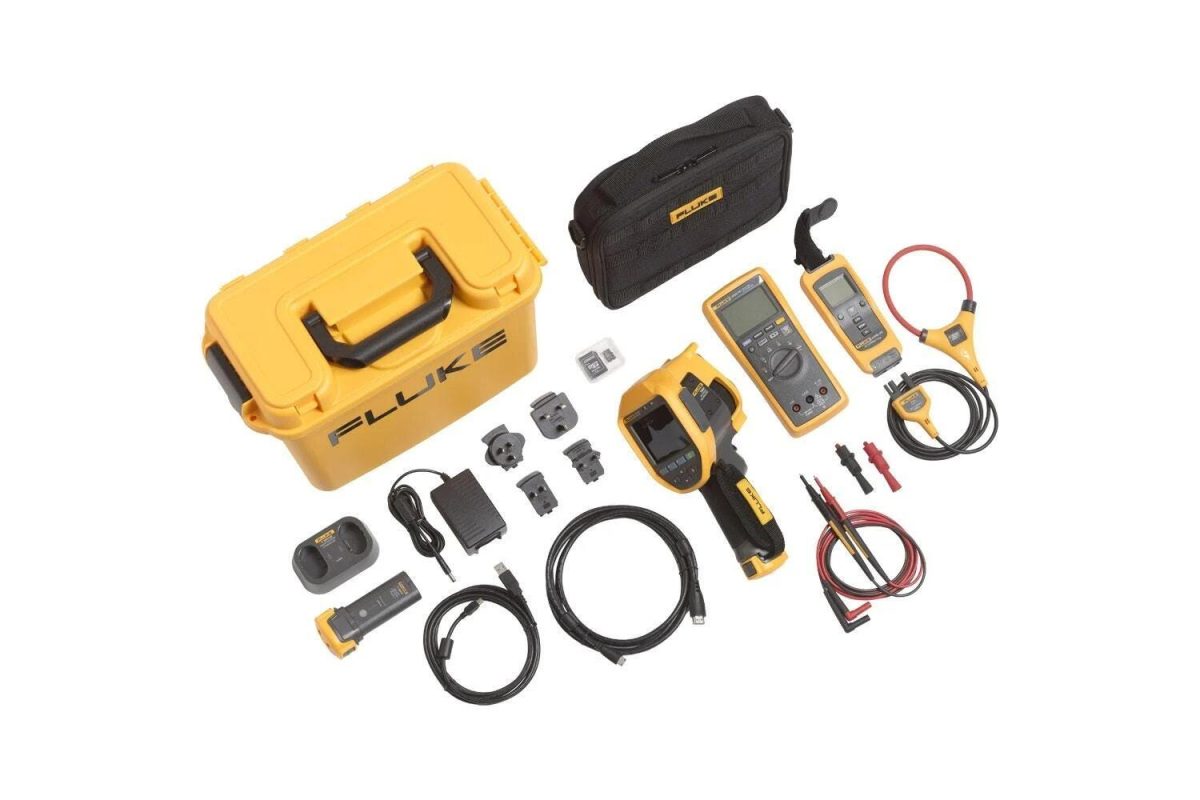

The Fluke Ti125 a3001 FC iFlex Kit is a versatile and accurate multimeter designed for electrical measurements. With its iFlex lead, you can safely and easily measure electrical currents and voltages.

This multimeter features overload protection and a fast fuse, ensuring your safety while working with electrical systems.

Fluke Ti125 Key Features

The Fluke Ti125 is a feature-rich multimeter that offers a range of benefits for electrical technicians and engineers.

mA function with overload protection: Fused, 44/100 A, 1000 V FAST Fuse
MIN/MAX recording accuracy: ±12 counts for changes > 350 mS in duration
DC functions: ±12 counts for changes > 350 mS in duration
AC functions: ±40 counts for changes > 900 mS in duration
General specifications: Maximum voltage between any terminal and earth ground: 1000 V DC or AC RMS
Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse
Display (LCD): Update rate Volts, amps, ohms: 6000 counts
Frequency: 10,000 counts
Capacitance: 1,000 counts
Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life: 250 hours minimum
RF communications: 2.4 GHZ ISM Band
RF communication range: Open air, unobstructed
Obstructed, sheetrock wall: Up to 6.5m
Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m

Who Needs the Fluke Ti125?

The Fluke Ti125 is designed for electrical technicians and engineers who require accurate and reliable measurements in a variety of applications.

Whether you’re working on electrical systems, testing equipment, or troubleshooting issues, the Fluke Ti125 is an essential tool for your toolkit.

Fluke Ti125 Applications

Electrical system testing: Measure electrical currents and voltages with the Fluke Ti125.
Equipment testing: Use the Fluke Ti125 to test electrical equipment and ensure it’s functioning properly.
Troubleshooting: Identify electrical issues with the Fluke Ti125’s accurate measurements.
Electrical maintenance: Use the Fluke Ti125 to perform routine electrical maintenance tasks.
Electrical inspections: Measure electrical currents and voltages during electrical inspections.
Electrical research: Use the Fluke Ti125 to conduct electrical research and development.

Why Buy Fluke Ti125 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke Ti125 at competitive prices, along with exceptional customer service and support.

Our team of experts is always available to answer your questions and provide guidance on the Fluke Ti125’s features and applications.

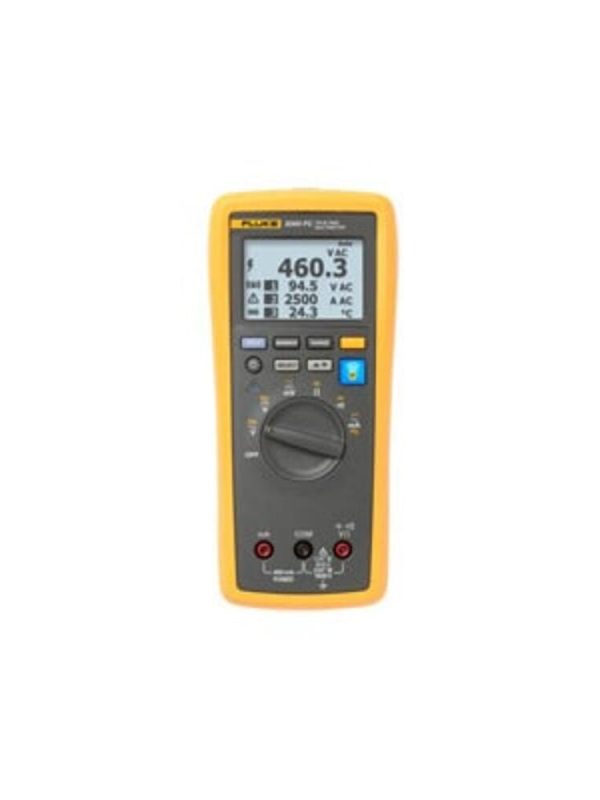

Fluke Ti125 Specifications

mA Function
Overload protection	Fused, 44/100 A, 1000 V FAST Fuse
Overload	600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX recording zccuracy
DC functions	The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration.
AC functions	The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration.
General specifications
Maximum voltage between any terminal and earth ground	1000 V DC or AC RMS
Ω fuse protection from A inputs	0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD)	Update rate	4/sec
	Volts, amps, ohms	6000 counts
	Frequency	10,000 counts
	Capacitance	1,000 counts
Battery type	Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life	250 hours minimum
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed	Up to 20m
	Obstructed, sheetrock wall	Up to 6.5m
	Obstructed, concrete wall, or steel electrical enclosure	Up to 3.5m
Temperature	Operating: -10 °C to 50 °C Storage: -40 °C to 60 °C
Temperature coefficient	0.1 x (specified accuracy) / °C (28 °C)
Relative humidity	0% to 90% (0 °C to 35 °C) 0% to 75% (35 °C to 40 °C) 0% to 45% (40 °C to 50 °C)
Altitude	Operating: 2,000 m Storage: 12,000 m
Electromagnetic compatibility EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance	ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010
Certifications	CSA, FCC, CE
Ingress Protection (IP) rating	IP54
Pollution degree	2
Size (H x W x L)	4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight	340 g (12 oz)
Warranty	Three years
Note: Not compatible with Fluke CNX test tools

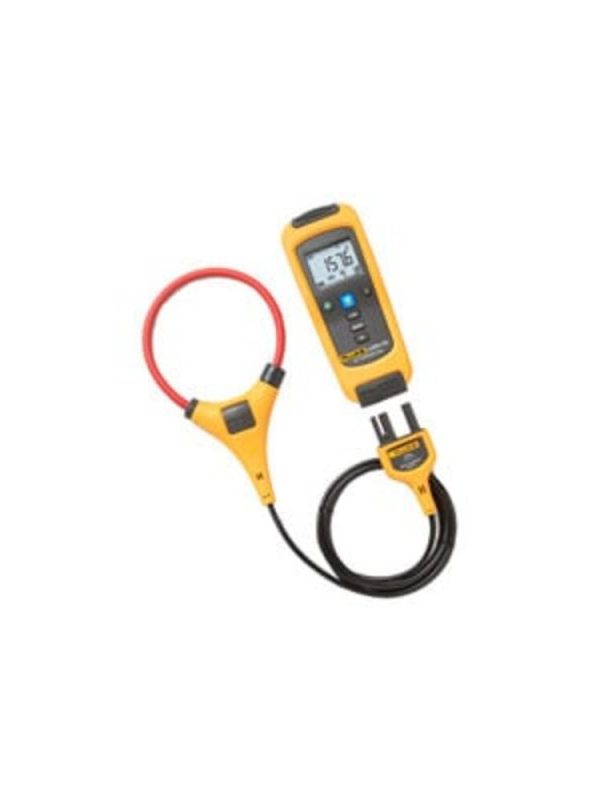

Specifications
Range	0.5 A to 2500 A AC
Resolution	0.1 A
Accuracy	3% ±5 digits (5 Hz to 500 Hz)
Crest factor (50 Hz/60 Hz)	3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, add 2% for C.F. > 2
LCD w/backlight	3½ digits
Log rate/interval	1 sec minimum/adjustable by PC or front panel
Battery type	2 AA, NEDA 15 A, IEC LR6
Battery life	400 hours
Memory	Record up to 65,000 readings
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
	Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Temperature coefficient	Add 0.1 x (specified accuracy)/ °C (28 °C)
Operating humidity	90% at 35 °C, 75% at 40 °C, 45% at 50 °C
Altitude	Operating: 2,000 m Storage: 12,000 m
EMC	EN 61326-1:2006
Safety compliance	IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
Safety rating	CAT IV 600 V, CAT III 1000 V
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating	IP42
Pollution degree	2
Jaw opening	25.4 cm (10 in) coil
Size (H x W x D)	16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)
Weight	.22 kg (8 oz)
Warranty	Three years
Note: Not compatible with Fluke CNX test tools
