Description

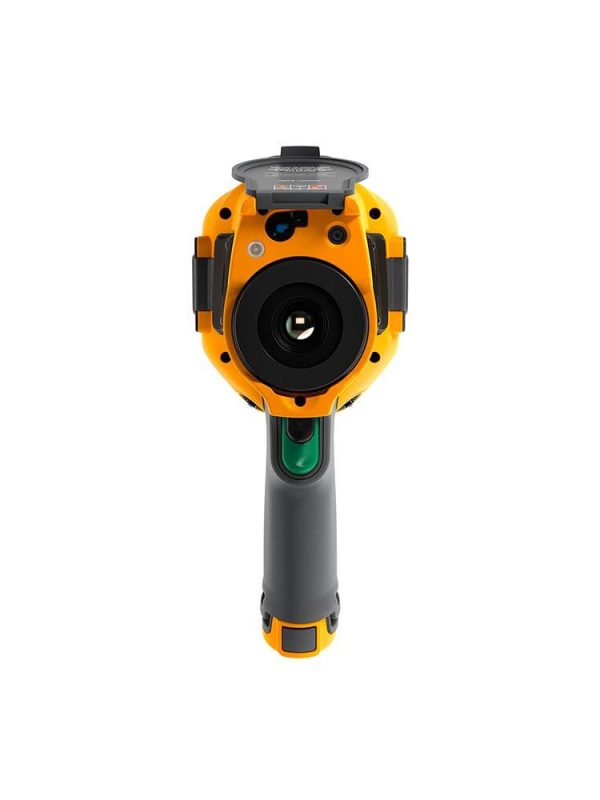

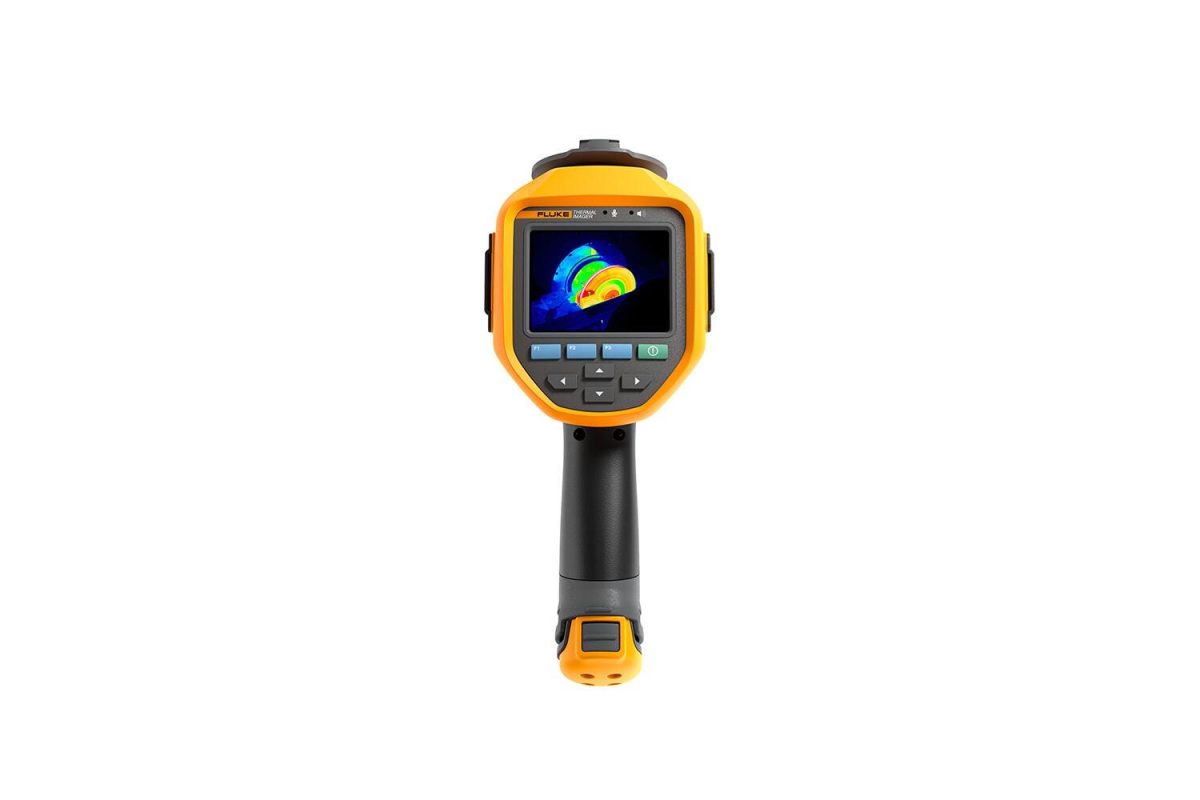

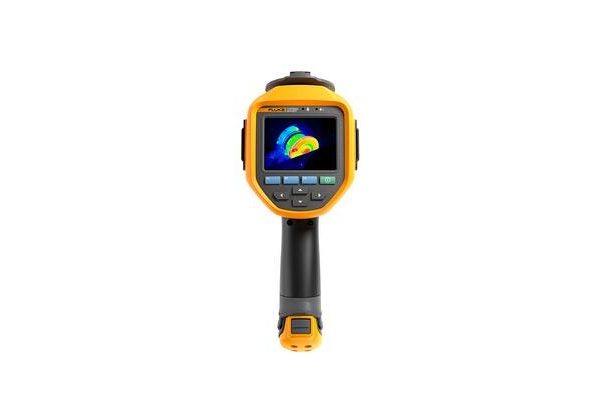

The Fluke Ti480U is a cutting-edge thermal imager designed for high-precision temperature measurement and analysis. With its advanced features and user-friendly interface, this device is ideal for a wide range of applications, from industrial maintenance to research and development.

Whether you’re a seasoned technician or a newcomer to thermal imaging, the Fluke Ti480U is a powerful tool that can help you optimize your workflow and improve your results.

Fluke Ti480U Key Features

The Fluke Ti480U boasts an impressive array of features, including:

640 × 480 IR resolution for high-quality thermal images
Uncooled focal plane infrared detector for accurate temperature measurement
Thermal sensitivity of 50 mk (0.05 °C) for precise temperature detection
Temperature range of -20 °C to 1200 °C for a wide range of applications
Advanced analysis and measurement capabilities for in-depth data analysis
Compact and ergonomic design for comfortable use and easy storage
Long battery life and durable construction for reliable performance

Who Needs the Fluke Ti480U?

The Fluke Ti480U is designed for professionals who require high-precision temperature measurement and analysis. This includes:

Industrial maintenance technicians

Research and development engineers

Quality control inspectors

Facilities managers

Anyone who needs to measure and analyze temperature in a variety of applications

Fluke Ti480U Applications

Industrial maintenance: Use the Fluke Ti480U to detect temperature anomalies and optimize equipment performance.
Research and development: Utilize the Fluke Ti480U to measure and analyze temperature in various experiments and applications.
Quality control: Use the Fluke Ti480U to inspect products and detect temperature-related defects.
Facilities management: Employ the Fluke Ti480U to monitor temperature in buildings and detect potential issues.
Power generation: Use the Fluke Ti480U to measure temperature in power generation equipment and optimize performance.
Oil and gas: Utilize the Fluke Ti480U to detect temperature anomalies in oil and gas equipment.

Why Buy Fluke Ti480U from mme-ae?

The Fluke Ti480U is a high-quality thermal imager that offers advanced features and user-friendly interface. When you buy from mme-ae, you can trust that you’re getting a reliable product from a reputable supplier.

Fluke Ti480U Specifications

Function Parameter	Fluke Ti480u	Fluke Ti401u	Fluke Ti300u
Basic Parameters
IR resolution	640 × 480	640 × 480	384 × 288
SuperResolution	1280 × 960	–	–
Detector type	Uncooled focal plane infrared detector
Thermal sensitivity (NETD) @ 30 °C	50 mk (0.05 °C)	75 mk (0.075 °C)	75 mk (0.075 °C)
Spectral response	7 to 14 μm
Image frame rate	9 Hz	9 Hz	9 Hz
Lens Field of View (FOV)	25° x 19°
Spatial resolution (IFOV)	0.68 mrad	0.68 mrad	1.14 mrad
Minimum imaging distance	0.25 m		0.1 m
Lens focal distance	f 24.8		f 15
Focus	Auto / Manual Focus
Lens recognition	Auto
Optional lens	2x telephoto lens
	4x telephoto lens
	Wide-angle lens
Digital Zoom	1-10x	1-10x	1-4x
Measurement Analysis
Temperature range	-20 °C to 1200 °C	-20 °C to 650 °C
Temperature measurement range	-20 °C to 120 °C	-20 °C to 120 °C
	0 °C to 650 °C	0 °C to 650 °C
	300 °C to 1200 °C
Intelligent range	Yes	Yes	Yes
Temperature accuracy	±2 °C or 2%, whichever is greater (@ 23 °C ± 5 °C ambient temperature)
Temperature measurement area	Spots: 16
	Lines: 8
	Areas: 12
Global temperature measurement correction	Support emissivity, environment temperature, reflected temperature, relative humidity, temperature measurement distance, IR window (temperature and transmittance) correction
Area temperature measurement correction	Yes
Area audible alarm	Support high and low temperature alarm for the highest, lowest and average temperature of the area
Temperature rise function	Reference temperature can be the highest, lowest, or custom temperature of the area
On-Imager analysis	The thermal photos or videos are directly analyzed in the Imager
Analysis software for PC	SmartView IR
Image Display
Display Screen	3.5″ LCD, 640 × 480
Image mode	Thermal image, Visible image, PIP, Fusion
Palettes	Grey, Iron 10, IronRed, Rainbow, Grey10, GreyRed, MidGrey, Yellow and Rain
	Palettes can be inverted
	Support real-time palette preview and switching
Temperature span mode	Support automatic adjustment of temperature span (min. 3 °C)
	Support manual adjustment of temperature span (min. 2 °C)
	The maximum and minimum value of temperature span can be selected by touch (min. 2 °C)
Color and audible alarm	Yes. Above the temperature, below the temperature and between the temperature
Information displayed on the image	Display the global maximum, minimum, average temperature and temperature measurement parameters
High/low temperature tracking	Marking and automatically tracks high and low temperature points
IR-Fusion
Blending degree of a visual photo and an infrared thermal image	0% to 100%
Picture-in-Picture (PIP)	Yes. The size, position and blending degree of infrared window can be adjusted
Shooting Function
Digital camera	Industrial grade digital camera with 13-megapixel lens
Memory card	Micro SD card, standard 64 GB; expandable to 128 GB
Shooting Mode	Support single frame and time-lapse shooting
Image format	.bmp .jpg
Screen freeze	Support single frame shooting and fully-radiometric video recording	Support single frame shooting	Support single frame shooting and fully-radiometric video recording
Code scanning function	Yes. A QR code can be scanned as a label
Annotation function	Support voice, text and label annotation
Fully-radiometric video recording	Support thermal video recording for analysis	–	Support thermal video recording for analysis
Non-fully-radiometric video recording	Support thermal video, visible video recording (only for viewing, not for analysis)	–	Support thermal video, visible video recording (only for viewing, not for analysis)
Video frame rate	1 Hz to 9/16 Hz	–	1 Hz to 9/16 Hz
Video Format	.is5, .mp4	–	.is5, .mp4
Gallery	Support viewing, editing and deleting captured images and video files
Data Connection
Bluetooth connection	Support BT4.2 LE
USB interface	Type-A, USB 2.0
HDMI interface	Mini HDMI interface, HDMI 1.4
Fully-radiometric video analysis via PC software	Yes	–	Yes
Remote display via software	Yes	–	Yes
Remote operation via software	Yes	–	Yes
HDMI output	Support connection to a display or a projector via the HDMI interface
Ancillary Function
Laser	Yes
Temperature feature measurement	Support measuring the length of the temperature measurement line; support measuring the rectangular and circular area of the temperature measurement area
LED torch/flashlight	Support flashlight and flash mode
Power System
Battery type	7.2V, 19Whr lithium battery, replaceable and rechargeable on field
Battery life	2 to 3 hours/battery (*Actual life depends on settings and usage)
Charge Mode	10-15 V DC charging
Charging time	2.5 hours to full charge
Energy saving management	Auto screen-off
Battery charge	Ti SBC3B Two Bay Battery Charger (100 V ac to 240 V ac, 50/60 Hz, included), or in-Imager charging. Optional 12 V automotive charging adapter.
External power supply	Power adapter (110 to 220 V, 50/60 Hz AC power)
Reliability and Certification
Safety standard	IEC 61010-1: pollution degree 2
Electromagnetic Compatibility (EMC)	International: IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)
Radio frequency	2400 MHz to 2483.5 MHz
Radio output power	<100 mW
Laser	IEC 60825-1, Class 2; 650 nm; <1 mW
Ingress protection rating	IEC 60529: IP52
Drop test	Designed for 1 m drop resistance
Physical Parameter
Operating temperature	-10 °C to 50 °C
Storage temperature	-20 °C to 50 °C, without battery
Relative humidity	0% to 95% (non-condensing)
Dimensions	27.9 cm x 12.2 cm x 17.5 cm
Weight	1215 g		1188 g
Warranty and Maintenance
Warranty	2 years
Recommended calibration period	2 years
Supported Languages
Supported languages	Simplified Chinese, English, Japanese, Korean, Traditional Chinese
Optional Lenses
Lens name	Field of view	Minimum imaging distance
Standard lens	25° x 19°	0.1 m (Ti300U)，0.25 m (Ti480/401U)
Wide-angle lens	44° x 34°	0.1 m
2x telephoto lens	12° x 9°	1.0 m (Ti480U/401U), 0.25 m (Ti300U)
4x telephoto lens	7° x 5°	3.0 m (Ti480U/401U), 1 m (Ti300U)
