Description

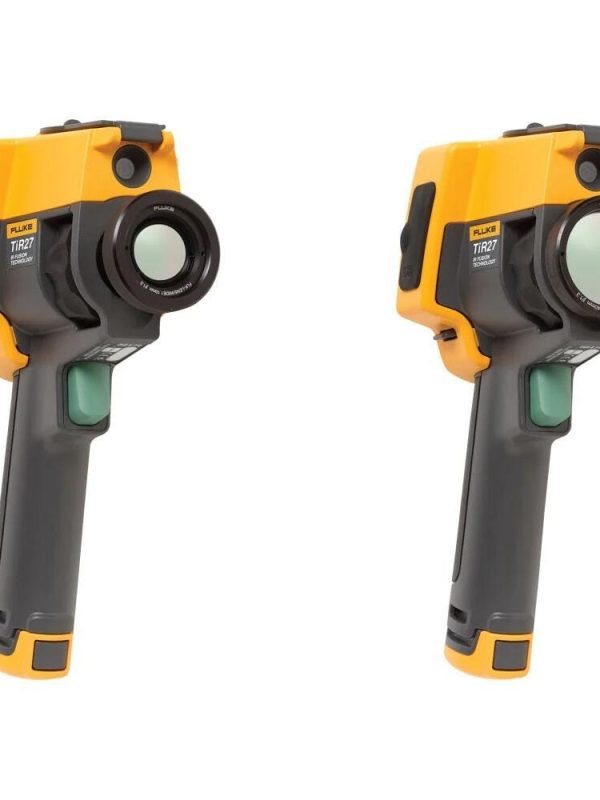

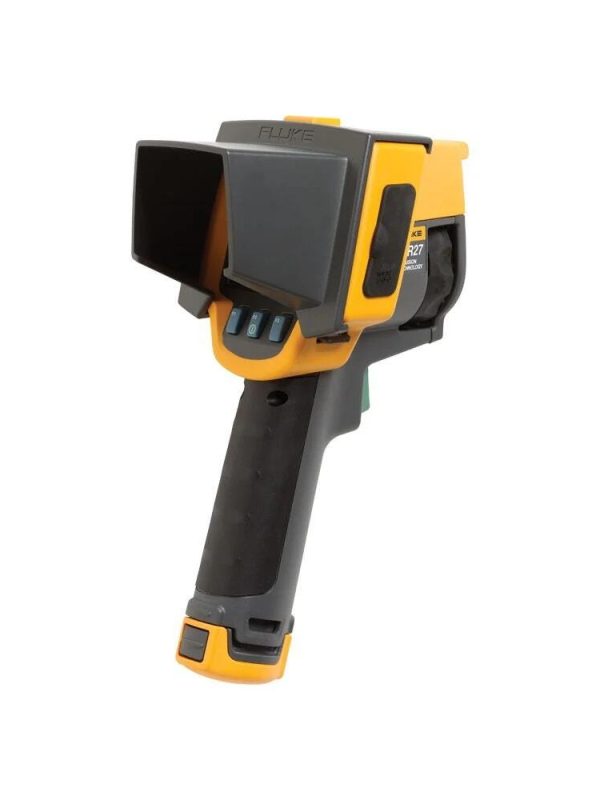

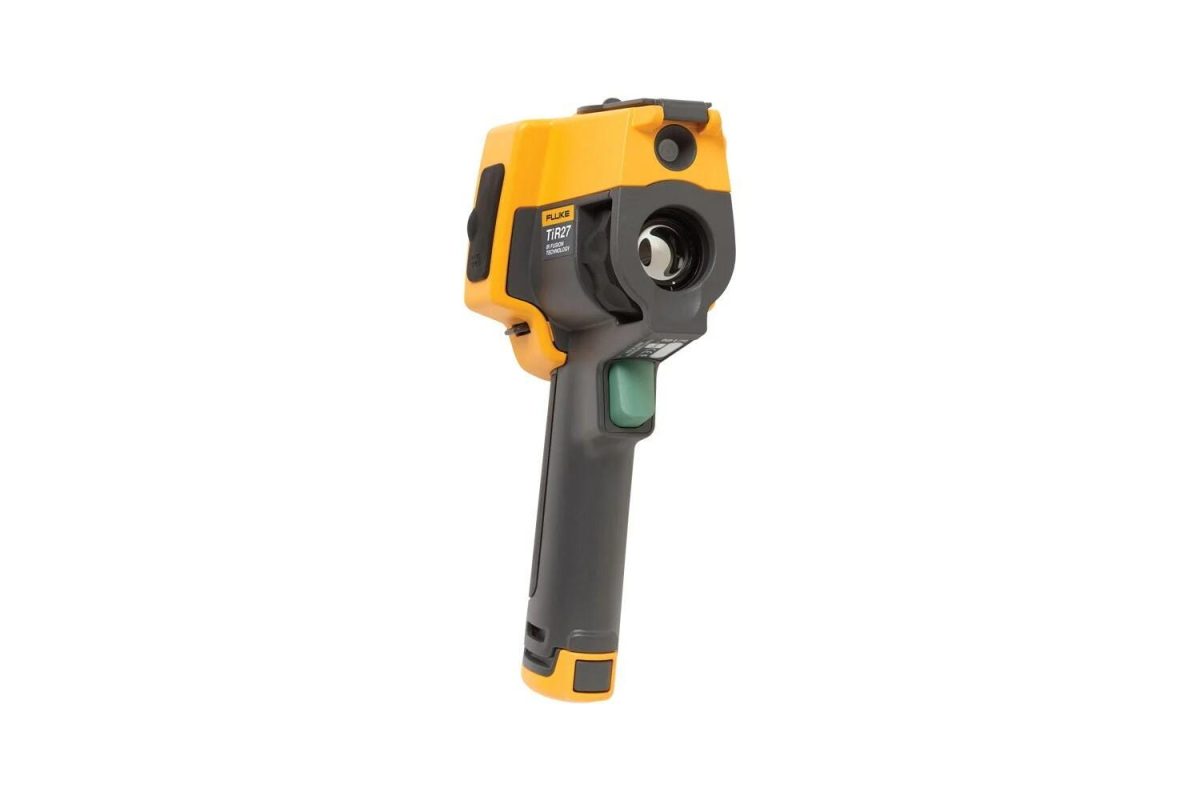

The Fluke TiR27 Infrared Camera is a powerful tool for detecting temperature anomalies and visualizing thermal patterns. With its advanced features and high-quality imaging, this camera is ideal for a variety of applications, including industrial maintenance, building diagnostics, and research and development.

Whether you’re troubleshooting equipment, inspecting electrical systems, or monitoring temperature fluctuations, the Fluke TiR27 Infrared Camera provides accurate and reliable results.

Fluke TiR27 Key Features

The Fluke TiR27 Infrared Camera features a range of advanced technologies, including on-screen emissivity correction, reflected background temperature compensation, and transmission correction. It also boasts a high-resolution detector with 240 x 180 pixels and a thermal sensitivity of ≤ 0.045°C at 30°C target temp.

Temperature measurement range: -20°C to +150°C (-4°F to +302°F)
Temperature measurement accuracy: ±2°C or 2% (at 25°C nominal, whichever is greater)
Detector type: Focal Plane Array, uncooled microbolometer, 240 x 180 pixels
Thermal sensitivity (NETD): ≤ 0.045°C at 30°C target temp. (45 mK)
On-screen emissivity correction: Yes
On-screen reflected background temperature compensation: Yes
On-screen transmission correction: Yes
Imaging Performance: Industrial performance 2.0 megapixel

Who Needs the Fluke TiR27?

The Fluke TiR27 Infrared Camera is designed for professionals who need accurate and reliable temperature measurements. This includes industrial maintenance technicians, building diagnostics specialists, and research and development engineers.

With its advanced features and high-quality imaging, the Fluke TiR27 Infrared Camera is the perfect tool for anyone who needs to detect temperature anomalies and visualize thermal patterns.

Fluke TiR27 Applications

Industrial Maintenance: Detect temperature anomalies in electrical systems, motors, and other equipment.
Building Diagnostics: Inspect building envelopes, roofs, and walls for thermal patterns and temperature anomalies.
Research and Development: Use the Fluke TiR27 Infrared Camera to visualize thermal patterns and detect temperature anomalies in a variety of applications.
Electrical Inspections: Use the Fluke TiR27 Infrared Camera to detect temperature anomalies in electrical systems and equipment.
Thermal Imaging: Use the Fluke TiR27 Infrared Camera to visualize thermal patterns and detect temperature anomalies in a variety of applications.
Temperature Measurement: Use the Fluke TiR27 Infrared Camera to measure temperature with accuracy and reliability.

Why Buy Fluke TiR27 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke TiR27 Infrared Camera at a competitive price, with fast shipping and excellent customer service. Our team of experts is available to answer any questions you may have and provide support with your purchase.

Fluke TiR27 Specifications

Temperature
Temperature measurement range (not calibrated below -10°C)	-20°C to +150°C (-4°F to +302°F)
Temperature measurement accuracy	±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction	Yes
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Imaging Performance
Detector type	Focal Plane Array, uncooled microbolometer, 240 x 180 pixels
Total pixels	43,200
Thermal sensitivity (NETD)	≤ 0.045°C at 30°C target temp. (45 mK)
Infrared spectral band	7.5 μm to 14 μm (long wave)
Visual (visible light) camera	Industrial performance 2.0 megapixel
Minimum focus distance	46 cm (approx. 18 in)
Standard infrared lens type	Field of view	23° x 17°
	Spatial resolution(IFOV)	1.67 mRad
	Minimum focus distance	15 cm (approx. 6 in)
Optional telephoto infrared lens type	Field of view	11.5° x 8.7°
	Spatial resolution(IFOV)	0.84 mRad
	Minimum focus distance	45 cm (approx. 18 in)
Optional wide-angle infrared lens type	Field of view	46° x 34°
	Spatial resolution(IFOV)	3.34 mRad
	Minimum focus distance	7.5 cm (approx. 3 in)
Focus mechanism	Manual, one-handed Smart Focus capability
Image Presentation
Palettes	Standard	Ironbow, blue-red, high contrast, amber, amber inverted, hot metal, grayscale, grayscale inverted
	Ultra Contrast™	Ironbow ultra, blue-red ultra, high contrast ultra, amber ultra, amber inverted ultra, hot metal ultra, grayscale ultra, grayscale inverted ultra
Level and span	Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0°C (3.6°F) 3°C (5.4°F)
IR-Fusion® Information
Automatically aligned (parallax corrected) visual and IR blending	Yes
Picture-In-Picture (PIP)	Three levels of on-screen IR blending displayed in center of LCD
Full screen infrared	Three levels of on-screen IR blending displayed in center of LCD
Color alarms (temperature alarms)	Dewpoint temperature color alarm (user-selectable)
Image Capture and Data Storage
Voice annotation	60 seconds maximum recording time per image; reviewable playback on imager
	The TiR27 allows user to adjust palette, blending, level, span, IR-Fusion® mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored.
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Storage medium	SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader
File formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp and .jpeg) files
Export file formats w/ SmartView® software	JPEG, JPG, JPE, JFIF, BMP, GIF, DIB, PNG, TIF, and TIFF
Memory review	Thumbnail view navigation and review selection
General Specifications
Operating temperature	-10°C to +50°C (14°F to 122°F)
Storage temperature	-20°C to +50°C (-4°F to 122°F) without batteries
Relative humidity	10% to 95% non-condensing
Display	9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
Controls and adjustments	User selectable temperature scale (°C/°F) Language selection Time/Date set Emissivity selection Reflected background temperature compensation Transmission correction User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software) Dewpoint (low temperature) color alarm User selectable backlight: “Full Bright or “Auto Information display preference
Software	SmartView® full analysis and reporting software included
Batteries	Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level
Battery life	Four+ hours continuous use per battery pack (assumes 50% brightness of LCD)
Battery charge time	2.5 hours to full charge
AC battery charging	Two-bay AC battery charger (110 V AC to 220 V AC, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter.
AC operation	AC operation with included power supply (110 V AC to 220 V AC, 50/60 Hz). AC mains adapters included.
Power saving	Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards	CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibility	Meets all applicable requirements in EN61326-1:2006
C Tick	IEC/EN 61326-1
US FCC	CFR 47, Part 15 Class B
Vibration	0.03 g²/Hz (3.8 grms), IEC 68-2-6
Shock	25 g, IEC 68-2-29
Drop	2 m (6.5 ft) with standard lens
Dimensions (H x W x L)	27.7 x 12.2 x 17.0 cm (10.9 x 4.8 x 6.7 in)
Weight (battery included)	1.05 kg (2.3 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard)
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
