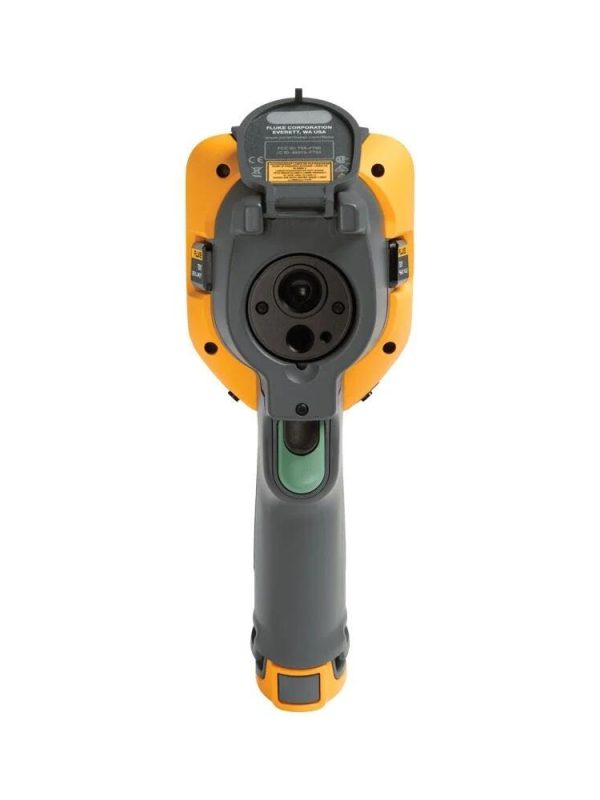

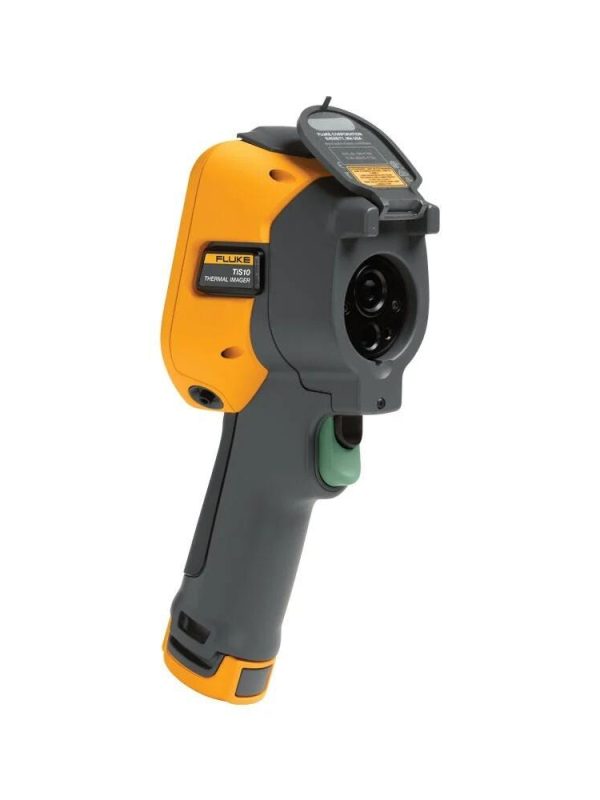

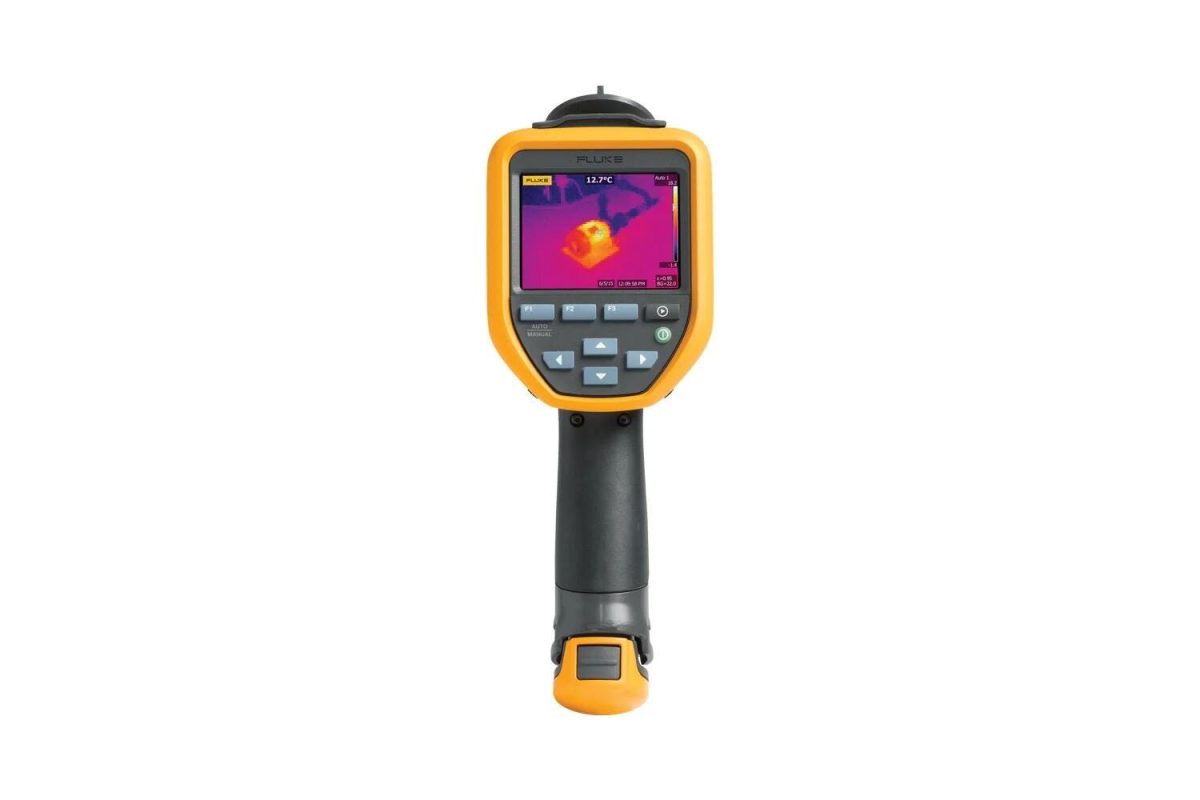

Description

The Fluke TiS10 Infrared Camera is a powerful tool for thermal imaging applications. With its high-resolution 80×60 detector and IR-Fusion Technology, this camera delivers enhanced image quality and accurate temperature measurements.

Whether you’re a technician, engineer, or buyer, the Fluke TiS10 is designed to meet your needs. Its wireless connectivity and Fluke Connect app compatibility make it easy to transfer data and enhance functionality.

Fluke TiS10 Key Features

The Fluke TiS10 features a range of key specifications, including:

IFOV (spatial resolution): 7.8 mRad
Detector resolution: 80×60
Field of view: 35.7 ° x 26.8 °
Distance to spot: 128:1
Wireless connectivity: Yes
Fluke Connect app compatibility: Yes (where available)
IR-Fusion Technology
AutoBlend mode
Picture-In-Picture (PIP)
Fixed focus, Minimum focus distance 0.45 m (1.5 ft)
Ruggedized display: 3.5 inch (landscape) 320×240 LCD
Rugged, ergonomic design for one-handed use: Yes
Thermal sensitivity (NETD): ≤0.15 °C at 30 °C target temp (150 mK)
Temperature measurement range: -20 °C to +250 °C (–4 °F to 482 °F)
Level and span: Smooth auto and manual scaling
Fast auto toggle between manual and auto modes: Yes
Fast auto-rescale in manual mode: Yes
Minimum span (manual mode): 2.5 °C
Minimum span (auto mode): 5 °C
Built-in digital camera (visible light): 5 MP
Frame rate: 9 Hz
Laser pointer: –
Data storage and Image Capture: Extensive SD memory system
Internal 4 GB (optional 4 GB micro SD card sold separately)
Image capture, review, save mechanism: One-handed image capture, review, and save capability
Image file formats: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
Instant Upload: Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review: Thumbnail review
Software: SmartView software – full analysis and reporting software and Fluke Connect (where available)
Export file formats with SmartView software: BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation: –
IR-PhotoNotes: –
Standard video recording: –
Radiometric video recording: –
Video file formats: –
Streaming video (remote display): –
Battery: One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life: Four+ hours
Battery charge time: 2.5 hours to full charge
Battery charging system: In-imager charging (optional external charger sold separately)
AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)
On-screen emissivity correction: Yes (both value and table)
On-screen reflected background temperature compensation: Yes
On-screen transmission correction: Yes
Color Palettes: Standard palettes: 3: Ironbow, Blue-Red, Grayscale Ultra Contrast palettes: –

Fluke TiS10 Specifications

Key Features
IFOV (spatial resolution)	7.8 mRad
Detector resolution	80×60
Field of view	35.7 ° x 26.8 °
Distance to spot	128:1
Wireless connectivity	Yes
Fluke Connect^® app compatible	Yes (where available)
IR-Fusion^® Technology
AutoBlend™ mode	–
Picture-In-Picture (PIP)	–
Focus system	Fixed focus, Minimum focus distance 0.45 m (1.5 ft)
Ruggedized display	3.5 inch (landscape) 320×240 LCD
Rugged, ergonomic design for one-handed use	Yes
Thermal sensitivity (NETD)	≤0.15 °C at 30 °C target temp (150 mK)
Temperature measurement range (not calibrated below -10 °C)	-20 °C to +250 °C (–4 °F to 482 °F)
Level and span	Smooth auto and manual scaling
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (manual mode)	2.5 °C
Minimum span (auto mode)	5 °C
Built-in digital camera (visible light)	5 MP
Frame rate	9 Hz
Laser pointer	–
Data storage and Image Capture
Extensive SD memory system	Internal 4 GB (optional 4 GB micro SD card sold separately)
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files
Instant Upload	Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review	Thumbnail review
Software	SmartView® software – full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® software	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation	–
IR-PhotoNotes™	–
Standard video recording	–
Radiometric video recording	–
Video file formats	–
Streaming video (remote display)	–
Battery
Batteries (field-replaceable, rechargeable)	One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life	Four+ hours
Battery charge time	2.5 hours to full charge
Battery charging system	In-imager charging (optional external charger sold separately)
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Color Palettes
Standard palettes	3: Ironbow, Blue-Red, Grayscale
Ultra Contrast™ palettes	–
General Specifications
Color alarms (temperature alarms)	–
Infrared spectral band	7.5 μm to 14 μm
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity	10% to 95%, non-condensing
Center-point temperature measurement	–
Spot temperature	Yes
User-definable spot markers	–
Center box	–
Safety standards	EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility	EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
C Tick	IEC/EN 61326-1
US FCC	EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock	2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop	Engineered to withstand 2 m (6.5 ft) drop
Size (H x W x L)	26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight (battery included)	Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
