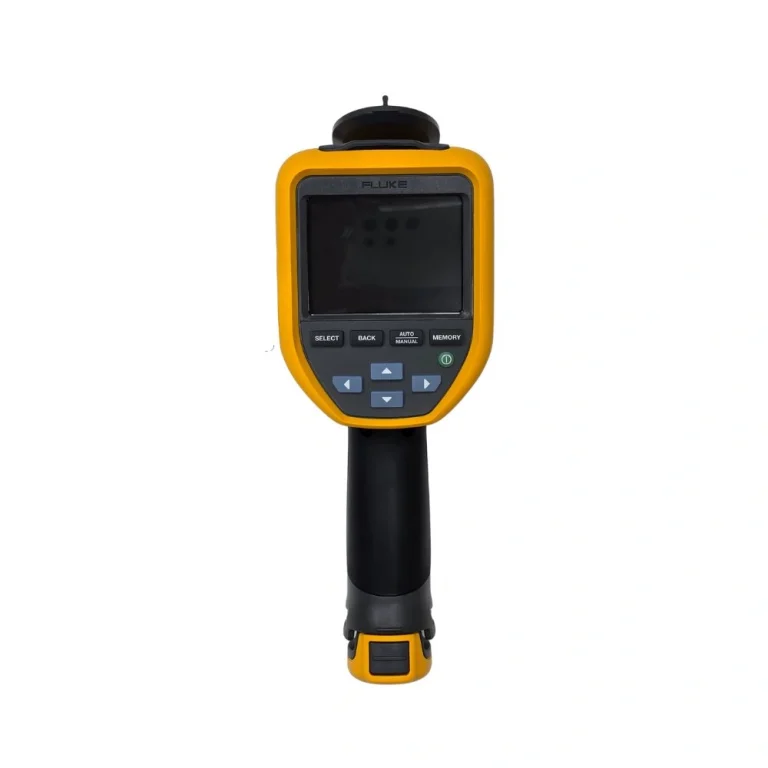

Fluke TiS20+ / TiS20+ MAX Thermal Camera Overview

The Fluke TiS20+ and TiS20+ MAX are rugged entry-level thermal imaging cameras for commercial electricians, HVAC/R technicians and maintenance teams. Both have a 120 × 90 infrared detector, 60 mK thermal sensitivity and continuous touchscreen IR-Fusion, which blends the thermal image with a visible-light image so you can see exactly where a problem is.

The TiS20+ measures -20 °C to 150 °C, and the TiS20+ MAX extends the range to 400 °C. Each camera has an IP54 enclosure, is engineered for a 2 m drop and runs for at least 5 hours on one battery charge.

Key Features

120 × 90 IR resolution, 130:1 D:S, 50° × 38° field of view
60 mK NETD to show small temperature differences
IR-Fusion AutoBlend (0 to 100%) on a 3.5 in touchscreen
Fluke Connect Asset Tagging: scan a QR code and images are filed by asset
Wi-Fi upload to the Fluke Connect system and full radiometric IS2 files
IP54 and 2 m drop rated, with ≥ 5 hours of battery life

Fluke TiS20+ Specifications

Fluke TiS20+ / TiS20+ MAX official specifications
Infrared resolution	120 × 90 (10,800 pixels)
IFOV (spatial resolution)	7.6 mRad, D:S 130:1
Field of view	50° H × 38° V
Minimum focus distance	50 cm
Focus	Fixed focus
Thermal sensitivity (NETD)	60 mK
Frame rate	9 Hz
Temperature range	TiS20+: -20 °C to 150 °C; TiS20+ MAX: -20 °C to 400 °C (not calibrated below -10 °C)
Accuracy	±2 °C or ±2% (at 25 °C, target ≥ 0 °C), whichever is greater
IR-Fusion	AutoBlend continuous 0% to 100% (visible + infrared)
Display	3.5 in LCD touchscreen, 320 × 240
Palettes	6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale
Measurement tools	Centre point, hot and cold spot markers, emissivity table, reflected temperature compensation
Memory	4 GB internal plus micro SD slot (up to 32 GB)
File formats	JPEG (non-radiometric) or IS2 (fully radiometric)
Connectivity	Wi-Fi 802.11 b/g/n (2.4 GHz), Fluke Connect, mini USB
Battery	Rechargeable Li-ion smart battery, ≥ 5 hours continuous (without Wi-Fi), 2.5 h charge
Spectral band	8 to 14 µm (long wave)
Operating temperature	-10 °C to 50 °C
Enclosure / drop	IP54; engineered to withstand a 2 m drop
Size / weight	26.7 × 10.1 × 14.5 cm; 0.72 kg
Safety / EMC	IEC 61010-1 Pollution Degree 2; EN 61326-1
Part numbers	TiS20+ 9 Hz: 5124518; TiS20+ MAX 9 Hz: 5206249
Warranty	2 years (Fluke standard)

TiS20+ vs TiS20+ MAX: Which Model?

TiS20+ model comparison
TiS20+ (part 5124518)	-20 °C to 150 °C: HVAC/R, building, general electrical and mechanical checks
TiS20+ MAX (part 5206249)	-20 °C to 400 °C: hotter motors, bearings, process lines and electrical faults

For more detail, compare the Fluke TiS60+ and, for professional thermography, the Fluke Ti480 PRO. If you only need spot readings, an infrared thermometer such as the Fluke 62 MAX+ may be enough.

Typical Applications

Electrical panels, breakers, switchgear connections and load imbalance
HVAC/R: ducts, coils, compressors, air leaks and insulation gaps
Motors, bearings, pumps and couplings
Building envelope, roof and moisture-related temperature patterns
Preventive maintenance routes with asset-tagged images

Learn More

New to thermal imaging? Read how thermal cameras work, 10 things to know before choosing a thermal camera and our Fluke thermal cameras comparison.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse all thermal cameras or more Fluke products.

Fluke TiS20+ FAQ

What is the difference between the Fluke TiS20+ and TiS20+ MAX?

They share the same 120 × 90 detector, 60 mK sensitivity and features. The TiS20+ measures -20 °C to 150 °C, and the TiS20+ MAX extends the range to 400 °C for hotter electrical and mechanical targets.

What is the resolution of the Fluke TiS20+?

It has a 120 × 90 infrared detector (10,800 pixels) shown on a 3.5 in 320 × 240 touchscreen, with IR-Fusion blending of the visible and thermal images.

Is the TiS20+ good for electrical panel inspections?

Yes. Fluke positions it for commercial electricians, HVAC/R and maintenance technicians. Its 130:1 D:S and 60 mK NETD find hot connections and unbalanced loads at normal working distances. For detailed long-distance switchgear work, a higher-resolution camera such as the Ti480 PRO is a better fit.

Can the TiS20+ store radiometric images?

Yes. It saves fully radiometric IS2 files or JPEGs to 4 GB of internal memory or a micro SD card. Images can be analysed and reported in Fluke Connect desktop software.
