Description

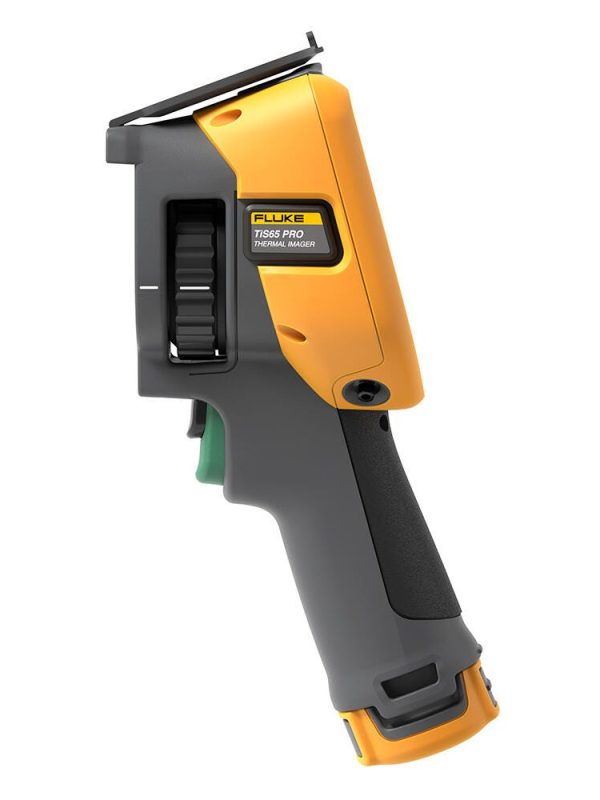

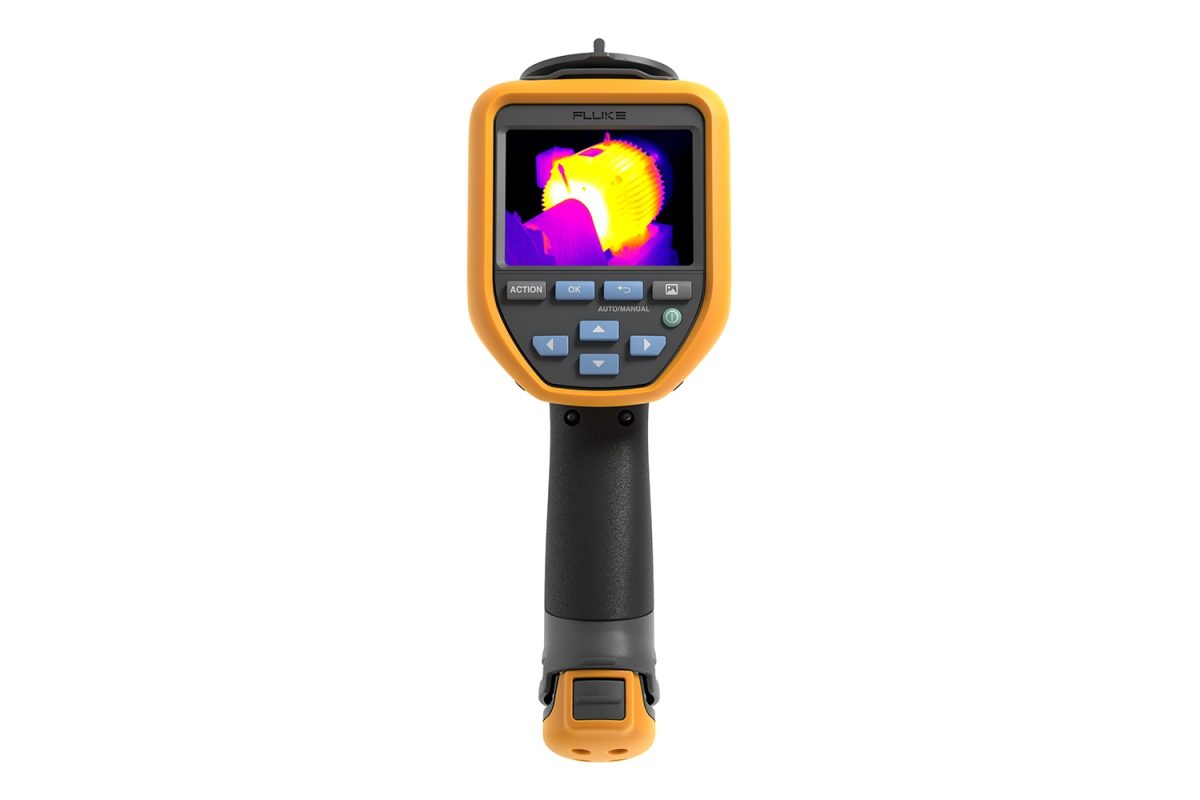

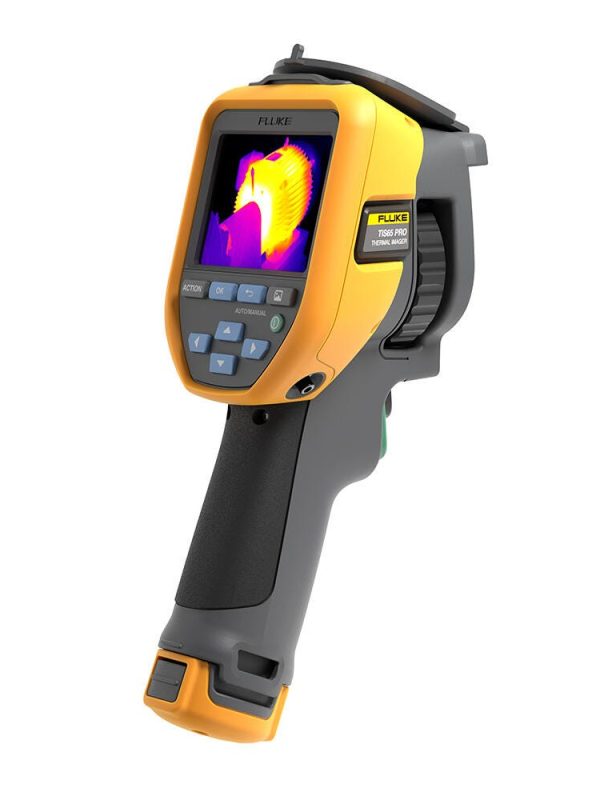

The Fluke TiS65 PRO Thermal Imager is a cutting-edge tool designed for professionals who require accurate temperature measurements. With its 320 x 240 infrared resolution, this thermal imager provides precise readings, making it an ideal choice for a variety of applications.

Whether you’re working in industrial, commercial, or residential settings, the TiS65 PRO delivers exceptional performance and reliability.

Fluke TiS65 Key Features

The Fluke TiS65 PRO boasts a range of advanced features, including SuperResolution, Agile Focus, and Digital Zoom. These features enable users to capture high-quality images and measurements with ease.

Infrared resolution: 320 x 240 (76,800 pixels)
SuperResolution: 640 x 480
Detector type: Uncooled focal plane infrared detector
Infrared Spectral response: 8 to 14 µm
Field of view: 42°: 42° x 32° or 25°: 25° x 19°
IFOV: 42°: 2.29 mRad 25°: 1.36 mRad
Minimum focus distance: 42°: 0.1 m 25°: 0.15 m
Focus system: Manual focus + focus free Agile Focus
Digital Zoom: 1-4x
Wireless connectivity: Yes, direct transfer thermal images wirelessly to mobile phones or PCs
Standard software: Fluke Connect Express: Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported
Asset tagging: Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images
IR-Fusion technology: Blend continuous 0 % to 100 %. 1% step for adding visible details to infrared images
Picture-in-Picture (PIP): Yes
Display screen: 3.5″ (8.9 cm landscape) Touchscreen 640 x 480 LCD
Ergonomic design: Designed specifically for one-handed use
Thermal sensitivity: <= 40 mk (0.04 ℃)
Temperature level and span: Smooth auto and manual scaling Fast auto-rescale in manual mode: Yes
Minimum span (in manual mode): 3 °C
Minimum span (in auto mode): 3 °C
Built-in digital camera (visible light): 13 mp
Frame rate: 30 Hz
Dew point calculation: No
Temperature Measurement: Temperature span: -20 °C to 600 °C Temperature range: -20 °C to 150 °C 0 °C to 600 °C
Accuracy: ±2 °C or 2%, whichever is greater (ambient temperature of 18 to 28 °C)
On-screen temperature correction: Yes, emissivity, background temperature, measurement distance and transmission correction supported
Standard palettes: 10 Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, Steps
Spot temperature: Center spot (unmovable)
Auto high/low temperature capture: High and low temperature points marked and tracked automatically
User-definable spot markers: Points: 5 Lines: 5 Areas: 5
Custom temperature difference calculation: 3
3-phase maximum temperature difference calculation: Yes
Image mode: Infrared, visible light, PIP, visible light and infrared fusion
Audible alarm: Alarm objects: highest temperature point, lowest temperature point, center point, custom point or line or area, 3-phase maximum temperature difference, custom temperature difference
Alarm conditions: Above the temperature, below the temperature
Color alarm: Yes, above the temperature, below the t

Who Needs the Fluke TiS65?

The Fluke TiS65 PRO is designed for professionals who require accurate temperature measurements in a variety of applications, including industrial, commercial, and residential settings.

Whether you’re working in maintenance, inspection, or quality control, this thermal imager delivers exceptional performance and reliability.

Fluke TiS65 Applications

Use the Fluke TiS65 PRO to detect temperature anomalies in electrical equipment.
Use the Fluke TiS65 PRO to inspect thermal performance of HVAC systems.
Use the Fluke TiS65 PRO to identify temperature-related issues in industrial processes.
Use the Fluke TiS65 PRO to conduct thermal imaging surveys in commercial buildings.
Use the Fluke TiS65 PRO to diagnose temperature-related problems in residential appliances.

Why Buy Fluke TiS65 from mme-ae?

At mme-ae, we offer the Fluke TiS65 PRO at competitive prices, along with exceptional customer service and support.

Our team of experts is dedicated to helping you find the right thermal imager for your needs, and we’re committed to providing you with the best possible experience.

Fluke TiS65 Specifications

Model	TiS65 PRO
Key Features
Infrared resolution	320 x 240 (76,800 pixels)
SuperResolution	640 x 480
Detector type	Uncooled focal plane infrared detector
Infrared Spectral response	8 to 14 µm
Field of view	42°: 42° x 32° or 25°: 25° x 19°
IFOV	42°: 2.29 mRad 25°: 1.36 mRad
Minimum focus distance	42°: 0.1 m 25°: 0.15 m
Focus system	Manual focus + focus free
Agile Focus	Yes
Digital Zoom	1-4x
Wireless connectivity	Yes, direct transfer thermal images wirelessly to mobile phones or PCs
Standard software: Fluke Connect Express	Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported
Asset tagging	Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images
IR-Fusion technology	Blend continuous 0 % to 100 %. 1% step for adding visible details to infrared images
Picture-in-Picture (PIP)	Yes
Display screen	3.5″ (8.9 cm landscape) Touchscreen 640 x 480 LCD
Ergonomic design	Designed specifically for one-handed use
Thermal sensitivity	<= 40 mk (0.04 ℃)
Temperature level and span	Smooth auto and manual scaling
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	3 °C
Minimum span (in auto mode)	3 °C
Built-in digital camera (visible light)	13 mp
Frame rate	30 Hz
Dew point calculation	No
Temperature Measurement
Temperature span	-20 °C to 600 °C
Temperature range	-20 °C to 150 °C 0 °C to 600 °C
Accuracy	±2 °C or 2%, whichever is greater (ambient temperature of 18 to 28 °C)
On-screen temperature correction	Yes, emissivity, background temperature, measurement distance and transmission correction supported
Standard palettes	10 Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, Steps
Spot temperature	Center spot (unmovable)
Auto high/low temperature capture	High and low temperature points marked and tracked automatically
User-definable spot markers	Points: 5 Lines: 5 Areas: 5
Custom temperature difference calculation	3
3-phase maximum temperature difference calculation	Yes
Image mode	Infrared, visible light, PIP, visible light and infrared fusion
Audible alarm	Alarm objects: highest temperature point, lowest temperature point, center point, custom point or line or area, 3-phase maximum temperature difference, custom temperature difference Alarm conditions: Above the temperature, below the temperature
Color alarm	Yes, above the temperature, below the temperature, within the temperature span, outside the temperature span
Preset measurement parameters (profile)	Up to 50 profiles can be saved
Data Storage and Image Capture
Storage	Standard with a 64 GB SD card Expandable up to 1 TB memory size
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	JPEG (with temperature data)
Memory review	Yes
Voice annotation	Yes, 60 s maximum audio recording via a Bluetooth Audio Headset
IR-PhotoNotes	Yes. Up to 3 extra visible light images captured can be included in JPEG files
Text annotations	Yes, multiple languages supported
Severity annotations	Yes, annotations for the 4 severity levels: normal, moderate, severe, and extreme
Video recording and formats	Standard video format: mp4
Fully-radiometric infrared data streaming	No
Auto capture (temperature and interval)	Yes, user-selectable time interval for capturing images.
Route Inspection Function
Create and manage inspection routes	Yes, use the Fluke Connect Express software
Start, execute and manage inspection routes	Yes, use the thermal imager
Thermal images classified and archived automatically according to inspection routes	Yes
Automatic reporting and trend summaries	Yes
Battery
Batteries (field-replaceable, rechargeable)	Lithium-ion rechargeable battery
Battery life	>5 hours (Actual life depends on settings and usage)
Battery charging time	< 4 hours to full charge
Battery charging system	Ti SBC3B Two-Bay Battery Charger used or charged via the Type-C interface
External power supply	AC operation through the included power adapter with the output: 15 VDC, 2 A
General Specificiations
Preset shortcut keys	6
Laser	Yes
Flashlight	Yes
Type-C interface	Yes, charging and data transfer supported
Operating temperature	-10 °C to 50 °C
Storage temperature	-20 °C to 60 °C， without batteries
Relative humidity	10% to 95% non-condensing
Safety standards	IEC 61010-1: pollution degree 2
Electromagnetic combability	IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A
Australia RCM	RCM IEC 61326-1
Radio frequency (WIFI and Bluetooth)	2.4 GHz
Radio output power (WIFI and Bluetooth)	<100 mW
Laser	IEC 60825-1, Class 2; 650 nm; <1 mW
Drop	Engineered to withstand 2 m drop
Ingress protection	IEC 60529: IP52
RoHS3 Directive	Yes
Other Specifications
Size (L x H x W)	∼ (26.7 cm x 10.1 cm x 14.5 cm)
Weight (battery included)	950 g
Supported Languages	Simplified Chinese, Traditional Chinese, English, Korean, Japanese
Warranty	2 years
Recommended calibration period	2 years
Standard accessories	One thermal imager, Two batteries, One 2-Bay Battery Charging Base, One soft bag, One hard case, One SD card, One AC adapter
