Description

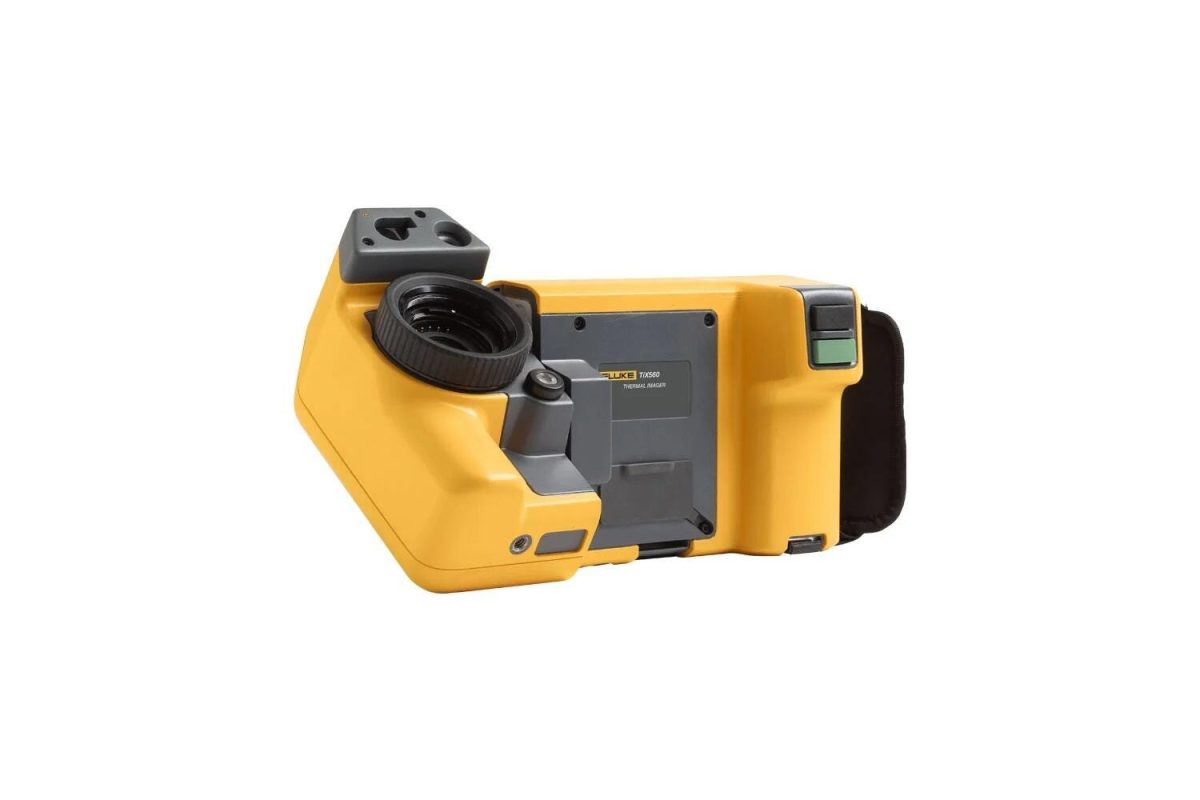

The Fluke TiX560 Infrared Camera is a powerful tool for professionals who need to capture high-resolution infrared images. With its advanced features like SuperResolution, LaserSharp Auto Focus, and IR-Fusion technology, this camera provides precise temperature measurement and detailed thermal imaging.

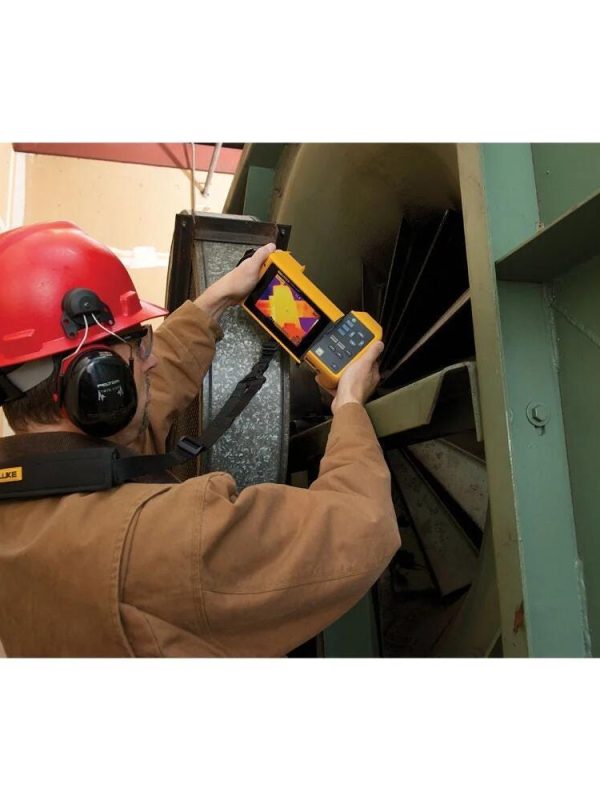

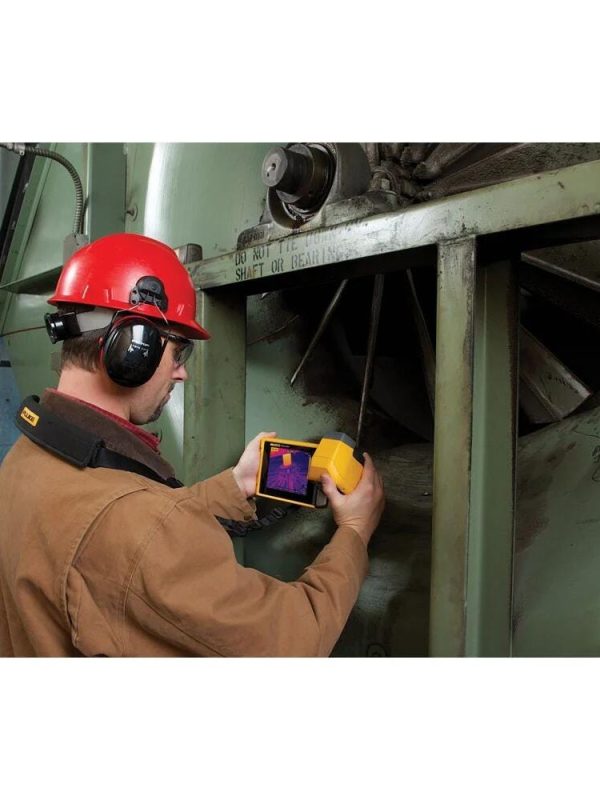

Whether you’re working in a factory, on a construction site, or in a laboratory, the Fluke TiX560 is designed to withstand the rigors of your job. Its rotatable, ergonomic design allows for one-handed use, and its extensive memory options and post-capture image editing capabilities make it easy to review and analyze your images.

Fluke TiX560 Key Features

The Fluke TiX560 offers a range of advanced features that make it an essential tool for professionals. These include:

IFOV with standard lens (spatial resolution): 1.31 mRad
Detector resolution: 320 x 240 (76,800 pixels)
Field of view: 24 °H x 17 °V
Minimum focus distance: 15 cm (approx. 6 in)
SuperResolution*: On camera and in software
LaserSharp Auto Focus: Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus: Yes
Streaming video (remote display): Via USB or WiFi
Touchscreen display (capacitive): 14.4 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Wireless connectivity: Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi to LAN (where available)
Fluke Connect app compatible: Yes (where available)
Fluke Connect tool compatible: Yes (where available). Connects wireless to select Fluke Connect enabled tools. Five simultaneous connections supported
IR-Fusion technology: Yes
AutoBlend mode: Yes
Picture-In-Picture (PIP): Yes
Continuous AutoBlend mode: Set AutoBlend level across continuum
Rugged, ergonomic design for one-handed use: Rotatable (articulating lens) 240 degrees
Thermal sensitivity (NETD): ≤ 0.045 °C at 30 °C target temp (45 mK)
Filter mode (NETD improvement): ≤ 0.03 °C at 30 °C target temp (30 mK)
Level and span: Smooth auto and manual scaling
Touchscreen adjustable level / span: Yes. Span and level can be easy and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes: Yes
Fast auto-rescale in manual mode: Yes
Minimum span (in manual mode): 2.0 °C (3.6 °F)
Minimum span (in auto mode): 3.0 °C (5.4 °F)
Built-in digital camera (visible light): 5 megapixel industrial performance
Frame rate: 60 Hz or 9 Hz versions
Laser pointer: Yes
LED light (torch): Yes
Digital zoom: 2x, 4x, 8x

Fluke TiX560 Specifications

Key Features
IFOV with standard lens (spatial resolution)	1.31 mRad
Detector resolution	320 x 240 (76,800 pixels)
Field of view	24 °H x 17 °V
Minimum focus distance	15 cm (approx. 6 in)
IFOV with optional telephoto lens	0.65 mRad
Field of view	12 °H x 9 °V
Minimum focus distance	45 cm (approx. 18 in)
IFOV with optional wide-angle lens	2.62 mRad
Field of view	46 °H x 34 °V
Minimum focus distance	15 cm (approx. 6 in)
SuperResolution*	On camera and in software
Image sharpening	Yes
LaserSharp® Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Streaming video (remote display)	Via USB or WiFi
Touchscreen display (capacitive)	14.4 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Wireless connectivity	Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect™ app compatible	Yes (where available)
Fluke Connect™ tool compatible	Yes (where available). Connects wireless to select Fluke Connect™ enabled tools. Five simultaneous connections supported.
IR-Fusion® technology	Yes
AutoBlend™ mode	Yes
Picture-In-Picture (PIP)	Yes
Continuous AutoBlend™	Set AutoBlend™ level across continuum
Rugged, ergonomic design for one-handed use	Rotatable (articulating lens) 240 degrees
Thermal sensitivity (NETD)	≤ 0.045 °C at 30 °C target temp (45 mK)
Filter mode (NETD improvement)	≤ 0.03 °C at 30 °C target temp (30 mK)
Level and span	Smooth auto and manual scaling
Touchscreen adjustable level / span	Yes. Span and level can be easy and quickly set by simply touching the screen.
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)
Built-in digital camera (visible light)	5 megapixel industrial performance
Frame rate	60 Hz or 9 Hz versions
Laser pointer	Yes
LED light (torch)	Yes
Digital zoom	2x, 4x, 8x
Data Storage and Image Capture
Extensive memory options	Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Post-capture image editing (on camera)	Yes. Conduct on camera analysis for in-field results.
Advanced text annotation	Yes. Including standard shortcuts as well as user programmable options.
File formats	Non-radiometric (.bmp) or (.jpeg) or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review	Thumbnail view navigation and review selection
Software	SmartView® software, Fluke Connect™ (where available), and SmartView® Mobile App – full analysis and reporting software
Export file formats with SmartView® software	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera
IR-PhotoNotes™	Yes
Text annotation	Yes
Video recording	Standard and radiometric
File formats video	Non-radiometric (MPEG – encoded .AVI) and fully radiometric (.IS3)
Remote control and operation (for special and advanced applications)	Yes
Auto capture (temperature and interval)	Yes
Battery
Batteries (field-replaceable, rechargeable)	Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life	Three hours continuous use per battery pack
Battery charge time	2.5 hours to full charge
Battery charging system	Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving	User selectable sleep and power off modes
Temperature Measurement
Temperature measurement range (not calibrated below -10 °C)	‘-20 °C to +1200 °C (-4 °F to +2192 °F)
Accuracy	± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Color Palettes
Standard palettes	8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General Specifications
Color alarms (temperature alarms)	High-temperature and low-temperature
Infrared spectral band	7.5 μm to 14 μm (long wave)
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity	10 % to 95 % non-condensing
Center-point temperature measurement	Yes
Spot temperature	Hot and cold spot markers
User-definable spot markers	3 user-definable spot markers
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp
Safety	IEC 61010-1: Overvoltage Category II, Pollution degree 2
Electromagnetic compatibility	IEC 61326-1: Basic EM Environment CISPR11, Group 1, Class A
Australian RCM	IEC/61326-1
US FCC	CFR 47, Part 15 Subpart B
Vibration	0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6
Shock	25 g, IEC 68-2-29
Drop	Engineered to withstand 1 meter (3.4 feet) drop with standard lens
Size (H x W x L)	27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in)
Weight (battery included)	1.5 kg (3.3 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
* Coming soon via firmware upgrade
