Fluke TP38 Slim Reach Test Probes – CAT IV 600 V

Description

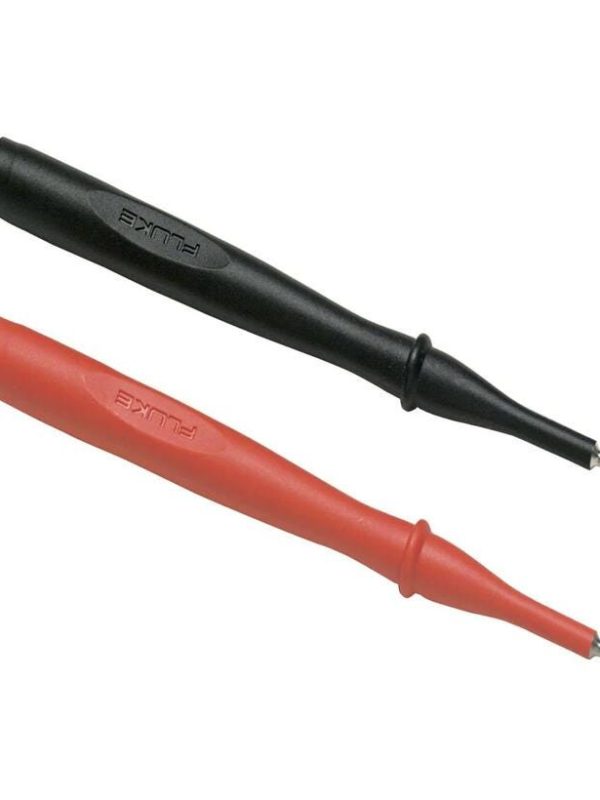

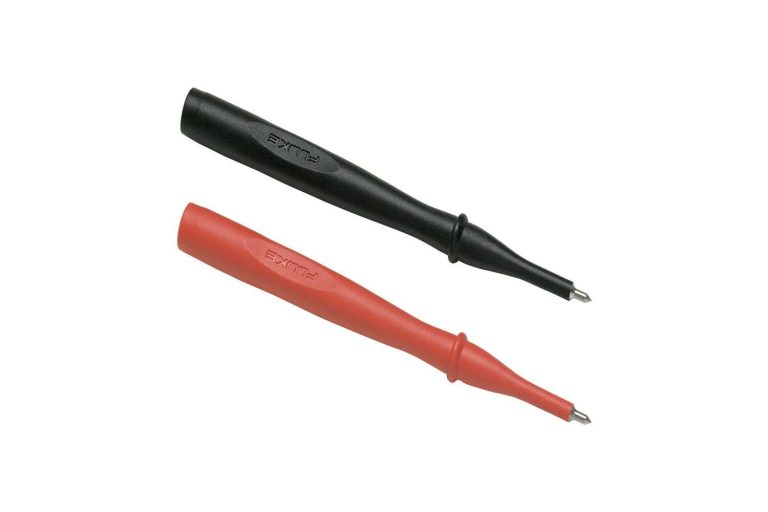

Fluke TP38 Slim Reach Test Probe Set Overview

Standard probe bodies are often too wide for modern terminal blocks, compact breakers and densely packed control panels. The Fluke TP38 Slim Reach Test Probe Set gives you one red and one black slender probe with hard stainless steel tips, so you can reach recessed and closely spaced terminals.

Each tip is 24 mm long and insulated up to 4 mm from the end. Only a short contact area is exposed, which lowers the risk of an accidental short between terminals. The set is rated CAT IV 600 V, CAT III 1000 V, 10 A and is UL listed.

Key Features

Slim probe bodies for closely spaced or recessed terminals
Insulated tip with only 4 mm exposed, in line with GS38 guidance
Hard stainless steel tips for a long service life
CAT IV 600 V / CAT III 1000 V, 10 A, UL listed
Modular design that fits Fluke modular test leads

Fluke TP38 Specifications

Fluke TP38 official specifications
Contents	1 pair of slim reach test probes (1 red, 1 black)
Probe type	Modular test probes for Fluke modular test leads
Tip material	Hard stainless steel
Tip length	24 mm (0.95 in), including the insulated part
Tip insulation	Insulated to 4 mm (0.16 in) from the end
Standard	Meets GS38 guidance (UK)
Safety rating	CAT IV 600 V, CAT III 1000 V, 10 A
Approval	UL listed
Warranty	1 year (Fluke)

Compatible Meters

Fluke lists the TP38 as compatible with the Fluke 175, 177 and 179 True-RMS multimeters (see the Fluke 179 IMSK kit), the Fluke 289 and 287 logging meters, the 787/787B ProcessMeter, and the 705 and 724 calibrators.

Typical Applications

Voltage checks on DIN-rail terminal blocks and compact MCBs
Control panel and PLC I/O troubleshooting
Motor starters, contactors and relays with recessed screw terminals
Switchgear and distribution boards where GS38-style probes are required

Related Fluke Probes and Leads

For a probe with a retractable tip guard, see the Fluke TP175 TwistGuard test probes. For a complete premium lead set, see the Fluke TL71. For PCB work, see the TL910 electronic test probes. Browse all electrical test accessories.

Fluke TP38 FAQ

What is the Fluke TP38 used for?

It is a pair of slim probes for closely spaced or recessed terminals, such as terminal blocks, breakers, contactors and control panels, where a standard probe body is too wide.

What safety rating does the TP38 have?

CAT IV 600 V and CAT III 1000 V at 10 A, and it is UL listed. Always use leads and a meter with an equal or higher rating.

Why is the tip insulated?

Only the last 4 mm of the 24 mm stainless steel tip is exposed. This reduces the risk of shorting across adjacent terminals and follows GS38 guidance for exposed probe tips.

Which Fluke meters is the TP38 compatible with?

Fluke lists it for meters including the Fluke 175, 177, 179, 287, 289 and 787 multimeters, the 705 loop calibrator and 724 temperature calibrator. It is a modular probe, so it fits Fluke modular test leads.

Will the TP38 fit a finger-safe terminal?

The slim body and insulated tip are made for recessed and closely spaced terminals. Check that the 4 mm exposed tip reaches the contact in your terminal type before testing live.
