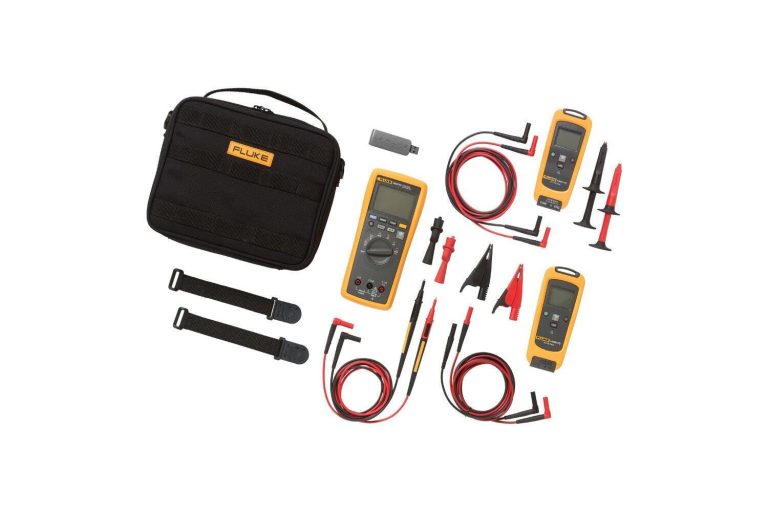

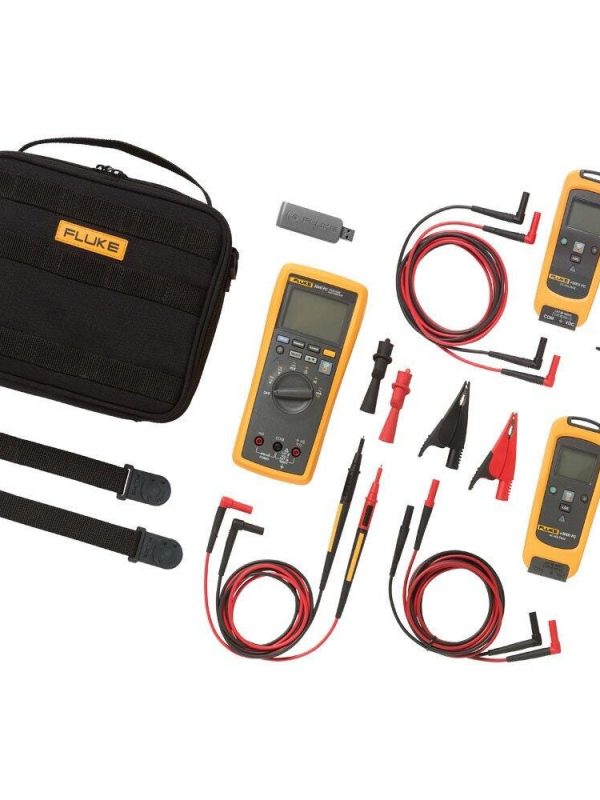

Fluke v3003 FC Wireless AC-DC Voltage Measurement Kit

The Fluke v3003 FC Wireless AC-DC Voltage Measurement Kit is a versatile and accurate tool for technicians and engineers. With its wireless connectivity and long battery life, this kit allows for easy and convenient measurements in a variety of applications.

Featuring a range of functions including AC and DC voltage, continuity, resistance, diode test, and capacitance, the Fluke v3003 FC is the perfect solution for any job.

Fluke v3003 Key Features

The Fluke v3003 FC Wireless AC-DC Voltage Measurement Kit features a range of key specifications, including:

• AC Voltage Range: 45 Hz to 500 Hz: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
• DC Voltage Range: 600.0 mV, 6.000 V, 60.00 V, 600.0 V, 1000 V
• Continuity and Resistance: 600 Ω, 6.000 kΩ, 60.00 kΩ, 600.0 kΩ, 50.00 MΩ
• Diode Test: 2.000 V
• Capacitance: 1000 nF, 10.00 μF, 100.0 μF, 9999 μF
• AC and DC Current Function: 1 mA AC, 60.00 mA, 400.0 mA, 3: 0.1 mA, 1 mA DC, 60.00 mA, 400.0 mA, 3: 0.1 mA
• Frequency Range: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz

Who Needs the Fluke v3003?

The Fluke v3003 FC Wireless AC-DC Voltage Measurement Kit is designed for technicians and engineers who require accurate and reliable measurements in a variety of applications.

From electrical and electronics to HVAC and industrial, this kit is the perfect solution for any job that requires precise measurements.

Fluke v3003 Applications

• Electrical and Electronics: Measure AC and DC voltage, continuity, resistance, diode test, and capacitance in electrical and electronics applications.
• HVAC: Measure temperature, humidity, and pressure in HVAC applications.
• Industrial: Measure current, voltage, and resistance in industrial applications.
• Automotive: Measure voltage, current, and resistance in automotive applications.
• Medical: Measure voltage, current, and resistance in medical applications.

Why Buy Fluke v3003 from mme-ae?

At mme-ae, we offer the Fluke v3003 FC Wireless AC-DC Voltage Measurement Kit at competitive prices, with fast shipping and excellent customer service.

Our team of experts is always available to answer any questions you may have, and we offer a range of accessories and support services to ensure that you get the most out of your purchase.

Fluke v3003 Specifications

Detailed Specifications
AC Voltage
Range 1	Resolution	Accuracy 2 3 4		Accuracy 2 3 4
		45 Hz to 500 Hz		500 Hz to 1 kHz
600.0 mV	0.1 mV	1.0% + 3		2.0% + 3
6.000 V	0.001 V
60.00 V	0.01 V
600.0 V	0.1 V
1000 V	1 V
1. All AC voltage ranges are specified from 1% of range to 100% of range. 2. Crest factor of ≤ 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3. For non-sinusoidial waveforms, add ±(2% of reading + 2% full scale) typical, for crest factor up to 3. 4. Do not exceed 107 V-Hz.
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
Function	Range	Resolution	Accuracy
mV	600.0 mV	0.1 mV	0.09% + 2
V	6.000 V	0.001 V	0.09% + 2
	60.00 V	0.01 V
	600.0 V	0.1 V
	1000 V	1 V	0.15% + 2
Ω	600 Ω	1 Ω	Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
Ω	600.0 Ω	0.1 Ω	0.5% + 2
	6.000 kΩ	0.001 kΩ	0.5% + 1
	60.00 kΩ	0.01 kΩ
	60.00 kΩ	0.1 kΩ
	600.0 kΩ	0.001 MΩ
	50.00 MΩ	0.01 MΩ	1.5% + 3
Diode test	2.000 V	0.001 V	1% + 2
µF	1000 nF	1 nF	1.2% + 2
	10.00 μF	0.01 μF
	100.0 μF	0.1 μF
	9999 μF1	1 μF	10% typical
1. In the 9999 μF range for measurements to 1000 μF, the measurement accuracy is 1.2% + 2.
AC and DC Current
Function	Range 1	Resolution	Accuracy
mA AC (45 Hz to 1 kHz)	60.00 mA	0.01 mA	1.5% + 3
	400.0 mA 3	0.1 mA
mA DC 2	60.00 mA	0.01 mA	0.5% + 3
	400.0 mA 3	0.1 mA
1. All AC current ranges are specified from 5% of range to 100% of range. 2. Input burden voltage (typical): 400 mA input 2 mV/mA. 3. 400.0 mA accuracy specified up to 600 mA overload.
Frequency
Range	Resolution	Accuracy 1
99.99 Hz	0.01 Hz	0.1% + 1
999.9 Hz	0.1 Hz
9.999 kHz	0.001 kHz
99.99 kHz	0.01 kHz
1. Frequency is specified up to 99.99 kHz in volts and up to 10 kHz in amps.
Input Characteristics
Function	Overload protection	Input impedance (nominal)	Common mode rejection ratio (1 kΩ unbalance)		Normal mode rejection
	1100 Vrms	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz		> 60 dB at 50 Hz or 60 Hz
	1100 Vrms	> 10 MΩ < 100 pF	> 60 dB, DC to 60 Hz
	1100 Vrms	> 10 MΩ < 100 pF	> 120 dB at DC, 50 Hz or 60 Hz		> 60 dB at 50 Hz or 60 Hz
Open circuit test voltage			Full scale voltage		Typical short circuit current
			To 6 MΩ	50 MΩ
	1100 Vrms	< 2.7 VDC	< 0.7 VDC	< 0.9 VDC	< 350 mA
	1100 Vrms	< 2.7 VDC	2.000 VDC		< 1.1 mA
mA Function
Overload Protection	Fused, 44/100 A, 1000 V FAST Fuse
Overload	600 mA overload for 2 minutes maximum, 10 minutes rest minimum
MIN/MAX Recording Accuracy
DC functions	The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration.
AC functions	The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration.
General Specifications
Maximum voltage between any terminal and earth ground	1000 VDC or AC rms
Ω fuse protection from A inputs	0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
Display (LCD)	Update rate		4/sec
	Volts, amps, ohms		6000 counts
	Frequency		10,000 counts
	Capacitance		1,000 counts
Battery type	Three AA Alkaline batteries, NEDA 15A IEC LR6
Battery life	250 hours minimum
RF communications	2.4 GHZ ISM Band
RF communication range	Open air, unobstructed		Up to 20 m
	Obstructed, sheetrock wall		Up to 6.5 m
	Obstructed, concrete wall, or steel electrical enclosure		Up to 3.5 m
Temperature	Operating		-10°C to 50°C
	Storage		-40°C to 60°C
Temperature coefficient	0.1 x (specified accuracy) / °C (28°C)
Relative humidity	0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
Altitude	Operating		2,000 m
	Storage		12,000 m
Electromagnetic compatibility EMI, RFI, EMC, RF	EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety compliance	ANSI/ISA 61010-1 / (82.02.01)		3rd edition
	CAN/CSA-C22.2 No 61010-1-12		3rd edition
	UL 61010-1		3rd edition
	IEC/EN 61010-1		2010
Certifications	CSA, FCC, CE
Ingress Protection (IP) rating	IP54
Pollution degree	2
Size (H x W x L)	4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
Weight	340 g (12 oz)
Warranty	Three years
Not compatible with Fluke CNX test tools
