Fluke VPS410 10:1 Probe Set, 4 Colours

Description

Fluke VPS410 Probe Set, 10:1 (Red, Blue, Grey, Green)

The Fluke VPS410 probe set contains four 10:1 voltage probes in red, blue, grey and green, matching the channel colours on four-channel Fluke ScopeMeter 190 Series II models such as the Fluke 190-204 ScopeMeter. It is the same four-colour set Fluke includes with the 190-204.

Each probe is rated CAT III 1000 V / CAT IV 600 V with 300 MHz bandwidth, for three-phase power, motor drive and power electronics measurements.

Specifications (each probe)

Fluke VPS410 probe specifications (Fluke)
Attenuation	10:1
Bandwidth	300 MHz
Input resistance	10 MΩ
Input capacitance	12 pF nominal
Compensation range	10 pF to 22 pF
Cable length	1.2 m
Safety rating (input and to ground)	CAT III 1000 V / CAT IV 600 V
Safety standards	IEC/EN 61010-031:2008, UL 61010B-031, CSA C22.2 No. 1010.2.031
Designed for	Fluke ScopeMeter 190 Series II
Identification	Black ring on the BNC connector

What’s in the Set

4 × VPS410 10:1 probes (1 red, 1 blue, 1 grey, 1 green)

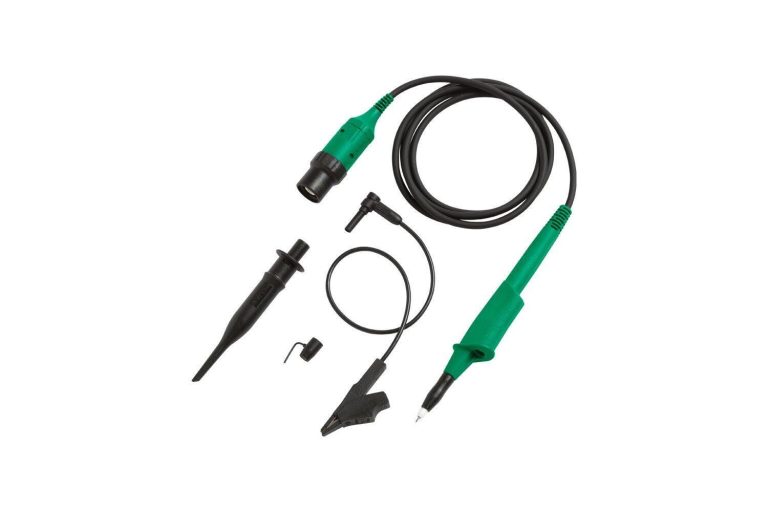

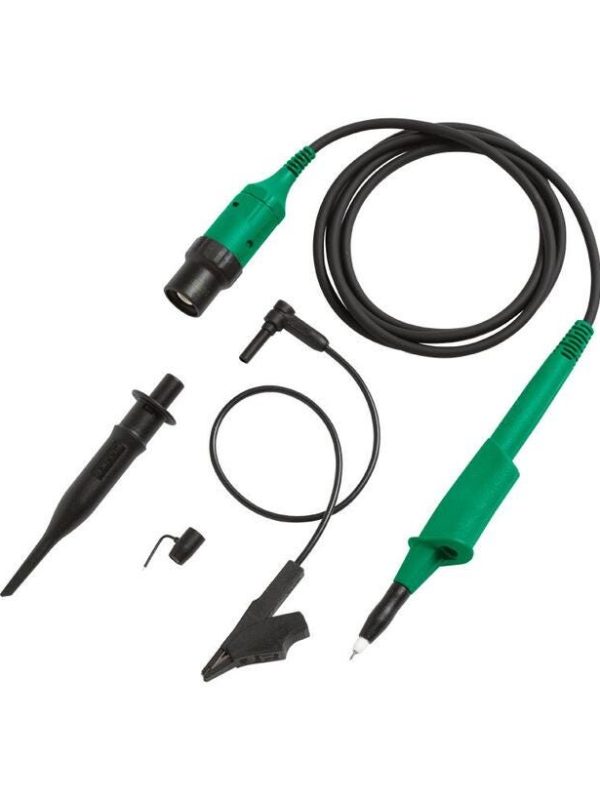

For each probe: hook clip, ground lead with mini alligator clip, ground spring and probe-tip insulation sleeve

Safety tip: always fit the insulation sleeve or hook clip on the probe tip when you use the ground lead.

Typical Uses

Three-phase voltage waveforms on drives and distribution boards
Comparing input and output of VFDs and UPS systems
Replacing worn probes on ScopeMeter 190 Series II kits

Which Probe Do You Need?

Fluke ScopeMeter probe comparison
Probe	Key data	Best for
VPS410	300 MHz, 12 pF, CAT III 1000 V / CAT IV 600 V, black BNC ring	ScopeMeter 190 Series II (up to 200 MHz models)
VPS410-II	500 MHz, 11.5 pF, coloured BNC ring	ScopeMeter 190-50x (500 MHz)
VPS510	Compact probe for electronics work	Low-voltage electronics

Need one probe only? See the single VPS410-x probe set, VPS410-R (red) or VPS410-B (blue). For 500 MHz scopes such as the Fluke 190-504 (500 MHz), use the VPS410-II. Browse more electrical test accessories and Fluke products.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke VPS410 Probe Set FAQ

How many probes are in the Fluke VPS410 probe set?

Four 10:1 probes: one red, one blue, one grey and one green, each with its own hook clip, ground lead, ground spring and insulation sleeve.

Which ScopeMeter is the Fluke VPS410 for?

It is designed for the Fluke ScopeMeter 190 Series II. It can also be used on the 190C and earlier models, where the lowest rating of the probe or instrument applies.

What is the difference between VPS410 and VPS410-II?

The VPS410 is a 300 MHz probe with 12 pF input capacitance. The VPS410-II is a 500 MHz, 11.5 pF probe for the 500 MHz ScopeMeter 190-50x models and has a coloured ring on the BNC; the VPS410 has a black ring.

What is the safety rating of the VPS410?

CAT III 1000 V and CAT IV 600 V, from the input and to ground, to IEC/EN 61010-031.

Can I buy a single VPS410 probe?

Yes. The VPS410-x is a single probe set in red (VPS410-R), blue (VPS410-B), grey (VPS410-G) or green (VPS410-V).
