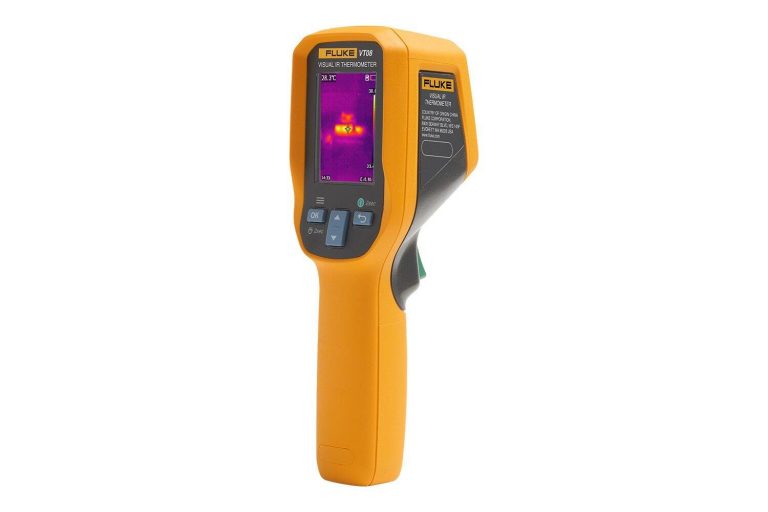

Fluke VT08 Visual IR thermometer

Fluke VT08 Visual IR thermometer

The Fluke VT08 Visual IR Thermometer is a versatile tool that is designed to simplify temperature measurement and troubleshooting tasks. By combining an infrared thermometer with a thermal imager, the VT08 allows users to quickly identify hot and cold spots in a wide range of applications. This can be particularly useful in electrical systems, where overheating components can indicate potential issues such as loose connections or overloads. In mechanical systems, the VT08 can be used to identify issues such as bearing failure or misalignment, while in HVAC systems, it can help to identify issues such as air leaks or insulation deficiencies.

Key Features

The Fluke VT08 Visual IR Thermometer is packed with features that make it a valuable tool for professionals in a wide range of industries. One of the key features of the VT08 is its built-in digital camera, which allows users to capture and store images of temperature measurements. This can be particularly useful for documenting issues and sharing information with colleagues or clients. The Fluke VT08 also features a large, full-color LCD display, which provides a clear and detailed view of temperature measurements and thermal images. In addition, the VT08 is equipped with Fluke’s patented IR-Fusion technology, which allows users to blend digital and thermal images to provide a more detailed view of temperature measurements.

Applications

The Fluke VT08 Visual IR Thermometer is a versatile tool that can be used in a wide range of applications. In the electrical industry, the VT08 can identify issues such as loose connections, overloads, and faulty components. In the mechanical industry, it can be used to identify issues such as bearing failure, misalignment, and overheating components. The Fluke VT08 can identify issues such as air leaks, insulation deficiencies, and overheating components in the HVAC industry. In addition, the VT08 can be used in a wide range of other applications, including building inspection, energy auditing, and research and development.

Benefits

There are several key benefits to using the Fluke VT08 Visual IR Thermometer. One of the main benefits of the VT08 is its ability to provide quick and accurate temperature measurements. This can help to save time and improve efficiency in a wide range of applications. In addition, the VT08’s ability to provide visual representations of temperature measurements can help to simplify the troubleshooting process and make it easier to identify potential issues. The VT08’s built-in digital camera and IR-Fusion technology also make it easy to document and share temperature measurements, which can be particularly useful for professionals who need to collaborate with colleagues or clients.

Fluke VT08 Visual IR Thermometer Specifications:

Thermal image and optics

• Infrared resolution: 120×90
• IR frequency band: 7.5~14 μm(long wave)
• Frame rate: 9 Hz
• Thermal sensitivity/NETD: <60 mk
• Field of view (H x V): 50° x 37.5°
• Spatial resolution: 7.6 mrad
• Focus system: Focus free
• Minimum focusing distance: 0.5 m (19.7 in)
• Visible light
  • Visible resolution: 320×240
  • Visible FOV (H x V): 53° x 41°
• Image display and storage
• Image mode:
  • Thermal image
  • Visible image
  • PIP
• Palettes: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
• Internal storage: >28GB (>100000 images)
• File format: JPEG compression format (.jpg)
• PIP mode: Yes
• Temperature measurement
• Temperature range: -20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C)
• Temperature accuracy: ±2°C or 2% @ 23°C±5°C, whichever is greater
• Emissivity: Adjustable
• Background temperature compensation: Yes
• Auto high-/low-temperature capture: Yes
• Center point temperature: Yes
• Alarm: Maximum/minimum temperature alarm in full screen
• Interface and lens
  • Visible lens: Yes
  • Flashlight: Yes
  • Infrared lens: Yes
  • Laser sighting: Yes
  • Type-C interface: Yes
  • TF card slot: No
  • Tripod interface: Yes
  • Mobile App: No

General

• Operating temperature: -10 °C to 50 °C
• Storage temperature: -40 °C to 70 °C
• Operating altitude: 2000 m (1.24 mi)
• Storage altitude: 12 000 m (7.5 mi)

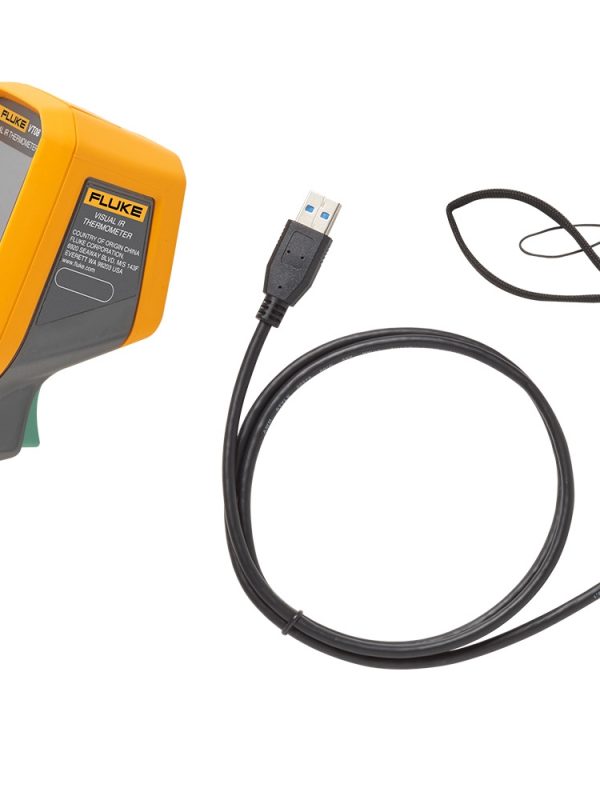

• Standard accessories: Wrist strap, quick reference guide, charger + adapter, Type-C data cable, data-downloading card
• Display 6.096 cm (2.4-inch) LCD
• Language: English
• Size: 20.4 cm x 6.6 cm x 7.6 cm
• Weight: 0.36 kg
• Relative humidity: ≤90%, non-condensing
