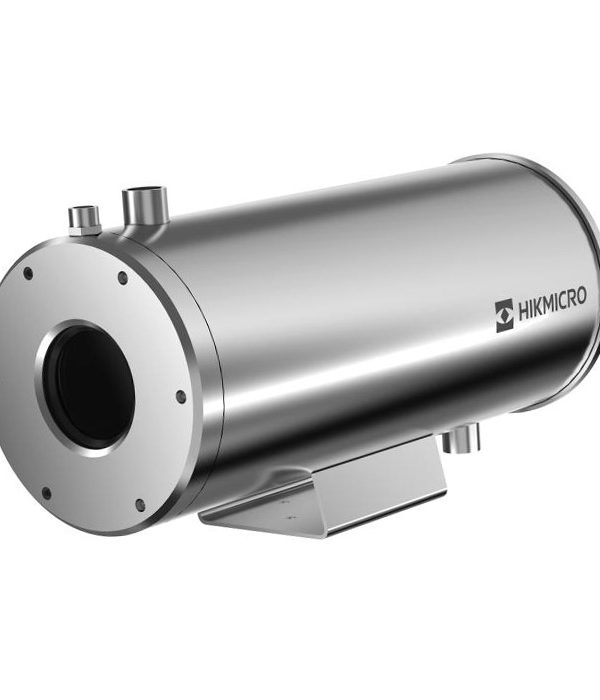

HIKMICRO HM-TD2H37T-7/X Thermographic Camera

The HIKMICRO HM-TD2H37T-7/X Thermographic Camera offers real-time temperature measurement in high-temperature environments. With its high-sensitivity sensor and wide temperature range, it provides precise object temperature readings. Designed for reliability and versatility, it is ideal for industrial applications.

  • Weight: Approx. 6520 g (14.37 lb)
  • Main Stream Video: 50 fps (384 × 288)
  • Video Compression: H.264/MJPEG
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 384 x 288
SKU: 34494

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

12 People watching this product now!

HIKMICRO HM-TD2H37T-7/X

The HIKMICRO HM-TD2H37T-7/X Thermographic Camera is a powerful tool for real-time temperature measurement in high-temperature environments. This heat-resistant camera features a high-sensitivity sensor and a wide temperature range, allowing for accurate and reliable temperature readings.

HIKMICRO HM-TD2H37T-7/X Thermographic Camera is designed to withstand extreme temperatures while consuming low power, making it ideal for industrial applications such as failure detection and process control. Whether you’re in the electric systems industry or involved in industrial automation, the HM-TD2H37T-7/X is a valuable asset.

With the ability to measure temperature at user-defined points, lines, and areas, HIKMICRO HM-TD2H37T-7/X Thermographic Camera offers flexibility and precision in temperature monitoring. The camera’s color alarm system allows for easy identification of temperature variations, whether it’s above, between, or below the desired range.

optional air cooling and liquid cooling housing, let HIKMICRO HM-TD2H37T-7/X Thermographic Camera can handle high ambient temperature environments with ease. Its robust construction, IP67 protection level, and durable design ensure reliable performance in demanding conditions.

Experience real-time temperature data reporting and take control of your thermal monitoring needs with the HIKMICRO HM-TD2H37T-7/X Thermographic Camera. Buy the HM-TD2H37T-7/X today and unlock a world of possibilities in temperature measurement and analysis.

HIKMICRO HM-TD2H37T-7/X Specifications

  • Resolution: 384 × 288
  • Object temperature range: -20 °C to 150 °C (-4 °F to 302 °F), 0 °C to 550 °C (32 °F to 1022 °F)
  • Working Temperature/Humidity: 0 °C to 200 °C (32 °F to 392 °F), 95% or less
  • Power Supply: 10-30 VDC, Max. 2.3 W
  • Protection Level: IP67
  • Dimensions: 352.5 mm × 170.5 mm × 138 mm (13.88″ x 6.71″ x 5.43″)
  • Weight: Approx. 6520 g (14.37 lb)
  • Main Stream Video: 50 fps (384 × 288)
  • Video Compression: H.264/MJPEG
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 384 x 288
  • Pixel Pitch: 17 μm
  • Spectral Range: 8 μm to 14 μm
  • NETD: ≤ 35 mK (@25° C, F# = 1.0)
  • Focal Length: 6.5 mm
  • Focus Mode: Athermalized
  • IFOV: 2.62 mrad
  • Aperture: F1.0
  • Field of View: 60° × 44.1° (H × V)
  • Focusing Distance: 0.6 m
  • Digital Zoom: 2×, 4×

Consult the official HM-TD2H37T-7/X datasheet menu to obtain comprehensive details.
