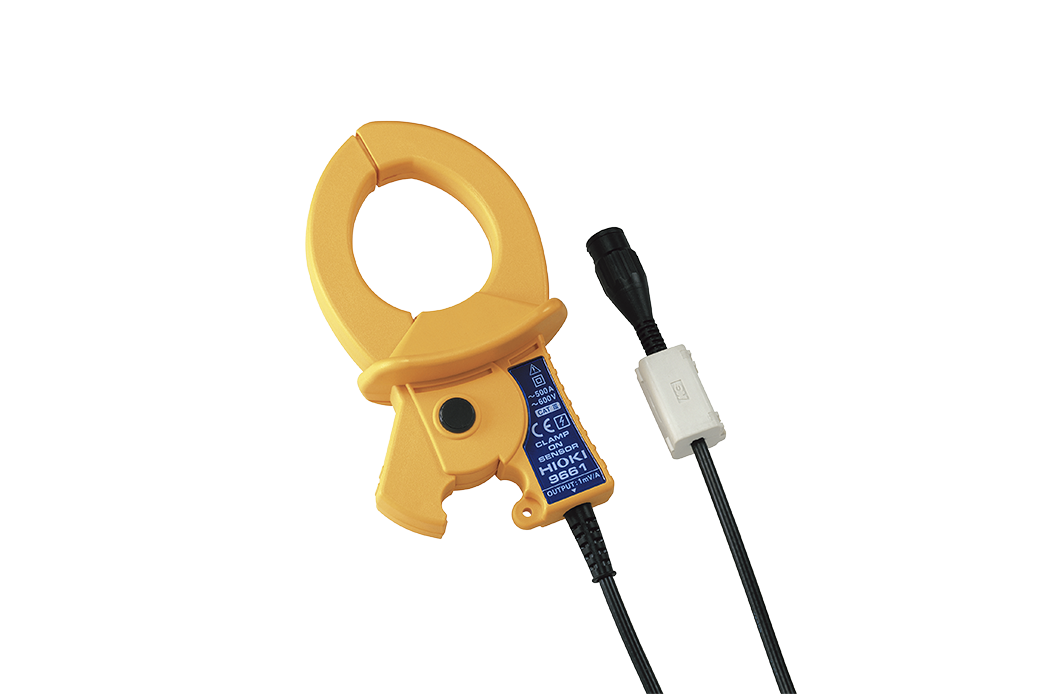

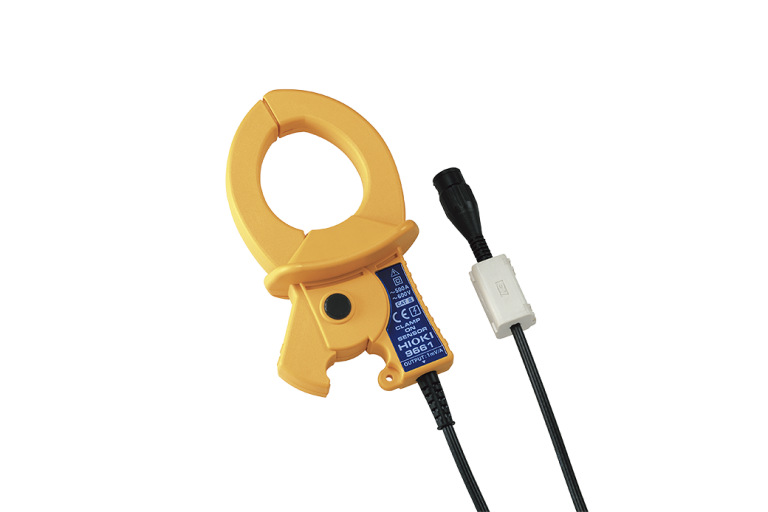

Hioki 9661 Clamp On Sensor — High Accuracy Current Measurement

At mme-ae, we offer the Hioki 9661 Clamp On Sensor, a high-accuracy current measurement tool designed for electricians and professionals in the electrical industry. This sensor is perfect for measuring current in a variety of applications, from residential to commercial and industrial settings.

With its high accuracy and reliability, the Hioki 9661 is an essential tool for any electrician’s toolkit. Whether you’re working on a new installation or troubleshooting an existing system, this sensor provides accurate and reliable measurements.

Hioki 9661 Key Features

The Hioki 9661 Clamp On Sensor features a range of specifications that make it an ideal choice for current measurement. Some of its key features include:

• Rated measurement current: 500 A AC
• Max. measurement current: Continuous 550 A (45 to 66 Hz)
• Output rate: 1 mV AC/ A
• Amplitude accuracy: ±0.3% rdg. ±0.01% f.s.
• Phase accuracy: ±0.5° (45 Hz to 5 kHz)
• Measurable conductor diameter: φ 46 mm (1.81 in) or less
• Operating temperature and humidity: 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation)

Who Needs the Hioki 9661?

The Hioki 9661 Clamp On Sensor is designed for electricians and professionals in the electrical industry who require accurate and reliable current measurements. Whether you’re working on a new installation or troubleshooting an existing system, this sensor provides the accuracy and reliability you need.

At Mohammad Mahdi Electronics, we understand the importance of accurate current measurements in the electrical industry. That’s why we offer the Hioki 9661 Clamp On Sensor, a high-accuracy current measurement tool that’s designed to meet the needs of professionals like you.

Hioki 9661 Applications

The Hioki 9661 Clamp On Sensor is suitable for a variety of applications, including:

Why Buy Hioki 9661 from mme-ae?

Read more in our top clamp meters for electricians. See other Hioki instruments.

At mme-ae, we offer the Hioki 9661 Clamp On Sensor at a competitive price, along with excellent customer service and support. Whether you’re looking for a high-accuracy current measurement tool for your next project or just need a reliable sensor for your toolkit, we’ve got you covered.

For more information on the Hioki 9661 Clamp On Sensor or to place an order, please visit our current accessories category or contact us directly.

Hioki 9661 Specifications
