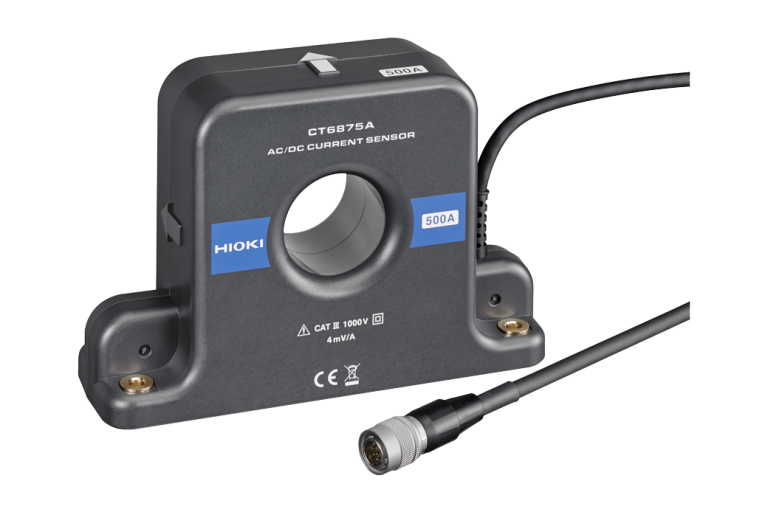

Hioki CT6875A AC/DC Current Sensor — High-Accuracy Measurement

At Mohammad Mahdi Electronics, we offer the Hioki CT6875A AC/DC Current Sensor, designed for high-accuracy measurement in various applications. This sensor is ideal for electricians and professionals who require precise current measurement.

The Hioki CT6875A features a rated current of 500 A AC/DC and a max. allowable input of up to ±1500 Apeak (design value) allowed at 40°C or less for 20 ms or less. Its frequency bandwidth ranges from DC to 2 MHz (CT6875A) and DC to 1.5 MHz (CT6875A-1).

Hioki CT6875A Key Features

The Hioki CT6875A offers several key features, including:

• Rated current: 500 A AC/DC
• Max. allowable input: Up to ±1500 Apeak (design value) allowed at 40°C or less for 20 ms or less
• Frequency bandwidth: DC to 2 MHz (CT6875A), DC to 1.5 MHz (CT6875A-1)
• Basic accuracy: ±0.04 % rdg. ±0.008 % f.s.
• Output voltage rate: 4 mV / A rated
• Max. rated voltage to earth: 1000 V AC/DC (50/60 Hz, CAT III)
• Core diameter: φ 36 mm (1.42 in)
• Operating temperature, humidity: -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)

Who Needs the Hioki CT6875A?

The Hioki CT6875A is ideal for electricians and professionals who require precise current measurement in various applications, including:

Electrical power distribution and transmission

Industrial automation and control

Research and development

Hioki CT6875A Applications

The Hioki CT6875A can be used in a variety of applications, including:

Why Buy Hioki CT6875A from mme-ae?

At mme-ae, we offer the Hioki CT6875A AC/DC Current Sensor at a competitive price, with fast shipping and excellent customer service. We also offer a wide range of current sensors and other electrical measurement equipment.

For more information on the Hioki CT6875A or other current sensors, please visit our current accessories category or our top clamp meters for electricians blog.

Hioki CT6875A Specifications
