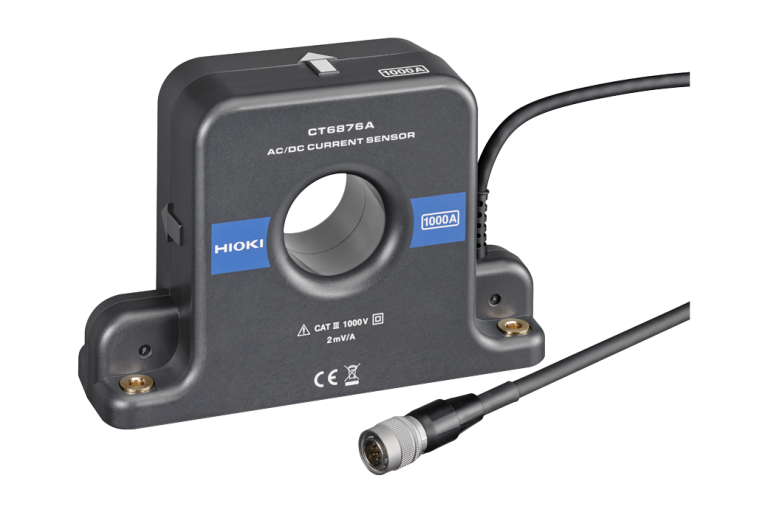

Hioki CT6876A AC/DC Current Sensor — Electrical Measurement Made Easy with MME

At MME, we understand the importance of accurate electrical measurements in various industries. That’s why we’re proud to offer the Hioki CT6876A AC/DC Current Sensor, a reliable and precise tool for measuring current in AC and DC systems.

Whether you’re working on electrical installations, maintenance, or research and development, the Hioki CT6876A is an excellent choice. Its high accuracy and wide frequency bandwidth make it suitable for a variety of applications, from low-frequency measurements to high-frequency signals.

Hioki CT6876A Key Features

The Hioki CT6876A AC/DC Current Sensor boasts several key features that make it stand out from other current sensors on the market. Some of its notable features include:

• Rated current: 1000 A AC/DC
• Max. allowable input: Up to ±1800 Apeak (design value) allowed at 40°C or less for 20 ms or less
• Frequency bandwidth: DC to 1.5 MHz (CT6876A), DC to 1.2 MHz (CT6876A-1)
• Basic accuracy: ±0.04 % rdg. ±0.008 % f.s.
• Output voltage rate: 2 mV / A rated
• Max. rated voltage to earth: 1000 V AC/DC (50/60 Hz, CAT III)
• Core diameter: φ 36 mm (1.42 in)
• Operating temperature, humidity: -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
• Power supply: Power supplied via the Power Analyzer PW8001, PW6001, PW3390, or Sensor Unit CT9555, CT9556, CT9557, or 3ch Current Unit U8977

Who Needs the Hioki CT6876A?

The Hioki CT6876A AC/DC Current Sensor is designed for professionals and hobbyists who require accurate and reliable current measurements in various applications. Some of the industries and professionals who can benefit from this sensor include:

Electrical engineers and technicians

Research and development teams

Maintenance and repair personnel

Electrical contractors

Power system operators

Hioki CT6876A Applications

The Hioki CT6876A AC/DC Current Sensor has a wide range of applications, including:

• Electrical installations
• Maintenance and repair
• Research and development
• Power system operations
• Electrical testing and measurement

Why Buy Hioki CT6876A from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At MME, we offer the Hioki CT6876A AC/DC Current Sensor at competitive prices, along with excellent customer service and support. We understand the importance of accurate electrical measurements and are committed to providing our customers with the best tools and solutions for their needs.

Whether you’re working on a small project or a large-scale industrial application, the Hioki CT6876A is an excellent choice. Its high accuracy and wide frequency bandwidth make it suitable for a variety of applications, from low-frequency measurements to high-frequency signals.

Hioki CT6876A Specifications
