Description

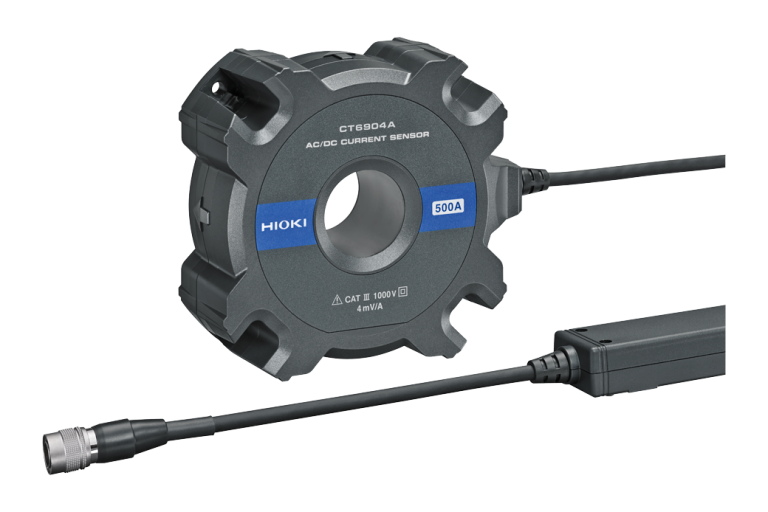

At Mohammad Mahdi Electronics, we offer the Hioki CT6904A-2 AC/DC Current Sensor, a reliable and accurate solution for measuring current in various applications. This sensor is designed to work with compatible Hioki power analyzers, sensor units, or current units, providing a high level of precision and reliability.

With its ability to measure up to 500 A AC/DC, the Hioki CT6904A-2 is ideal for a wide range of applications, including electrical testing, research, and development. Its compact design and durable construction make it easy to integrate into any system, while its high accuracy and reliability ensure precise measurements every time.

Hioki CT6904A-2 Key Features

The Hioki CT6904A-2 features a range of key specifications, including:

Rated current: 500 A AC/DC
Max. allowable input: Within the derating range, however, up to ±1000 A peak is allowable if within 20 ms.
Frequency bandwidth: Amplitude: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1)
Linearity: ±5 ppm Typical (23°C (73°F))
Offset voltage: ±10 ppm Typical (23°C (73°F), no input)
Basic accuracy: DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification)
Output voltage rate: 4 mV / A rated
Max. rated voltage to earth: 1000 V CAT III
Core diameter: φ 32 mm (1.26 in.)

Who Needs the Hioki CT6904A-2?

The Hioki CT6904A-2 is designed for use in a wide range of applications, including:

Electrical testing and measurement

Research and development

Industrial automation

Power generation and distribution

And many more

Hioki CT6904A-2 Applications

The Hioki CT6904A-2 is suitable for a wide range of applications, including:

Electrical testing and measurement

Research and development

Industrial automation

Power generation and distribution

And many more

Why Buy Hioki CT6904A-2 from Mohammad Mahdi Electronics?

Browse our current accessories. Read more in our top clamp meters for electricians.

At Mohammad Mahdi Electronics, we offer the Hioki CT6904A-2 AC/DC Current Sensor at competitive prices, with fast shipping and excellent customer service. Whether you’re looking for a reliable solution for electrical testing and measurement or a high-accuracy sensor for research and development, we have the expertise and resources to help you find the right product for your needs.

For more information on the Hioki CT6904A-2 or to place an order, please contact us today.

Hioki CT6904A-2 Specifications

Rated current	500 A AC/DC
Max. allowable input	Within the derating range, However, up to ±1000 A peak is allowable if within 20 ms. (design value)
Frequency bandwidth	Amplitude: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1) Phase: DC to 1 MHz
Linearity	±5 ppm Typical (23°C (73°F))
Offset voltage	±10 ppm Typical (23°C (73°F), no input)
Basic accuracy	DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification) 45 Hz ≤ f ≤ 65 Hz (Amplitude: ±0.02 % rdg. ±0.007 % f.s., Phase: ±0.08°)
Output voltage rate	4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth	1000 V CAT III
Core diameter	φ 32 mm (1.26 in.)
Operating temperature, humidity	-10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation)
Power supply	Power supplied from compatible Hioki power analyzers, sensor units, or current units.
Max. rated power	7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V)
Dimensions and mass	139 mm (5.47 in.) W × 120 mm (4.72 in.) H × 52 mm (2.05 in.) D CT6904A: 1.05 kg (37 oz.), cable length 3 m (9.84 ft.) CT6904A-1: 1.35 kg (47.6 oz.), cable length 10 m (32.81 ft.)
Included accessories	Instruction Manual ×1, Carrying case ×1, Color labels (for channel identification) ×1, Operating Precautions ×1
