Description

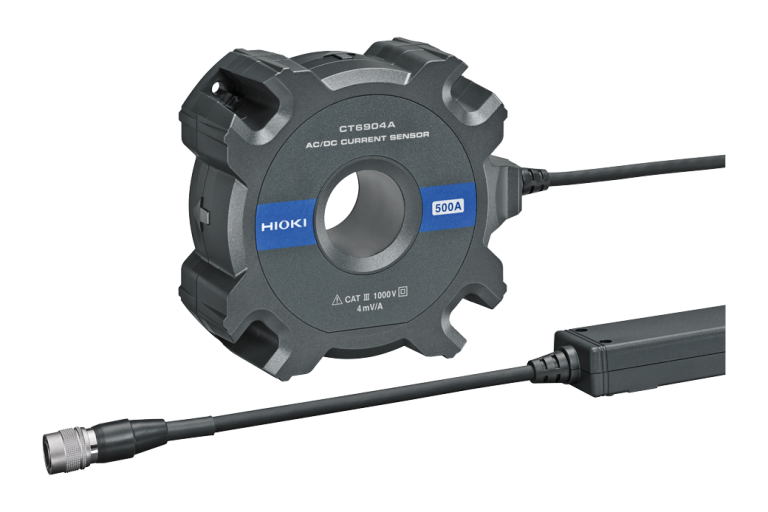

At MME, we offer the Hioki CT6904A-3 AC/DC Current Sensor, a high-accuracy current measurement device designed for a wide range of applications. With its compact design and long cable length, this sensor is perfect for use in industrial, commercial, and residential settings.

The CT6904A-3 features a wide frequency bandwidth, allowing it to accurately measure AC/DC currents up to 4 MHz. Its high-quality construction and easy-to-use design make it a reliable choice for professionals and hobbyists alike.

Hioki CT6904A-3 Key Features

The CT6904A-3 offers a range of key features, including:

Rated current: 500 A AC/DC
Max. allowable input: ±1000 A peak
Frequency bandwidth: DC to 4 MHz
Linearity: ±5 ppm Typical
Offset voltage: ±10 ppm Typical
Basic accuracy: DC (±0.025 % rdg. ±0.007 % f.s.)
Output voltage rate: 4 mV / A rated

Who Needs the Hioki CT6904A-3?

The CT6904A-3 is designed for use in a wide range of applications, including:

Industrial settings, such as manufacturing and power generation

Commercial settings, such as office buildings and retail spaces

Residential settings, such as homes and apartments

The CT6904A-3 is also suitable for use in a variety of industries, including:

Electrical engineering

Power systems

Control systems

Hioki CT6904A-3 Applications

The CT6904A-3 can be used in a variety of applications, including:

Measuring AC/DC currents in industrial and commercial settings

Monitoring power consumption in residential settings

Testing and measuring electrical systems

Why Buy Hioki CT6904A-3 from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT6904A-3 at a competitive price, with fast shipping and excellent customer service. We also offer a range of accessories and support services to ensure that you get the most out of your purchase.

Whether you’re a professional or a hobbyist, the CT6904A-3 is a reliable and accurate choice for your current measurement needs.

Hioki CT6904A-3 Specifications

Rated current	500 A AC/DC
Max. allowable input	Within the derating range, However, up to ±1000 A peak is allowable if within 20 ms. (design value)
Frequency bandwidth	Amplitude: DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1) Phase: DC to 1 MHz
Linearity	±5 ppm Typical (23°C (73°F))
Offset voltage	±10 ppm Typical (23°C (73°F), no input)
Basic accuracy	DC (Amplitude: ±0.025 % rdg. ±0.007 % f.s., No phase specification) 45 Hz ≤ f ≤ 65 Hz (Amplitude: ±0.02 % rdg. ±0.007 % f.s., Phase: ±0.08°)
Output voltage rate	4 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth	1000 V CAT III
Core diameter	φ 32 mm (1.26 in.)
Operating temperature, humidity	-10°C to 50°C (14°F to 122°F) 80% RH or less (with no condensation)
Power supply	Power supplied from compatible Hioki power analyzers, sensor units, or current units.
Max. rated power	7 VA Max. (500 A/55 Hz measurement, with a power supply of ±12 V)
Dimensions and mass	139 mm (5.47 in.) W × 120 mm (4.72 in.) H × 52 mm (2.05 in.) D CT6904A: 1.05 kg (37 oz.), cable length 3 m (9.84 ft.) CT6904A-1: 1.35 kg (47.6 oz.), cable length 10 m (32.81 ft.)
Included accessories	Instruction Manual ×1, Carrying case ×1, Color labels (for channel identification) ×1, Operating Precautions ×1
