Description

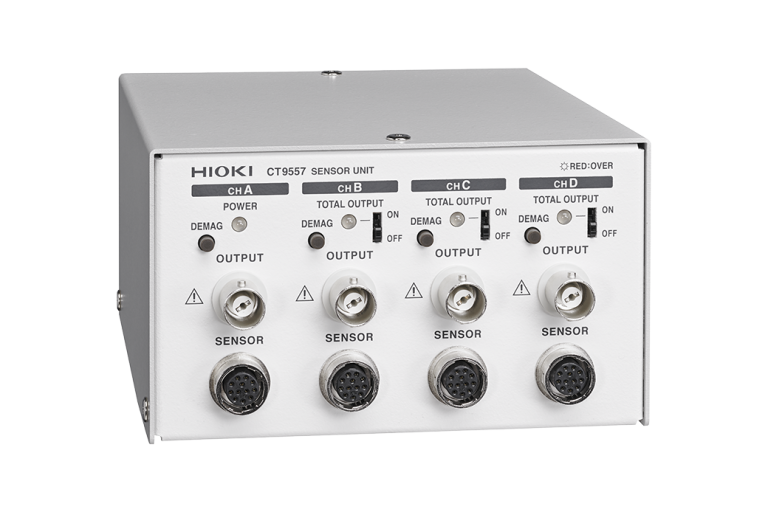

The Hioki CT9557 Sensor Unit is a versatile and reliable solution for electrical measurement applications. With its ability to connect to current sensors equipped with a Hioki ME15W (male) output connector, this unit is perfect for a variety of tasks.

Whether you’re working with electrical systems or testing equipment, the CT9557 Sensor Unit is designed to provide accurate and reliable measurements. Its compact design and user-friendly interface make it easy to use, even in tight spaces.

Hioki CT9557 Key Features

The CT9557 Sensor Unit features a range of key specifications, including:

Connectable current sensors with a Hioki ME15W (male) output connector.
Output Terminal: BNC Terminal.
Output voltage: 2 V f.s.
Total waveform output: 2 V f.s.
Total RMS output: 2 V DC f.s.
Operating temperature range: -10 °C to 50 °C (14 °F to 122 °F).
Power supply: AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA).
Dimensions and mass: 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz).

Who Needs the Hioki CT9557?

The Hioki CT9557 Sensor Unit is designed for use in a variety of applications, including:

Electrical system testing and measurement

Equipment testing and validation

Research and development

The CT9557 Sensor Unit is perfect for anyone who needs accurate and reliable measurements in their work.

Hioki CT9557 Applications

The Hioki CT9557 Sensor Unit can be used in a variety of applications, including:

Electrical system testing and measurement

Equipment testing and validation

Research and development

Power supply testing and measurement

Current measurement and analysis

Waveform analysis and measurement

Why Buy Hioki CT9557 from MME?

Browse our current accessories. Read more in our top clamp meters for electricians.

At MME, we offer the Hioki CT9557 Sensor Unit at a competitive price, with fast shipping and excellent customer service. Whether you’re a professional electrician or a researcher, we have the expertise and knowledge to help you find the right solution for your needs.

With our wide range of products and services, including the Hioki CT9557 Sensor Unit, we can help you achieve your goals and get the job done right. Contact us today to learn more about our products and services.

Hioki CT9557 Specifications

Connectable current sensors	Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal	BNC Terminal

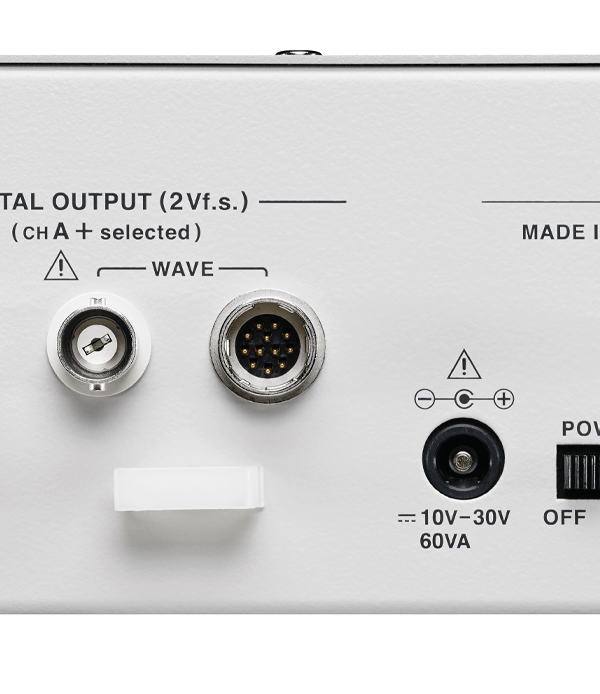

Output voltage	Waveform output/ Total waveform output: 2 V f.s. Total RMS output: 2 V DC f.s. Waveform output (4CH), total waveform output and total RMS output can be used simultaneously
Output resistance	50 Ω
Operating temperature range	-10 °C to 50 °C (14 °F to 122 °F)
Power supply	AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA) External power supply (10 to 30 V DC; maximum rated power: 60 VA)
Dimensions and mass	116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz)
Included accessories	AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1
