Description

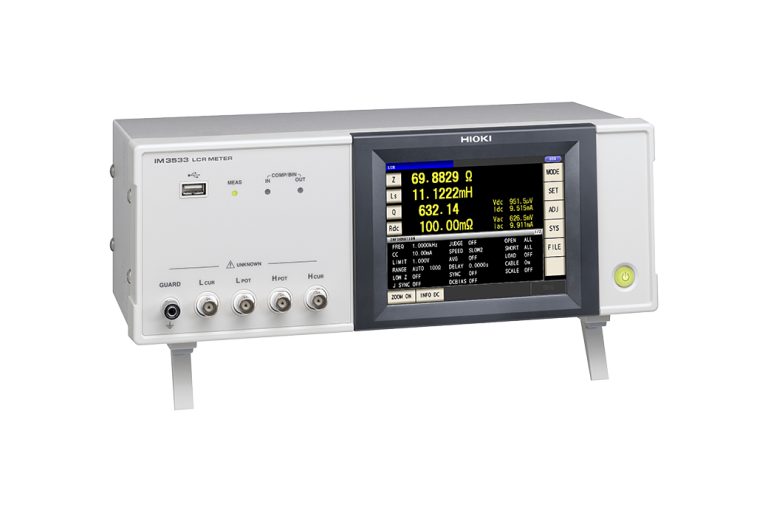

At Mohammad Mahdi Electronics, we offer the Hioki IM3533-01 LCR Meter, a precision instrument designed for electronics professionals. This LCR Meter provides advanced measurement capabilities, including LCR, Transformer testing, and Continuous testing.

With its wide range of measurement parameters, including Z, Y, θ, X, G, B, Q, Rdc, Rs, Rp, Ls, Lp, Cs, Cp, D, N, M, ΔL, and T, the Hioki IM3533-01 is ideal for a variety of applications, from electronics testing to quality control.

Hioki IM3533-01 Key Features

The Hioki IM3533-01 offers a range of key features, including:

Measurement modes: LCR, Transformer testing, and Continuous testing
Measurement parameters: Z, Y, θ, X, G, B, Q, Rdc, Rs, Rp, Ls, Lp, Cs, Cp, D, N, M, ΔL, T
Measurement range: 100 mΩ to 100 MΩ, 10 ranges
Displayable range: ± (0.00000 to 9.99999G)
Basic accuracy: Z : ±0.05% rdg., θ: ±0.03°
Measurement frequency: 1 mHz to 200 kHz
Measurement signal level: 5 mV to 5 Vrms, 1 mVrms steps
Output impedance: 100 Ω, Low impedance high repeatability mode: 25 Ω
Display: 5.7-inch touch-screen color TFT
Measurement time: 2 ms

Who Needs the Hioki IM3533-01?

The Hioki IM3533-01 is designed for electronics professionals who require a high-precision LCR Meter for a variety of applications, including:

Electronics testing and quality control

Research and development

Manufacturing and production

The Hioki IM3533-01 is ideal for anyone who needs a reliable and accurate LCR Meter for their work.

Hioki IM3533-01 Applications

The Hioki IM3533-01 is suitable for a wide range of applications, including:

Electronics testing and quality control
Research and development
Manufacturing and production
Automotive electronics
Aerospace electronics
Medical electronics

Why Buy Hioki IM3533-01 from Mohammad Mahdi Electronics?

Browse our LCR meters. Read more in our how to choose the right meter. See other Hioki instruments.

At Mohammad Mahdi Electronics, we offer the Hioki IM3533-01 LCR Meter at competitive prices, along with excellent customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

We also offer a range of accessories and spare parts for the Hioki IM3533-01, including power cords, instruction manuals, and more.

Hioki IM3533-01 Specifications

	IM3533	IM3533-01
Measurement modes	LCR (Measurement with single condition), Transformer testing (N, M, ΔL), Continuous testing(Continuous measurement under saved conditions) (LCR mode)	LCR (Measurement with single condition), Transformer testing (N, M, ΔL), Analyzer (sweep testing), Continuous Testing (LCR/Analyzer mode)
Measurement parameters	Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), N, M, ΔL, T
Measurement range	100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Displayable range	Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999) Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%), T: -10.0°C to 99.9°C
Basic accuracy	Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency	1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement signal level	[Normal mode] V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps CC mode: 10 μA to 50 mArms, 10 μArms steps [Low impedance high repeatability mode] V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps CC mode: 10 μA to 100 mArms, 10 μArms steps
Output impedance	Normal mode: 100 Ω, Low impedance high repeatability mode: 25 Ω
Display	5.7-inch touch-screen color TFT, display can be set to ON/OFF
Measurement time	2 ms (1 kHz, FAST, display OFF, representative value)
Functions	DC bias measurement, DC resistance temperature compensation (converted reference temperature display), Comparator, BIN measurement (classify function), Panel loading/saving, Memory function

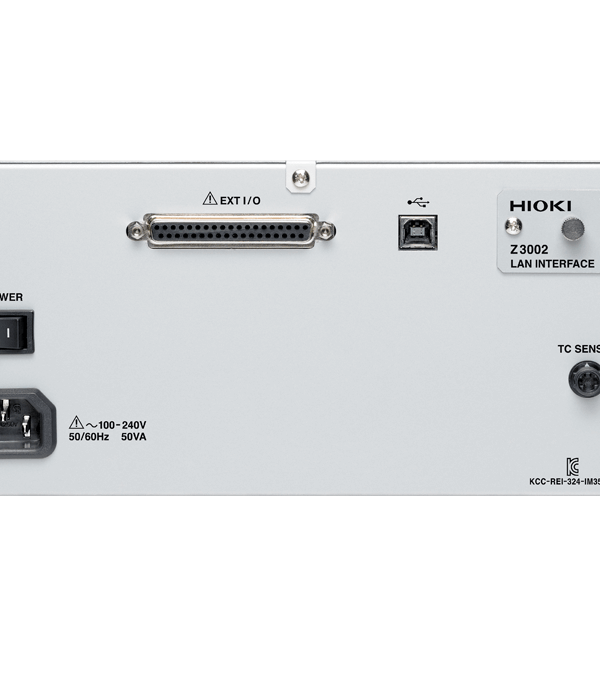

Interfaces	EXT I/O (Handler), USB communication (high-speed), USB memory Optional: Choose 1 from RS-232C, GP-IB, or LAN
Power supply	100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass	330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
Included accessories	Power cord × 1, Instruction manual × 1
