Description

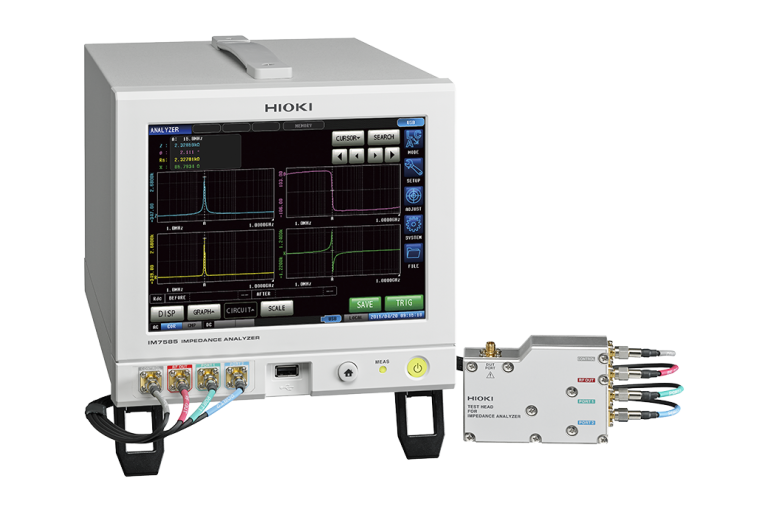

The Hioki IM7585-01 Impedance Analyzer is a powerful tool for measuring impedance in a wide range of applications. With its LCR mode and Analyzer mode, you can perform comprehensive impedance analysis and Continuous measurement mode for real-time monitoring.

At Mohammad Mahdi Electronics, we understand the importance of accurate impedance measurement. That’s why we offer the Hioki IM7585-01 with its advanced features and high accuracy. Whether you’re working in R&D, manufacturing, or quality control, this impedance analyzer is an essential tool for your team.

Hioki IM7585-01 Key Features

The Hioki IM7585-01 offers a range of key features that make it an ideal choice for impedance measurement. These include:

Measurement modes: LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters: Z, Y, θ, Rs, Rp, X, G, B, Cs, Cp, Ls, Lp, D, and Q
Measurable range: 100 mΩ to 5 kΩ
Display range: 0.00 m to 9.99999 GΩ
Basic accuracy: ±0.65 % rdg. for Z and ±0.38° for θ
Measurement frequency: 1 MHz to 1.3 GHz (100 kHz setting resolution)

Who Needs the Hioki IM7585-01?

The Hioki IM7585-01 is designed for a wide range of applications, including:

Research and development teams who need to measure impedance in various materials and components

Manufacturing teams who require accurate impedance measurement for quality control

Engineers who need to analyze impedance in electronic circuits and systems

Scientists who study the properties of materials and their impedance characteristics

Hioki IM7585-01 Applications

The Hioki IM7585-01 has a wide range of applications, including:

Electronic circuit analysis
Material science research
Quality control in manufacturing
Research and development in various fields

Why Buy Hioki IM7585-01 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki IM7585-01 with its advanced features and high accuracy. Whether you’re working in R&D, manufacturing, or quality control, this impedance analyzer is an essential tool for your team. We also offer LCR meters and multimeters for your measurement needs.

Hioki IM7585-01 Specifications

Measurement modes	LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters	Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range	100 mΩ to 5 kΩ
Display range	Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy	Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency	1 MHz to 1.3 GHz (100 kHz setting resolution)
Measurement signal level	Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms
Output impedance	50 Ω (at 10 MHz)
Display	8.4-inch color TFT with touch screen
Measurement speeds	FAST: 0.5 ms (Analog measurement time, typical value)
Functions	Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation

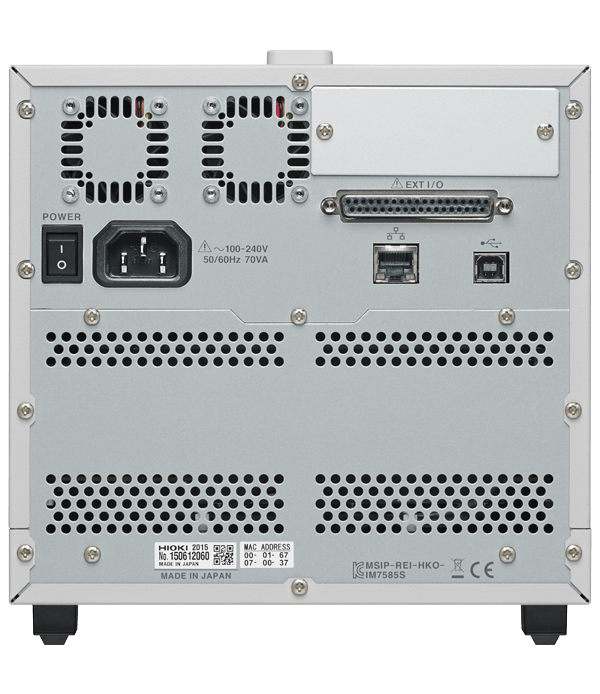

Interfaces	EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply	100 to 240 V AC, 50/60 Hz, 70 VA max.

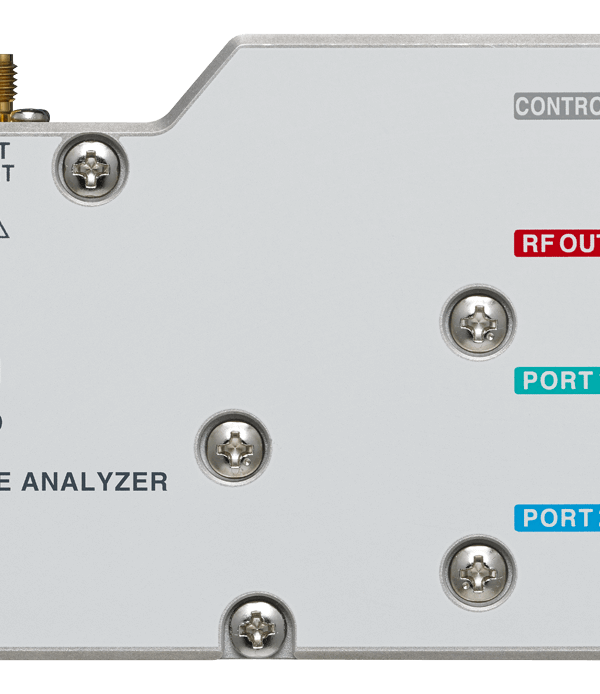

Dimensions and mass	Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz) Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)
Included accessories	Test head ×1, Connection cable ×1, Instruction manual ×1, Power cord ×1
