EXTECH LCR200 Passive Component LCR Meter

EXTECH LCR200 Passive Component LCR Meter

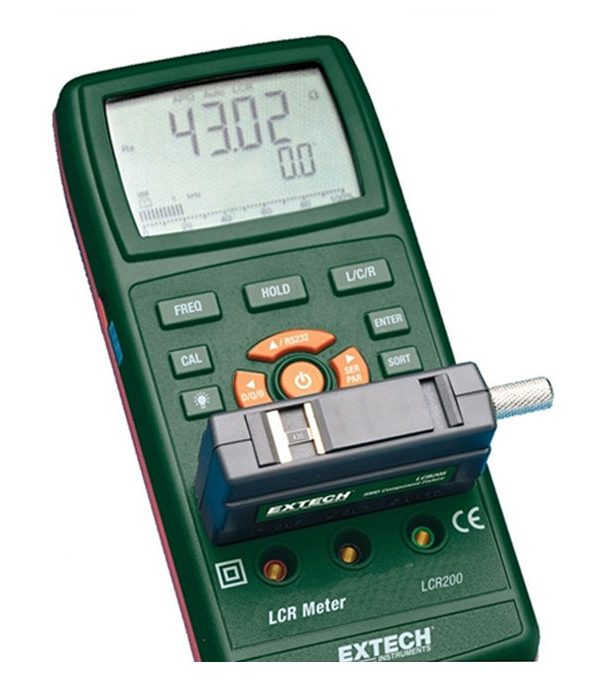

The Extech LCR200 is a passive component LCR meter. Discover the tremendous value with a range of features that help this meter provide the precise measurements you need. See the simultaneous 20,000/2,000 count display of the primary parameter on the high-contrast backlit display. You can set Hi/Lo limits using absolute values or percentages.

Open and Short Zero removes unwanted stray impedances from the measurement. Use the built-in test fixture or external test leads (included). The LCR200 has an Auto Power Off function that can also be disabled and a low battery indicator to alert you when to replace the batteries. Complete with test leads and a 9V battery.

EXTECH LCR200 Key Features

• Five test frequencies
• Set Hi/Lo limits using absolute values or percentage limits
• Relative mode function
• Parallel or Series equivalent circuit
• Auto power off, Low battery, and over-range indicators
• Built-in test fixture or use external test leads

EXTECH LCR200 Specifications

• Resistance 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ ±(0.5%rdg + 5 digits)
• DF (with C) 0.000 to 1999
• Q 0.000 to 1999
• Phase ±90°
• Test Frequency 100Hz/120Hz/1kHz/10kHz/100kHz
• Dimensions 7.6 x 3.5 x 1.6″ (193 x 88 x 41mm)
• Weight 14.8oz (420g)
• You can see the full information about this device check Extech lcr200 manual in the package.
