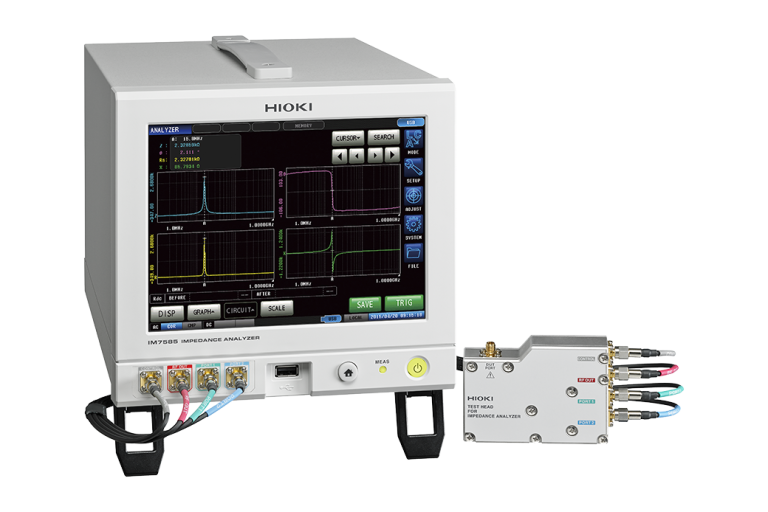

Welcome to the Hioki IM7585-02 Impedance Analyzer, a cutting-edge tool designed for comprehensive impedance measurement. At mme-ae, we understand the importance of accurate impedance analysis in various industries, and this analyzer is specifically designed to meet those needs.

With its LCR mode and Analyzer mode, the Hioki IM7585-02 offers a wide range of measurement capabilities, including Continuous measurement mode for real-time data analysis. The analyzer also features a variety of measurement parameters, including Z, Y, θ, Rs, Rp, X, G, B, Cs, Cp, Ls, Lp, D, and Q.

Hioki IM7585-02 Key Features

The Hioki IM7585-02 Impedance Analyzer boasts a range of key features that make it an ideal choice for impedance measurement. Some of its key features include:

• Measurement modes: LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode
• Measurement parameters: Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
• Measurable range: 100 mΩ to 5 kΩ
• Display range: Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
• Basic accuracy: Z: ±0.65 % rdg. θ: ±0.38°
• Measurement frequency: 1 MHz to 1.3 GHz (100 kHz setting resolution)
• Measurement signal level: Power: -40.0 dBm to +1.0 dBm Voltage: 4 mV to 502 mVrms Current: 0.09 mA to 10.04 mArms

Who Needs the Hioki IM7585-02?

The Hioki IM7585-02 Impedance Analyzer is designed for a wide range of applications, including research and development, quality control, and production testing. Its advanced features and high accuracy make it an ideal choice for industries such as electronics, automotive, and aerospace.

Whether you’re a researcher, engineer, or quality control specialist, the Hioki IM7585-02 Impedance Analyzer is the perfect tool for your impedance measurement needs.

Hioki IM7585-02 Applications

The Hioki IM7585-02 Impedance Analyzer has a wide range of applications, including:

• Research and development
• Quality control
• Production testing
• Electronics
• Automotive
• Aerospace

Why Buy Hioki IM7585-02 from mme-ae?

Browse our LCR meters. Read more in our how to choose the right meter.

At mme-ae, we offer the Hioki IM7585-02 Impedance Analyzer at a competitive price, along with excellent customer service and support. Our team of experts is always available to help you with any questions or concerns you may have.

Whether you’re looking for a new impedance analyzer or need to replace an existing one, we’ve got you covered. Contact us today to learn more about the Hioki IM7585-02 Impedance Analyzer and how it can benefit your business.

Hioki IM7585-02 Specifications
