Hioki MR8741 Memory HiCorder - 16 Channel High-Speed Recorder

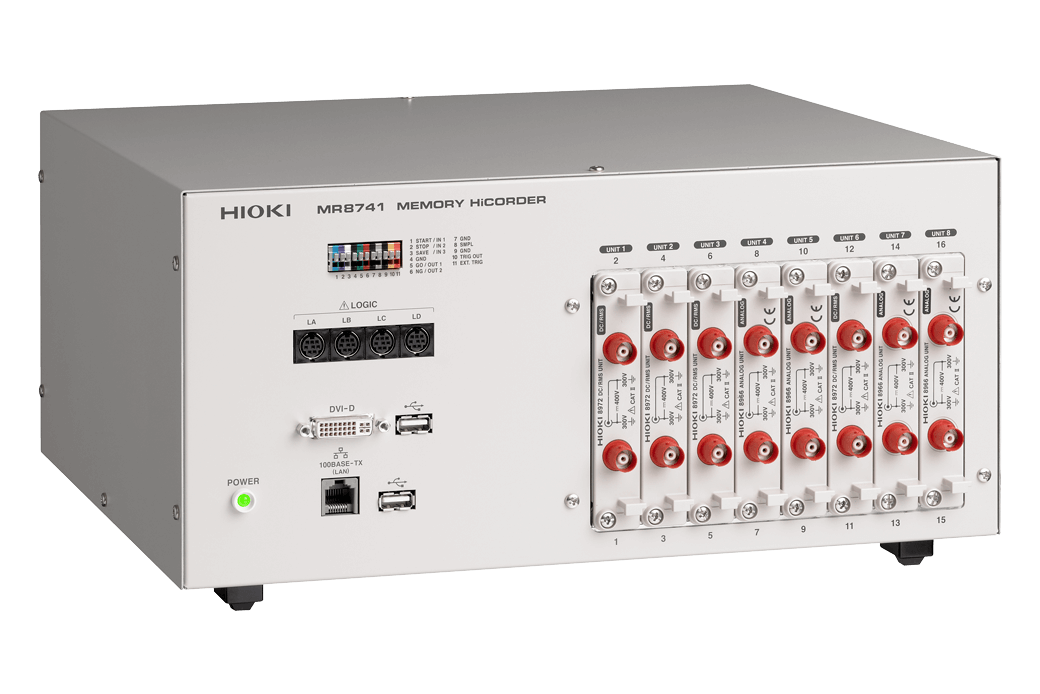

The Hioki MR8741 Memory HiCorder is a premium 16-channel measurement instrument designed for high-speed recording and comprehensive analysis of electrical signals. Featuring 8 expansion slots, this versatile recorder can handle analog and logic signals simultaneously, making it ideal for complex testing environments. The MR8741 supports various measurement units and offers flexible time axis settings from 5 microseconds to 5 minutes per division, ensuring you capture the precise data you need for any application.

With a substantial memory capacity of 16 MW per channel (totaling 256 MW installed), the MR8741 allows for extensive data logging without frequent saving. The instrument features DC to 5 MHz frequency characteristics when using the 8966 unit, providing wide bandwidth for high-frequency measurements. Data can be stored on USB 2.0 memory sticks and transferred via LAN interface, with the unit supporting DHCP, DNS, FTP, and HTTP server functions for network integration.

Hioki MR8741 Key Features

The Hioki MR8741 Memory HiCorder offers comprehensive measurement capabilities with its 16-channel analog input and expandable logic options. When using the built-in logic input with the 8973 logic unit, you can add up to 64 logic channels, though this configuration uses 3 of the 8 available slots. The instrument features 12 voltage measurement ranges from 5 mV to 20 V/div (with 8966) or 5 ranges from 5 mV to 50 V/div (with MR8990), providing flexibility for various signal amplitudes.

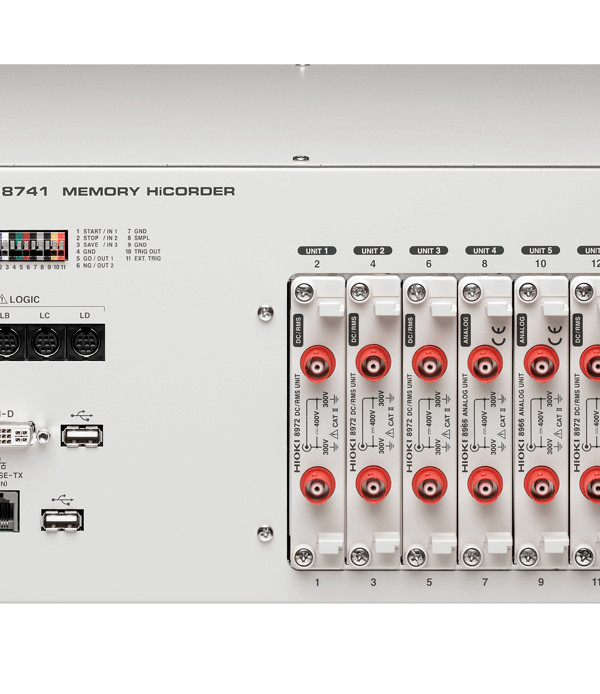

• Max. Number of channels: 16 ch analog + 16 ch logic, or 10 ch analog + 64 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3)
• Number of slots: 8 slots (Max. 8) [Limitation on number of slots] cannot use Current Unit 8971 When using the Logic Unit 8973: Max. 3
• Number of logic channels: 16 ch logic (Logic probe terminal GND share a common GND with chassis.) on condition that DVM Unit MR8990 is used on slots 1 and 2, cannot use built-in logic input [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1 and 2 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1 and 2
• Measurement ranges: 5 mV to 20 V/div, 12 ranges, resolution: 1/100 of range (when using 8966) 5 mV to 50 V/div, 5 ranges, resolution: 1/50,000 of range (when using MR8990)
• Max. allowable input: 400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage)
• Max. rated voltage to earth: 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
• Frequency characteristics: DC to 5 MHz (-3 dB, when using 8966)
• Time axis: 5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000
• Measurement functions: Memory (high-speed recording), FFT, Recorder
• Memory capacity: 16 MW/ch (fixed), total of 256 MW installed
• Removable storage: USB memory stick (USB 2.0)
• Display: None (1 digital DVI terminal, 800 × 600 dots)
• External interfaces: [LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation)
• Power supply: 100 to 240 V AC, 50/60 Hz (120 VA max.)
• Dimensions and mass: 350 mm (13.78 in)W × 160 mm (6.30 in)H × 320 mm (12.60 in)D, 5.4 kg (190.5 oz) (main unit only)
• Included accessories: Instruction manual ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1
