Testo 760-2 Digital multimeter
Short Description:
Testo 760-2 Key features
- Easy, reliable work thanks to automatic measurement parameter detection
- Current measurement in the µA range
- True root mean square measurement – TRMS
- Low-pass filter for accurate measurement results on frequency converter-controlled motors
Product purchase
AED 625 (excl.VAT)
13
People watching this product now!
Terms of sending goods ›
Description

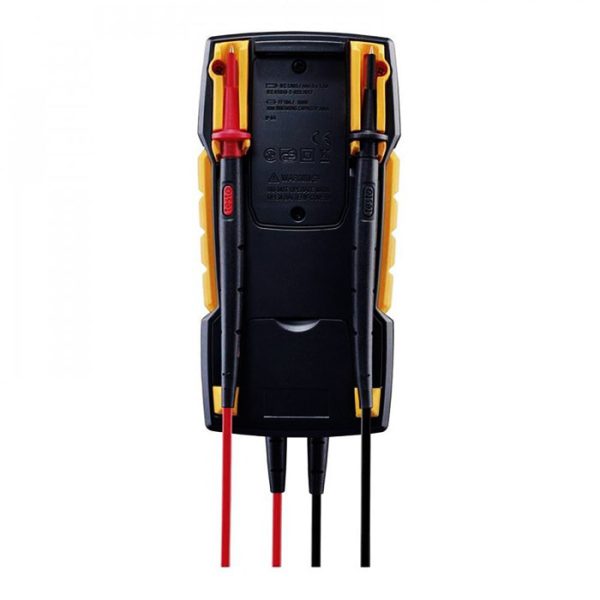

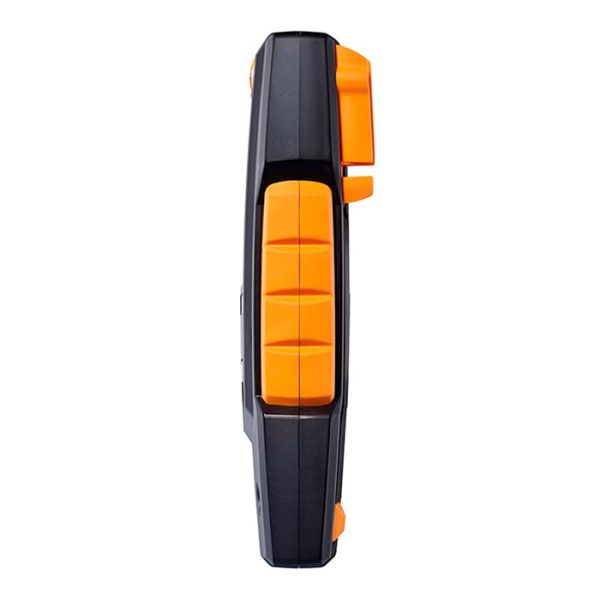

Testo 760-2 Digital multimeter
Order-Nr. 0590 7602
With the Testo 760-2 digital handheld multimeter, measuring electrical characteristics is now simpler and more accurate than ever. Unlike other multimeters, the testo 760-2 uses the socket assignment to automatically detect the proper measurement parameter, eliminating the possibility of any potentially hazardous incorrect settings.
It is not operated conventionally by a dial but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.
The Testo 760-2 digital multimeter has the most important functions for measuring current, voltage, and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. The integrated low-pass filter achieves more accurate measurement results on frequency converter-controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters. Contact our experts to get information about the Testo 760-2 price in MME. We offer various models of testo multimeters and other global brands on the MME.
Similar Products
The Testo 760-3 and 760-1 are both models of digital multimeters manufactured by Testo, a leading company in measurement technology. The Testo 760-3 is a high-performance multimeter with a wide range of functions, making it suitable for professional electricians and technicians. On the other hand, the Testo 760-1 is a more compact and cost-effective option, ideal for beginners or occasional users.
Testo 760-2 Digital Multimeter Specifications
- Temperature – TC Type K: -20 to +500 °C
- DC /AC voltage: 0.1 to 600 V
- DC / AC: 0.1 μA to 10 A
- Resistance: 0.01 to 60.00 MOhm
- Capacitance: 0.001 nF to 30000 μF
- Frequency: 0.001 Hz to 30.00 MHz
- Protection class: IP64
- Standards: EN 61326-1; EN 61010-2-033; EN 61140
- Battery type : 3 AAA micro batteries
- Standards: EN 61326-1; EN 61010-2-033; EN 61140
- Weight: 340 g
- Dimensions : 167 x 85 x 45 mm
Additional information
| AC voltage range/resolution/accuracy | |
|---|---|
| DC voltage range/resolution/Accuracy | |
| AC current range/resolution/Accuracy | |
| DC current range/resolution/Accuracy |
0.1µA to 10A/Basic A 0.1 % |
| Resistance Range/resolution/Accuracy |
0.1 to 60MΩ |
| Capacitance Range/resolution/Accuracy |
0.001nF to 30,000µF |
| Frequency range/resolution/Accuracy |
0.001 Hz to 30 MHz |
| Temperature range/resolution/ Accuracy |
-20 to +500°C |
| Dimensions |
167 x 84 x 45 mm |
| Weight |
340g |
| IP rating |
IP64 |
| Operating temperature |
-10 to +50 °C |
| Storage temperature |
-15 to +60 °C |
| Continuity test |
√ |
| Diode test |
√ |
| Display-count |
6000 counts |
