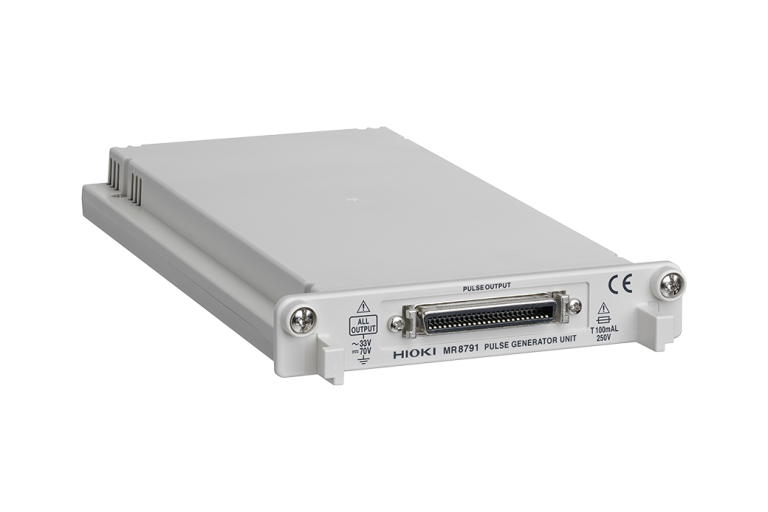

At MME, we offer the Hioki MR8791 Pulse Generator Unit for a wide range of applications. This unit is designed to provide 8 channels for simultaneous pulse generation, making it ideal for complex testing and measurement tasks.

The MR8791 features a D-sub, half-pitch, 50-pin connector, allowing for flexible output options and easy integration into your system.

The Hioki MR8791 offers a range of key features, including:

8 channels for simultaneous pulse generation
D-sub, half-pitch, 50-pin connector
30 V rms AC or 60 V DC maximum rated voltage to ground
10 Hz to 120 kHz read frequency
2048 logic patterns
0.1 Hz to 20 kHz pulse output frequency
0.1% to 99.9% duty cycle
0 V to 5 V output voltage level
50 V absolute maximum rated voltage for collector/emitter

The Hioki MR8791 is designed for a wide range of applications, including:

Testing and measurement tasks that require simultaneous pulse generation

Complex systems that require flexible output options

Applications that require precise control and versatility

The Hioki MR8791 is suitable for a variety of applications, including:

Testing and measurement

Research and development

Quality control

Education and training

Browse our recorders and dataloggers. Read more in our measurement guides. See other Hioki instruments.

At mme-ae, we offer the Hioki MR8791 Pulse Generator Unit at competitive prices, along with excellent customer service and support.

Our team of experts can help you choose the right product for your needs and provide guidance on how to use it effectively.

Output terminal

Number of channels: 8, Connector: D-sub, half-pitch, 50-pin
Max. rated voltage to ground: 30 V rms AC or 60 V DC (between unit and output channels)
Logic output/Open collector output

Output mode 1

Pattern output: Read frequency: 10 Hz to 120 kHz, 2048 logic patterns
Pulse output: Frequency 0.1 Hz to 20 kHz, Duty 0.1% to 99.9%

Output mode 2

Logic output: Output voltage level: 0 V to 5 V
(H level: 3.8 V or more, L level: 0.8 V or less)
Open collector output: Absolute maximum rated voltage for collector/emitter: 50 V
Overcurrent protection: 100 mA

Self-test function

Dimensions and mass

106 mm (4.17 in.) W × 19.8 mm (0.78 in.) H × 196.5 mm (7.74 in.) D, 230 g (8.1 oz.)

Included accessories
